CE Standard Water Chillers
DEGONG
Product Description
| Air-Cooled Scroll Chiller | Specifications | ||||||||||||
| SKA-Model | 30DX | 30TX | 40TX | 45TX | |||||||||
| Refrigerant | R22 | R407C | R134a | R22 | R407C | R134a | R22 | R407C | R134a | R22 | R407C | R134a | |
| Rated Cooling Capacity | ×1000kcal/h | 67.4 | 64 | 44.2 | 69.3 | 65.7 | 44.4 | 78.9 | 75.6 | 51.6 | 101.1 | 96 | 66.3 |
| KW | 78.4 | 74.4 | 51.4 | 80.4 | 76.5 | 51.6 | 91.8 | 87.9 | 60 | 117.6 | 111.6 | 77.1 | |
| Power Supply | 380V-3N-50Hz | ||||||||||||
| Input power KW | 29 | 28.8 | 21.2 | 29.5 | 29.2 | 22.3 | 32.5 | 32.2 | 24.1 | 42.4 | 42.1 | 30.7 | |
| Complete current A | 56.9 | 59.1 | 45.9 | 55.2 | 55.8 | 48.9 | 59.4 | 59.7 | 46.8 | 83.1 | 86.4 | 66.6 | |
| Protection Device | Phase sequence protection,overcurrent protection,Anti frozen protection,high and low voltage protection,Gas outlet temperature protection,water flow protection | ||||||||||||
| Compressor | Input power KW | 23.8 | 23.6 | 16 | 23.4 | 23.1 | 16.2 | 26.4 | 26.1 | 18 | 35.7 | 35.4 | 24 |
| current A | 46.4 | 48.6 | 35.4 | 42.6 | 43.2 | 36.3 | 46.8 | 47.1 | 34.2 | 69.6 | 72.9 | 53.1 | |
| chilled water pump | Input power KW | 2.2 | 2.2 | 2.2 | 2.2 | ||||||||
| current A | 4.5 | 4.5 | 4.5 | 4.5 | |||||||||
| Number of Refrigeration Circuit | 2 | 3 | |||||||||||
| Capacity Control % | 0-50-100 | 0-33-66-100 | |||||||||||
| Condenser | Finned Type | ||||||||||||
| Cooling fan | Input power KW | 3 | 3.9 | 3.9 | 4.5 | ||||||||
| current A | 6 | 8.1 | 8.1 | 9 | |||||||||
| Evaporator | Shell-and-Tube Type | ||||||||||||
| Dia.of pipe to Evaporator(inch) | 2-1/2″ | 2-1/2″ | 2-1/2″ | 2-1/2″ | |||||||||
| Chilled Water Flow L/min | 224.8 | 213.2 | 147.4 | 230.4 | 219.3 | 147.9 | 263.1 | 252 | 172.2 | 337.2 | 319.8 | 221.1 | |
| Running noise dBA | 69 | 68 | 70 | 71 | |||||||||
| Tank Volume L | 210 | 260 | 260 | 260 | |||||||||
| Total Weight kg | 790 | 910 | 1020 | 1130 | |||||||||
| Outline dimension (L*W*H)mm | 2050*1100*1650 | 2960*1150*1750 | 2960*1150*1750 | 2960*1150*1750 | |||||||||

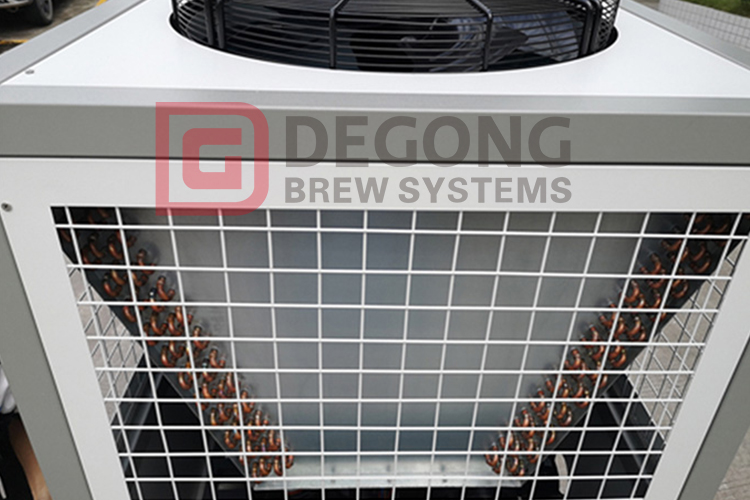

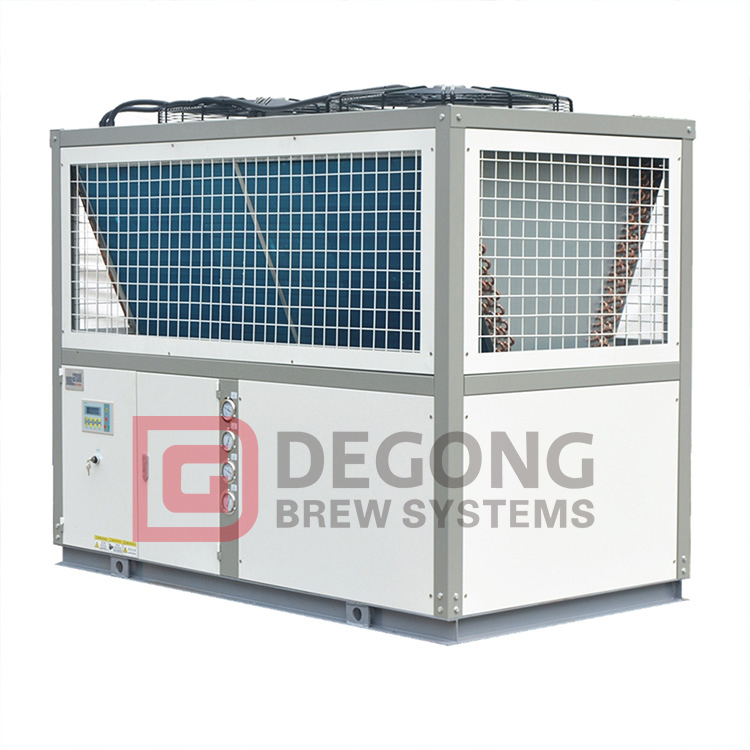

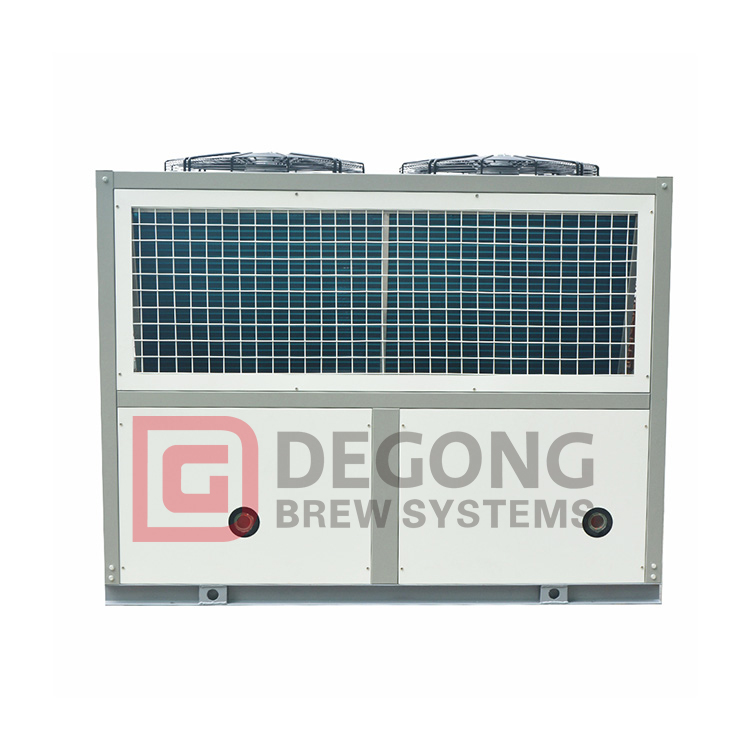

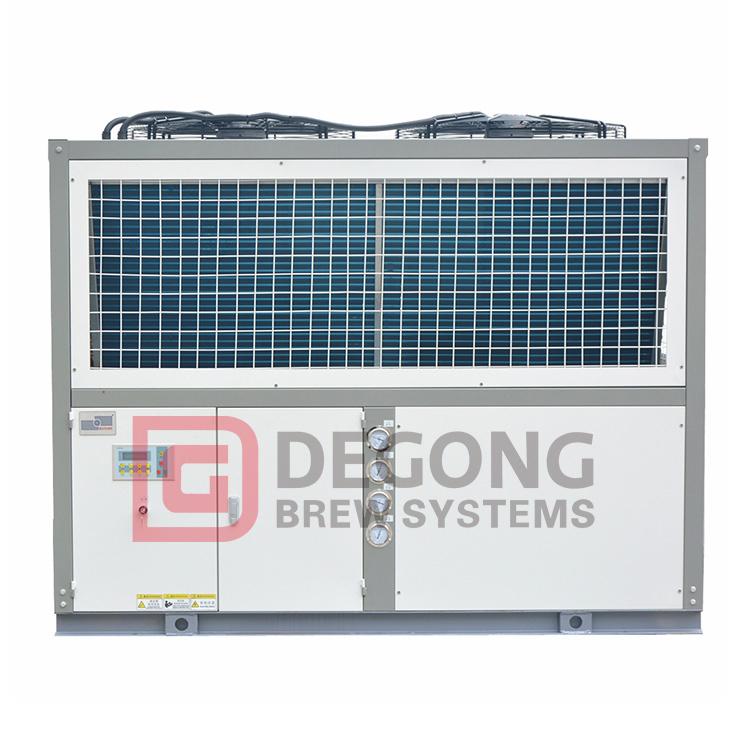

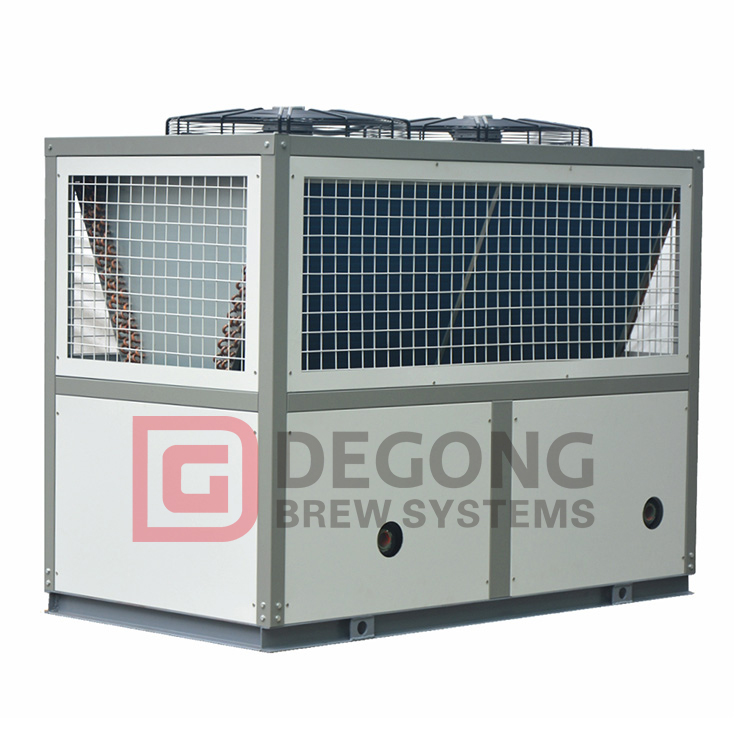

Products Show
Feature
High reliability
Scroll compressors have 60% fewer internal parts than reciprocating compressors. The structure of the scroll compressor prevents liquid refrigerant and impurities from entering the compressor. Equipped with a microcomputer control device to protect the compressor from malfunction. The torque change of the scroll compressor is 1/3 of that of the reciprocating compressor. |
High efficiency
| The scroll compressor is a rotary displacement design with small clearance volume, low friction loss and high operating efficiency. The unit adopts a combination of multiple compressors, and the partial load operation efficiency is high. |
Compressor
| The refrigerant circuit and the control circuit are completely independent, and can be used alternately according to the load conditions, effectively prolonging the service life. It has the advantages of high efficiency, low energy consumption, low noise, low vibration, wear resistance, and high reliability. |
Condenser
| Shell and tube condenser, the heat exchange tube is an outer finned copper tube, and the cover plates at both ends are removable, and the copper tube can be removed for cleaning. The condenser shell is equipped with fusible plugs to effectively ensure the safe operation of the system. The condenser has passed the national pressure vessel inspection. |
Evaporator
| The shell-and-tube evaporator uses inner finned copper tubes and is equipped with a refrigerant diversion device, which can evenly distribute the refrigerant to the heat exchange tubes and improve the heat exchange efficiency. For multi-compressor chillers, each compressor is equipped with an evaporator and a condenser, and the three constitute an independent refrigeration system. Due to structural reasons, the water paths of the two evaporators are often connected, while the refrigeration circuit is independent. Thermal insulation materials are attached to the outside of the evaporator to avoid loss of cooling capacity. |
Thermal expansion valve
| Using the world-renowned brand Emerson thermal expansion valve, the control accuracy is higher, the adjustment range is wider, and the response is faster. Under any working conditions, the heat exchange area of the evaporator can be fully utilized, the heat exchange is more sufficient, the efficiency is higher, and the reliability of the refrigeration system can be guaranteed. |
Packaging and shipping
In order to be a clear production cost, payment must actually control production; otherwise, it is considered another type of expense. So we must face every problem, packaging is the last step in sales. We often pack according to customer requirements.
| We hope to establish good business relations with customers through sincere contact and cooperation. The company's aim is to supreme quality and credibility, and sincerely welcome domestic and foreign partners. You are welcome to send us inquiries and orders. |
