5 BBL Unitank Conical Fermentation Tank Stainless Steel Jacketed Fermenting Vessel for Sale

This 5 bbl conical fermenter/unitank features two-zone glycol jacketing that will allow you to precisely control fermentation temperature. Designed for precision and brewing excellence, this 5 bbl fermenter also features a side manway for more effective cleaning via CIP.
You can purchase unitank-capable fermentors with confidence knowing they’re built for optimal fermentation. Designed for compact spaces, all valves and accessories are front-mounted for easy use and close spacing between tanks.
Availability:
Quantity:
  • DG-5 BBL
  • DEGONG
Product Description

5 BBL Unitank


You can purchase unitank-capable fermentors with confidence knowing they’re built for optimal fermentation. Designed for compact spaces, all valves and accessories are front-mounted for easy use and close spacing between tanks.


Features

  • 15 psi design pressure

  • Fully-welded, 304 stainless steel exterior shell

  • 304 stainless steel interior shell

  • Interior finished to Ra 0.8 micron sanitary finish and passivated

  • 60-degree cone bottom, jacketed

  • Independent dimpled cooling jackets (cone and cylinder) with individual glycol inlet and outlet

  • Rotating rack arm with butterfly valve and cover

  • Bottom dump 1.5" tri-clamp fitting with butterfly valve, elbow, and cover

  • Aseptic-style sample valve

  • CIP arm with spray ball and piping

  • Blow-off port

  • Vacuum and pressure relief valve

  • 80mm thick polyurethane insulation for cooling jacket and cone

  • Shadowless side manway door

  • 10" diameter top hatch

  • 3" dial thermometer

  • Pressure gauge


785

787

DEGONG 5 BBL UNITANK FOR SALE


Capacity Cylinder(ODxH) TOTAL HEIGHT Inner Thickness
3BBL 960x750mm 1880mm 3mm
5BBL 1060x850mm 2250mm 3mm
7BBL 1160 x 900mm 2450mm 3mm
10BBL 1260 x 1150mm 2800mm 3mm
15BBL 1500 x 1220mm 3100mm 3mm
20BBL 1600 x 1400mm 3500mm 3mm
30BBL 1800 x 1650mm 3760mm 3mm
40BBL 1900 x 1850mm 4210mm 3mm
50BBL 1900 x 2050mm 4750mm 3mm
60BBL 2200 x 2150mm 4830mm 4mm
80BBL 2200 x 2900mm 5780mm 4mm
100BBL 2200 x 3600mm 6450mm 4mm


789

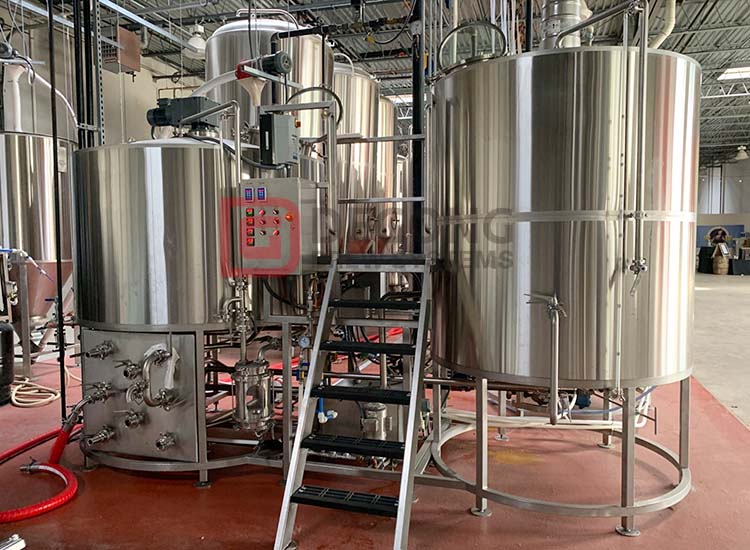

DEGONG 5 BBL BREWHOUSE FOR SALE
