5 BBL Stackable Stainless Steel Beer Fermenters Designed for Fitting Limited Installation Space

5BBL Stacked Stainless steel double wall glycol jacketed top manway cylindroconical fermenters are the most commonly used fermentation systems used today to produce both lagers and ales. As the name implies, the vessels are vertical cylinders with a conical base (usually 60°cone) and normally, a dished top. This design allows for easy yeast collection and CIP cleaning. 5BBL Stacked Stainless steel double wall glycol jacketed top manway beer brewery fermentation tank are very suitable for micro breweries and brewpubs, bars etc. It’s self-cooled with glycol water inlet and outlet, so the temperature of beer during fermentation can be controlled easily.
Availability:
Quantity:
  • DG-5BBL
  • DEGONG
Product Description

5 BBL Stackable Fermenter


Effective volume 5 bbl
Total Volume with 25% head space
Dimension 1160mm*2450mm
Inner SUS 304 T3mm
Layer SUS 304 T2mm
Top
Dome Top, with ratating CIP ball TC
Jackets
Jacket: SUS 304 Dimple Plate

Both on Bottom and Cylinder Parts

Insulation PU 80mm
CIP
CIP Arm with Rotating ball, Butterfly valve
Valves
Safety/Vacuum Valve
Outlet
Butterfly valve
Temp.
Thermometer and PT-100
Testing
Test:0.3Mpa, Working: 0.15-0.2Mpa
Pressure
Bung Apparatus with Pressure Gauge
Polishing
0.4-0.6μm/ or Mirror polishing
Legs
4 legs with adjustable Bolts
Cooling
Cooling ports, Threads ø25mm
Parts
With gaskets, Cooling pipe fittings


811

815814

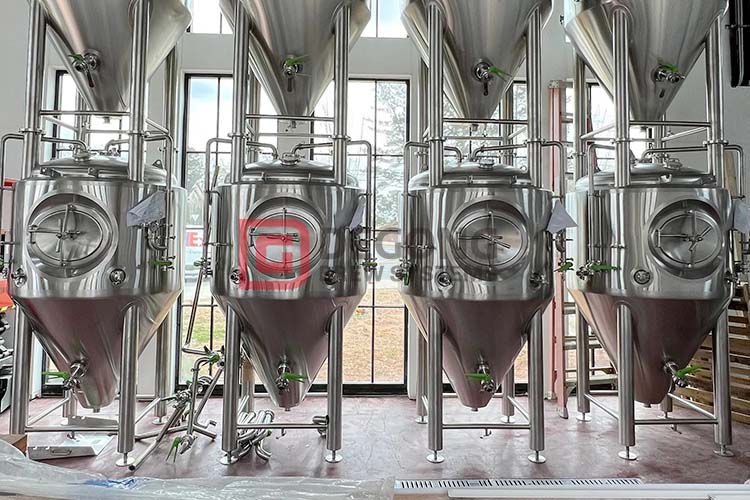

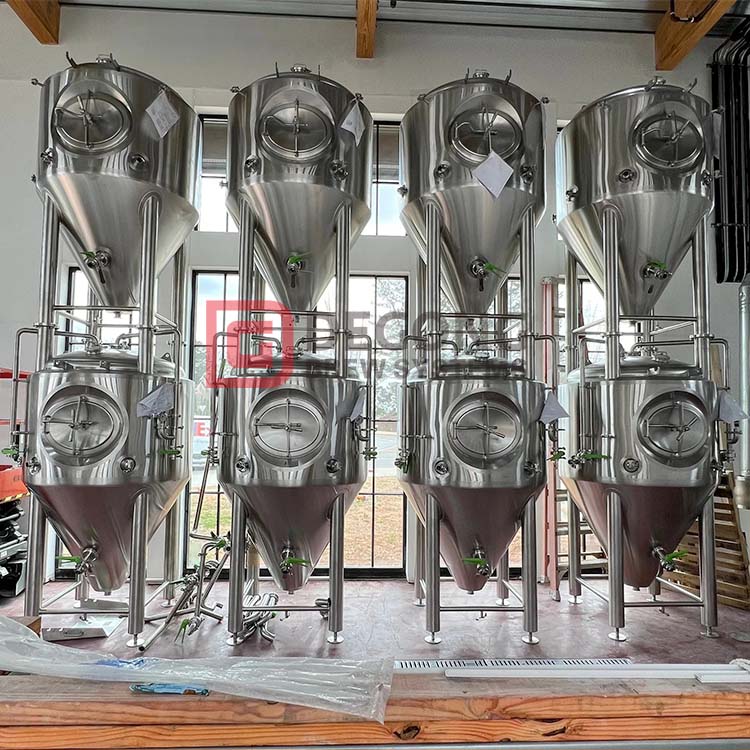

5 BBL Stackable Fermenter

5BBL Stacked Stainless steel double wall glycol jacketed top manway cylindroconical fermenters are the most commonly used fermentation systems used today to produce both lagers and ales.


As the name implies, the vessels are vertical cylinders with a conical base (usually 60°cone) and normally, a dished top. This design allows for easy yeast collection and CIP cleaning.


5BBL Stacked Stainless steel double wall glycol jacketed top manway beer brewery fermentation tank are very suitable for micro breweries and brewpubs, bars etc.


It’s self-cooled with glycol water inlet and outlet, so the temperature of beer during fermentation can be controlled easily. In addition, each beer fermentation tank is equipped with 360°rotated CIP spraying ball.   The tank inner could be cleaned completely. This can ensure the food-grade sanitary of beer production.

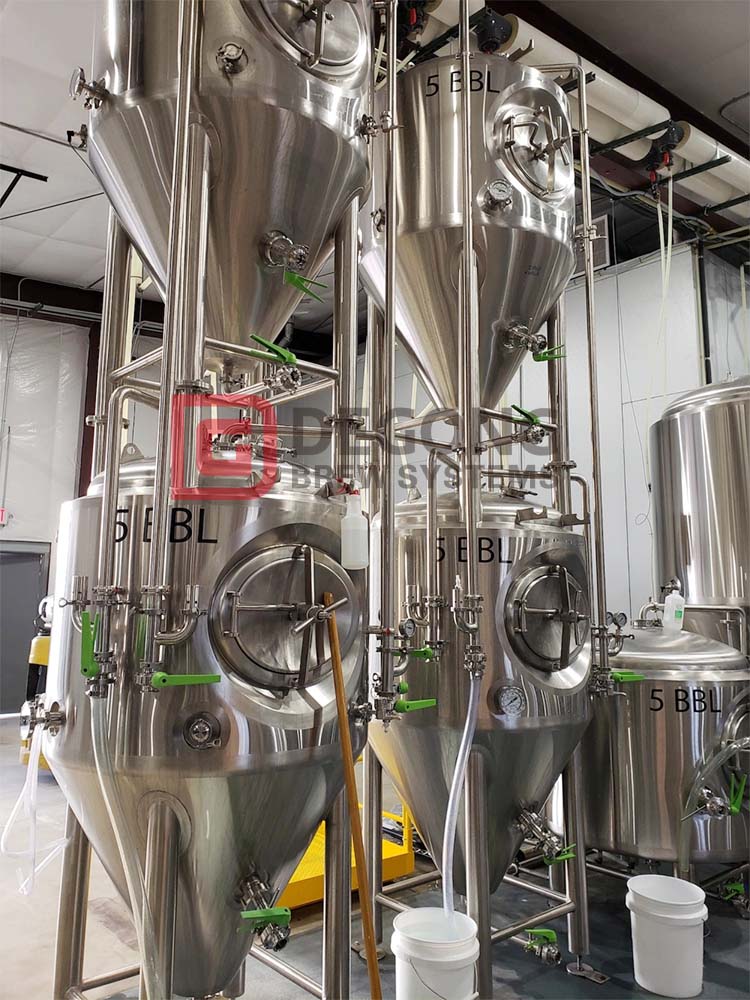

The 5BBL  fermenter is usually installed with 5BBLbeer brewing system or 2.5BBL small beer brewpub equipment. Based on different beer types requirements on output and fermentation cycle, usually 4-20 sets beer fermentation tanks are needed by most of the customers.


817


Contact us

The special attention we give in the final quality inspection of each work is also a guarantee of unparalleled reliability and robustness. If you have any needs or questions, please contact us.
