|Composition of 5 bbl micro brew system|
Mash/lauter tun – grist hydrator, false bottom, rake, sparging
Kettle/whirlpool tun – steam/ electric heating system, tangential entry
Pumps with motor
Stainless steel 304 working platform
Plate heat exchanger – 304 or 316 plates
Wort grant, hops back
Pipelines and valves
10 BBL Hot liquor tanks and pumps
5 BBL and 10 BBL fermentation tanks/bright tanks
Chiller and Glycol tanks
Control box and Rated Controls and Components.
DEGONG 5 BBL Micro Brew System
|5 BBL fermentation tanks|
|Total volume||7 BBL |
|Useful volume|| |
Inner (SUS304)thickness: 3.0mm;
External (SUS304) thickness: 2.0mm
Dimple jacket plate
CIP cleaning,with rotary spray cleaning ball
Sample valve, Pressure gauge, Breath valve, Temperature gauge, Top manhole, Washing ball, Butterfly valves, CIP Arm, Hop port, Discharge arm and so on.

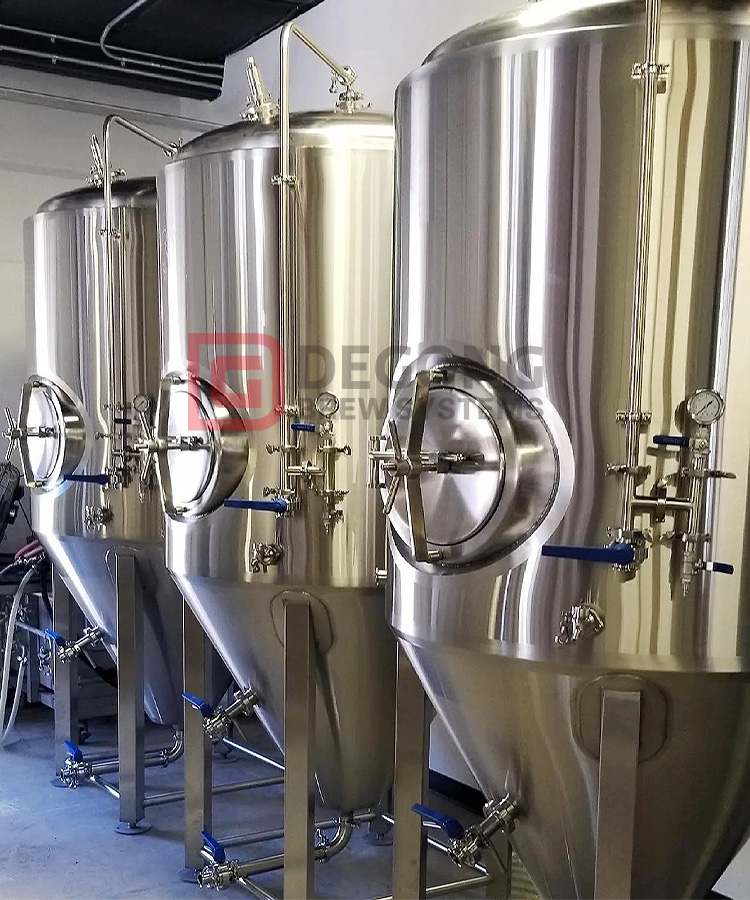

DEGONG fermentation system
The special attention we give in the final quality inspection of each work is also a guarantee of unparalleled reliability and robustness. If you have any needs or questions, please contact us.
