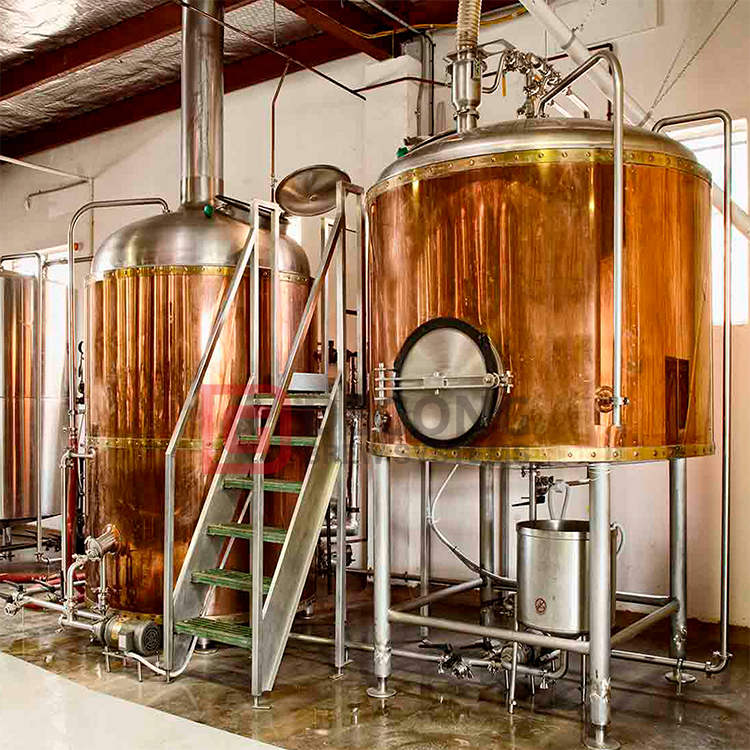

The 5-30BBL beer brewing system is a brewery suitable for restaurants, commercial and industrial breweries. It consists of an industrial wort brewing machine and a set of fully equipped professional beer fermentation tanks with a nominal capacity of 500 to 100,000 liters. This is a medium and large craft brewery, mainly for restaurants and bars that have their own beer production. But the capacity of larger models is also sufficient to meet the needs of retail industrial breweries. Equipped with industrial brewery wort machines and modern professional beer production equipment, such as cylindrical and cone beer fermentation tanks or open fermentation tanks, automatic cooling systems, cleaning and disinfection systems, etc., which can be used to produce all known types of beer.
We plan and design the 5-30BBL beer brewing system, and all systems can design a defined process based on customer input;
A variety of different container combinations and multiple containers: multifunctional tank (mash mixer-filter, kettle-vortex), separate process tank (malt mixer, filter, boiling kettle, vortex, cold/hot water tank );
Complete piping and wiring, including valves and sensors;
Integrated pump system;
CIP system: separate storage tank CIP to prevent cross product interference;
Master brew interface control system (touch screen control panel),
Stairs and platforms combine the container into a compact unit, and the perforated and segmented structure of the walking surface ensures that it prevents sliding;
Automatic filtration, automatic water mixing
High-quality insulation effect: rock wool thickness: 80mm
Beautiful welding seam and polishing: full argon gas shielded welding. Polishing accuracy up to Ra0.6µm
The world's top brand electronic components: Siemens PLC and touch screen, circuit breaker Schneider button, etc.
Wear-resistant material: inner sheath (SUS304) thickness: 3.0mm; outer sheath thickness: 2.0mm; head thickness: 3.0mm
Fermentation unit: standard stainless steel cone-shaped cylindrical fermentation tank; various beer can be accurately calculated according to the fermentation cycle; including all manholes, valves, pressure gauges, accessories, etc.
Bright Tank Unit: Standard stainless steel bright tank used for beer maturation, conditioning, service and carbonation; accurate calculation of the number and functions of various beer tanks; including all manholes, valves, stones, meters, accessories, etc.
Cooling device: insulated glycol water tank with or without copper coils, used for holding and mixing glycol liquid; high-efficiency cooler or refrigerator with fryer to provide cooling energy; used for storing glycol water Sanitary centrifugal pump circulating between tank and heat exchanger; including all pipes, fittings, insulation materials
Control unit: electric control cabinet with temperature, switch control of saccharification room; electric control cabinet with temperature, on-off control of cooling components; including temperature controller, thermocouple, solenoid valve, etc.; PLC with touch screen panel can meet special requirements
|Combination method||Mash/Kettle tank, Lauter tank, Whirlpool tank|
|Application||Restaurants, bars, hotels, brewery|
|Heating way||Steam heating/Electric heating/Direct fire heating|
|Degree of automation||Semi-automatic/Fully automatic|
Copper distillation equipment
|Item||Production capacity||Volume in US Gallon||Heating area||Tank diameter||Height|
|DG-500||500L/day||132 US Gallon||0.5m2||1160mm||2400mm|
|DG-600||600L/day||158 US Gallon||0.6m2||1160mm||2500mm|
|DG-700||700L/day||185 US Gallon||0.7m2||1260mm||2500mm|
|DG-800||800L/day||212 US Gallon||0.8m2||1260mm||2500mm|
|DG-1000||1000L/day||264 US Gallon||1.0m2||1360mm||2800mm|
|DG-1500||1500L/day||396 US Gallon||1.5m2||1560mm||2900mm|
|DG-2000||2000L/day||528 US Gallon||2.0m2||1960mm||3150mm|
|DG-2500||2500L/day||660 US Gallon||2.5m2||1960mm||3200mm|
|DG-3000||3000L/day||792 US Gallon||3.0m2||2060mm||3800mm|
|DG-5000||5000L/day||1320 US Gallon||5.0m2||2260mm||4400mm|
We can customize product specifications according to your requirements. If you have any needs or questions, please contact us.
