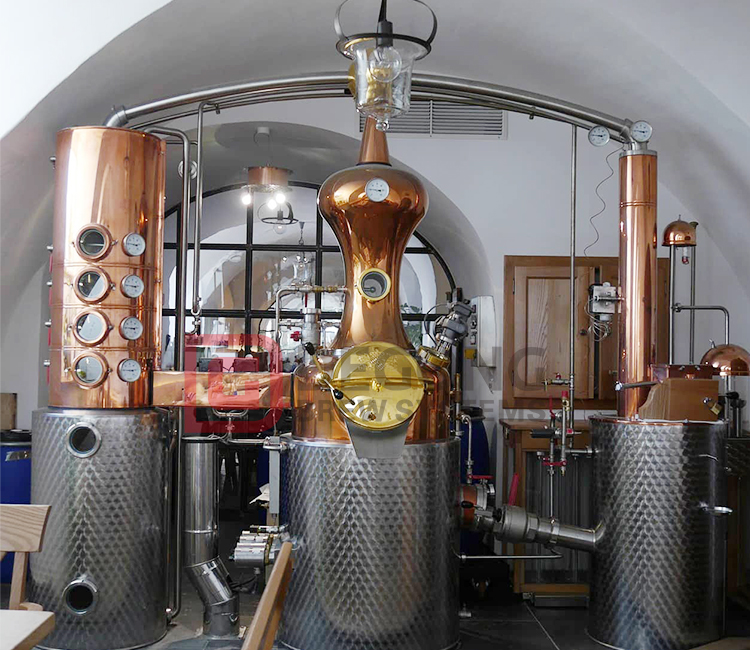

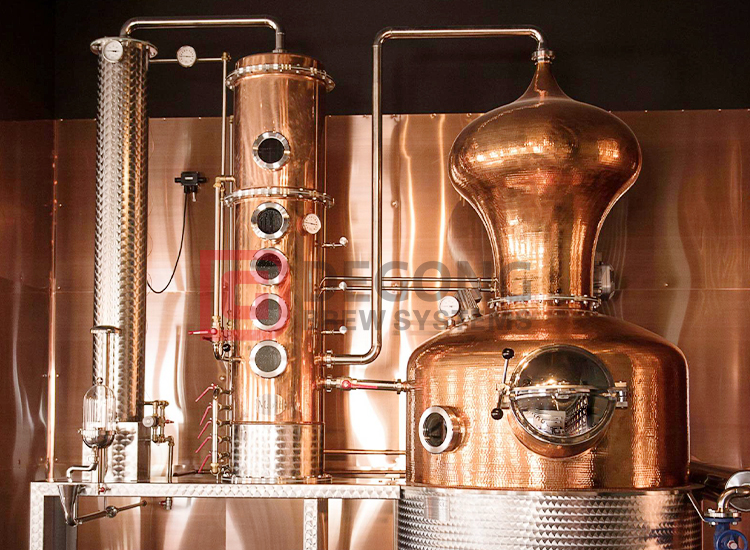

400L Gin Whiskey Alcohol Distillation Equipment Copper Distillery Distillation Machine

Gin Whiskey Distillation Machine

Pear-shaped helmet with thermometer and inspection glass

Copper pot-Ø 900 mm; 3-4 mm strong,

Filling capacity 400 liters

The full capacity is about 500 liters

Inlet Ø 400 mm

Side-mounted dedicated distillation tower

Outlet Ø 200 mm with ball valve 4″

Newly constructed plates to enhance the quality of the aroma

The water bath is completely made of stainless steel and insulated

Special-shaped helmet: with stainless steel flange connection, no visible screws or washers inside and outside, with observation mirror and thermometer.

Indirect heating: a steam bath covered with stainless steel and insulated.

Copper super aromatics (special distillation tower) 450 mm Ø with 3 bubble caps

Blister: a new structure that increases the turbulent movement of the copper surface and the liquid

The liquid level on the distillation tray can be adjusted freely-the alcohol content and aroma of the distilled mash can be flexibly adjusted. Include a pre-condenser (fractionator) in the column head

Inspection mirror: 4 125mm Ø observation windows for each blister and saccharification reflux

Stainless steel condenser: V4A material, diameter 220mm, height 1500mm, automatic cooling with thermostatic regulating valve

Safety features: overflow, vacuum circuit breaker, pressure gauge, automatic exhaust, steam trap and dirt filter. Outflow device of alcohol pipe, distilled water and water device: completely made of stainless steel.

Heating method: steam, gas, wood or electricity

CIP cleaning system

• With stainless steel cleaning syringe inside the helmet and rotating in the pot (customer provides pressurized hot water)

• Forced pump

• The stainless steel cleaning syringe in the pot (rotating),

• Booster (one for each boiling plate, fractionator, mash return pipe)

• Indexable cycle cleaning

Winery monitoring

• Electronic distillation control system with touch screen 1 measuring point in the alcohol production line

• Sound signals at the beginning of the head, the beginning of the tail, and the end of the distillation

• Connection port for digital transmission

• Fraction and blending calculator

The special attention we give in the final quality inspection of each work is also a guarantee of unparalleled reliability and robustness. If you have any needs or questions, please contact us.
