38/51/57/63mm Sanitary Ball Type Sight Glass Diopter Stainless Steel SUS304 Inline Four-way Homebrew Welded Sight Glass Pipe OD

Sight glass refers to a device used to observe the condition of the material inside the container and equipment. It is a safety accessory and should be checked regularly. According to the shape, it is divided into round and rectangular mirrors. According to the purpose, it is divided into peeping and lighting sight glasses. According to the structure, it is divided into lined and unlined, with neck, with cover, double-layer safety, heat preservation, with scraper, with flushing device, sight glass and sight glass suitable for powdery materials.
Availability:
Quantity:
  • 38/51/57/63mm
  • DEGONG
Product Description

Product name Sanitary sight glass
StandaStandard DIN/SMS/ISO/IDF/3A/RJT/DS/BS/BPE
Material AISI 316L/304
Seal Material EPDM/FPM/Silicone
Connection Welded/Clamped/Threaded/Flange
Internal suiface finish bright Ra≤0.5 um
Max Pressure 10Bar
Working Temperature -10℃- +120℃
Body material Stainless Steel
Certificate ISO9001,3A,CE


17

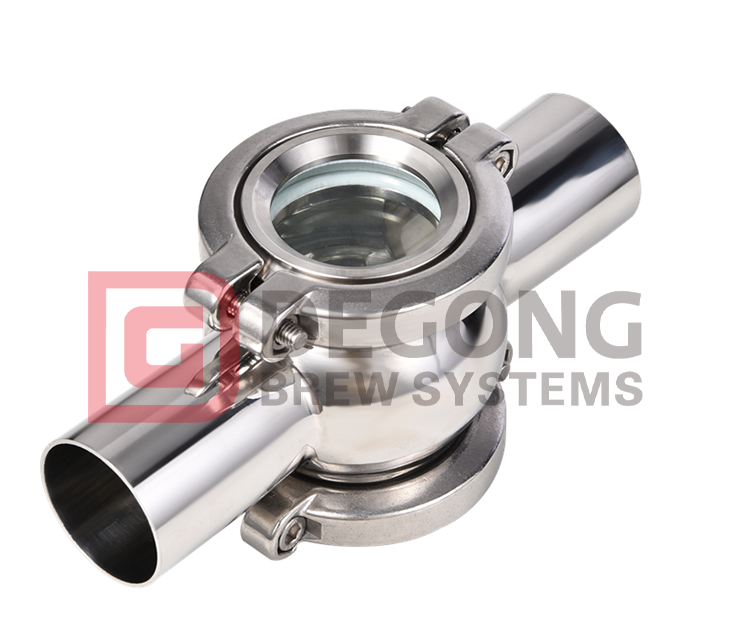

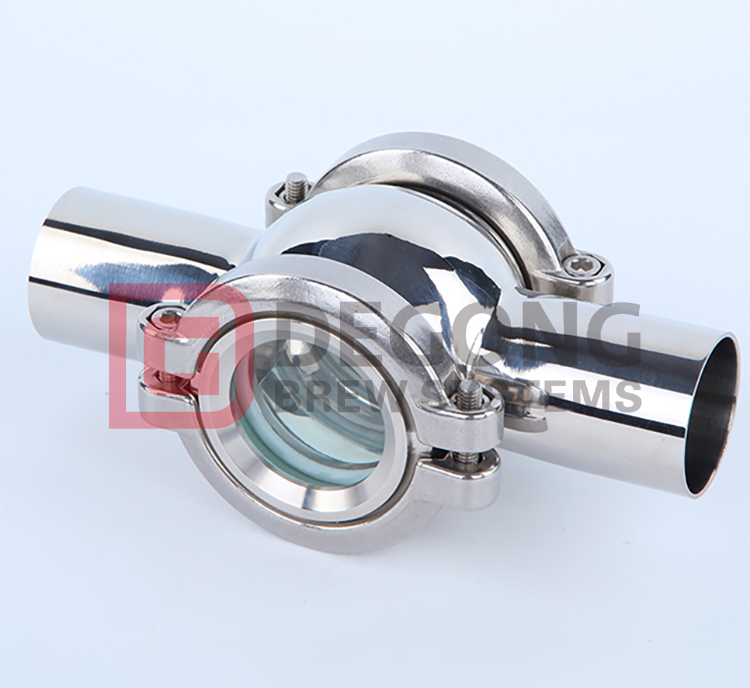

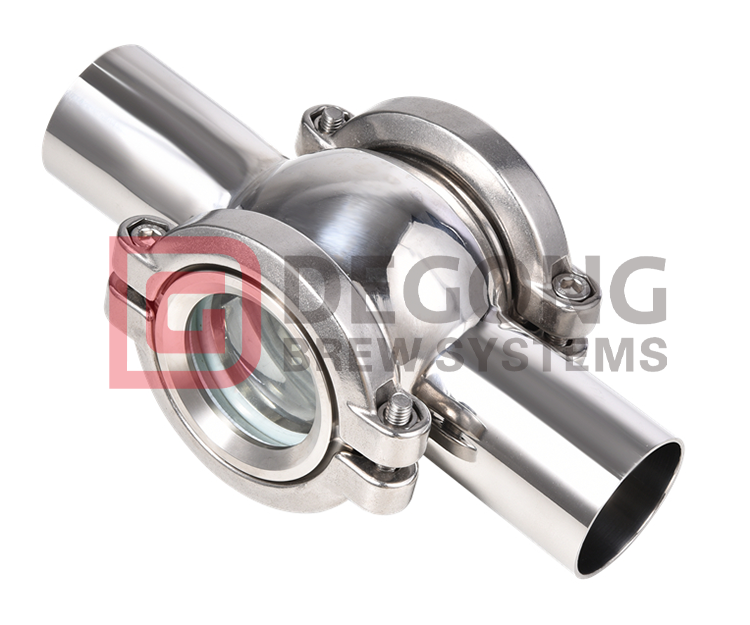

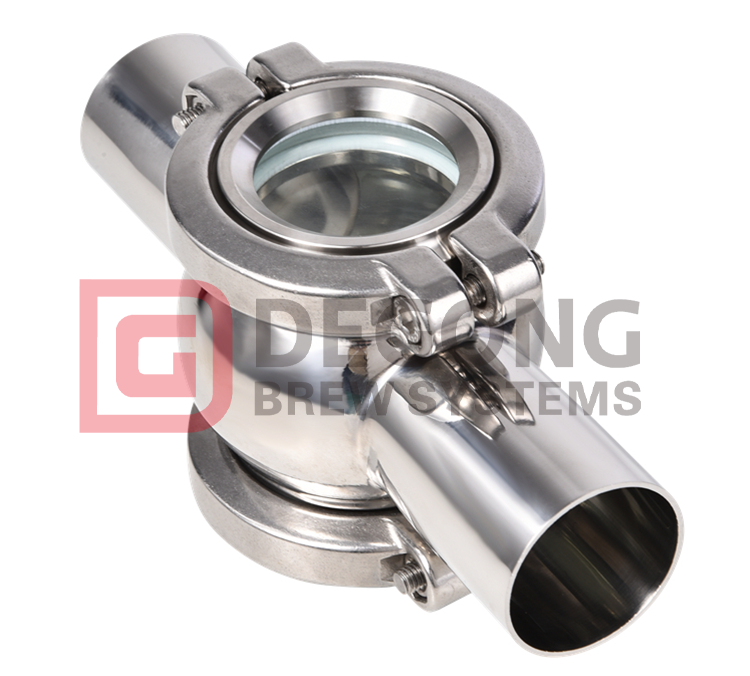

Spherical sight glass:

The sight glass is composed of stainless steel structure and glass. In the production process of food processing, petroleum, chemical fiber, medicine, cosmetics and fine chemical industry, the flow reaction of liquid, gas, steam and other media can be clearly and accurately observed through the sight glass, which is an indispensable accessory to ensure normal production.


32

  • Standard: DIN SMS BS IDF RJT

  • Material: ASTM 304/316L/1.4301/1.4404

  • Temperature: -10/130℃

  • Maximum pressure: 10bar

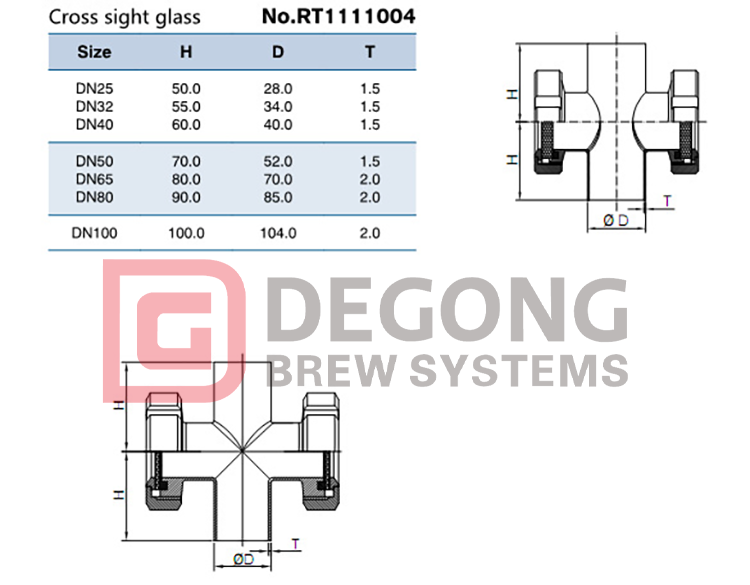

  • Specifications: DN40-DN150, 1.5"-6"

  • Interface: welding, thread, quick assembly and flange


Features:

Sight glass refers to a device used to observe the condition of the material inside the container and equipment. It is a safety accessory and should be checked regularly. According to the shape, it is divided into round and rectangular mirrors. According to the purpose, it is divided into peeping and lighting sight glasses. According to the structure, it is divided into lined and unlined, with neck, with cover, double-layer safety, heat preservation, with scraper, with flushing device, sight glass and sight glass suitable for powdery materials.

4


5


If you want to choose, you must choose the high-quality humanized design of the stainless steel manhole, which is beautiful in appearance, and the overall thickening design is more pressure-resistant, temperature-resistant, corrosion-resistant, prolongs the service life, durable, simple in structure, easy to install, flexible and meticulous in use Strict quality control of the craftsmanship pays attention to every detail and every quality.I believe DEGONG will give you the best Sight glass
