3500L/H Ultrafiltration Equipment for Sale

Ultrafiltration (UF) is a type of membrane filtration in which hydrostatic pressure forces the liquid against a semi-permeable membrane. A semipermeable membrane is a thin layer of material that can separate substances when a driving force is applied to the membrane.
Availability:
Quantity:
  • DEGONG-3500L/H

  • DEGONG

Product Description

3500L/H Ultrafiltration Equipment


Once considered to be a viable technology only for desalination, membrane processes are increasingly used to remove bacteria and other microorganisms, particulate matter and natural organic matter, which will bring color, taste and odor to water, and be incompatible with The disinfectant reacts to form disinfection by-products. With the advancement of membrane production and module design, capital and operating costs continue to decline.

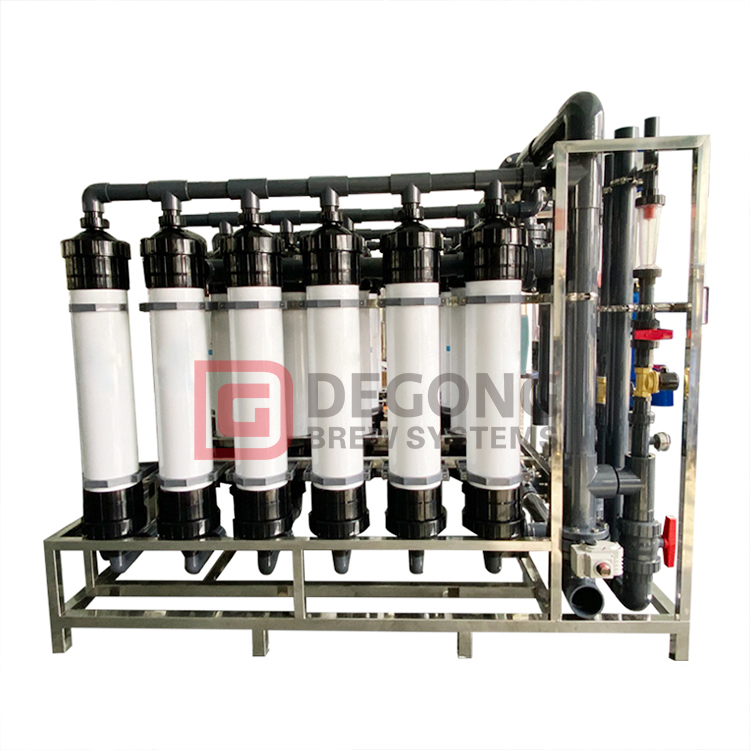

210

Working principle

Ultrafiltration membrane is an anisotropic semipermeable membrane with macromolecular materials as a separation method. The solution has no phase change and can remove particles with a molecular weight of 1500-100000 Daltons. It can effectively remove organic matter, bacteria, viruses, colloids and non-ionic suspensions. solid.

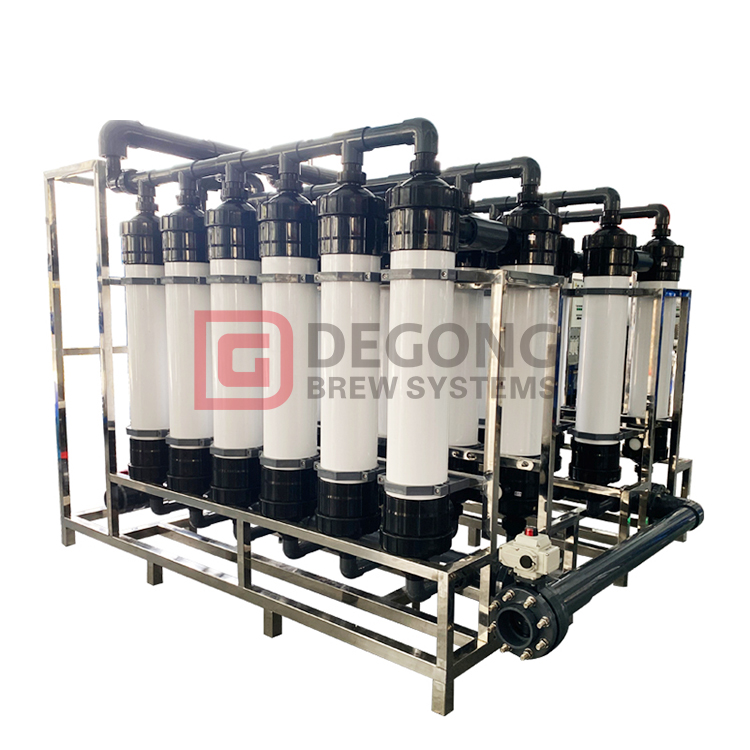

212

Work flow of ultrafiltration purification system

Raw water → raw water tank → raw water pump → mechanical filter → activated carbon filter → 5μm safety filter → ultrafiltration device → (RO component →) pure water tank → water tank.

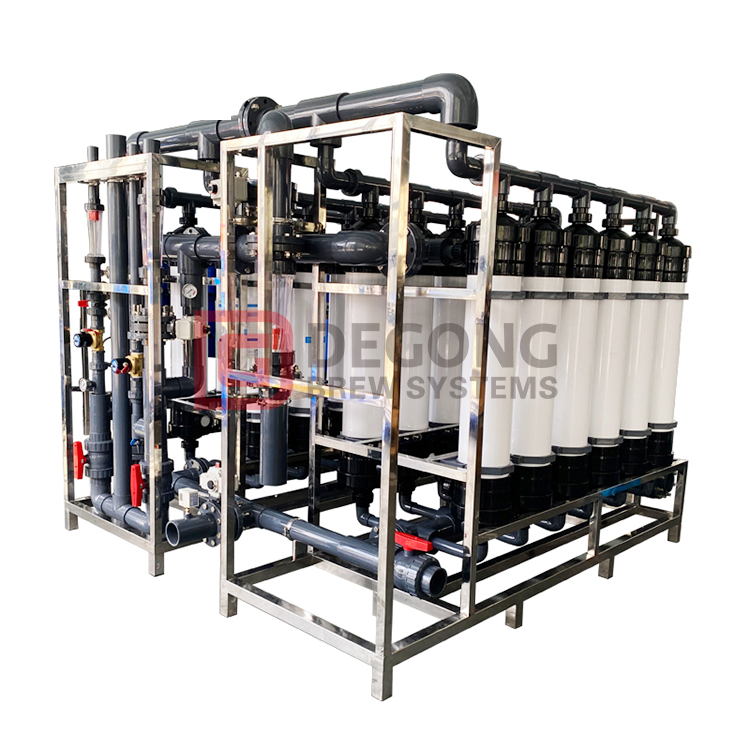

211

Technical parameter

1. Capacity: 3500L/H

2. Rated power: 1.5KW/H

3. Voltage: 220V/380V, 50Hz/60Hz, 1 or 3ph

4. Packing size: 2440*620*1850mm

5. Total weight: 450kg

6. Feed/backwash pump: CHL4-30

7. Backwash tank: PE-300

8. Ultrafiltration membrane: UFC90AL x 6pcs

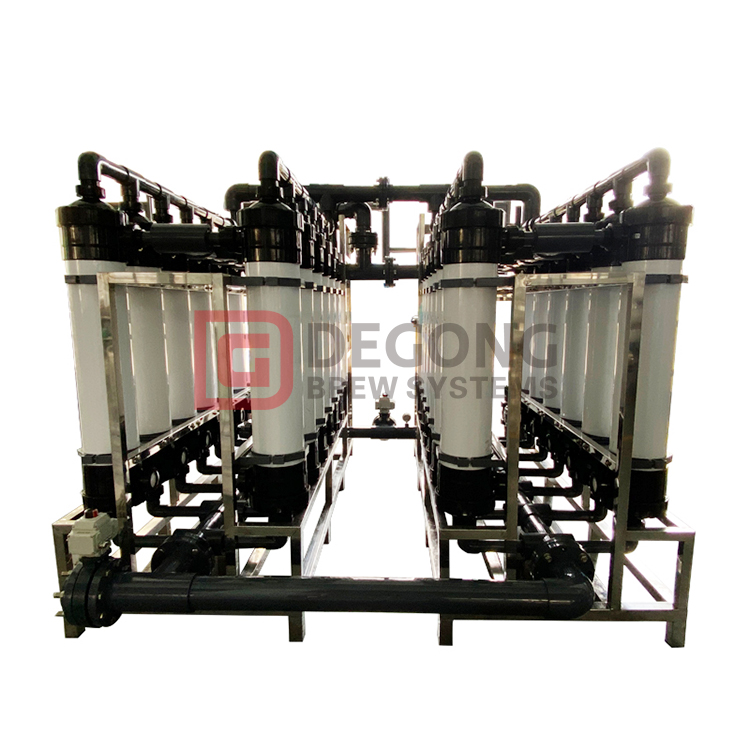

213

Contact us

We can customize product specifications according to your requirements. If you have any needs or questions, please contact us.
