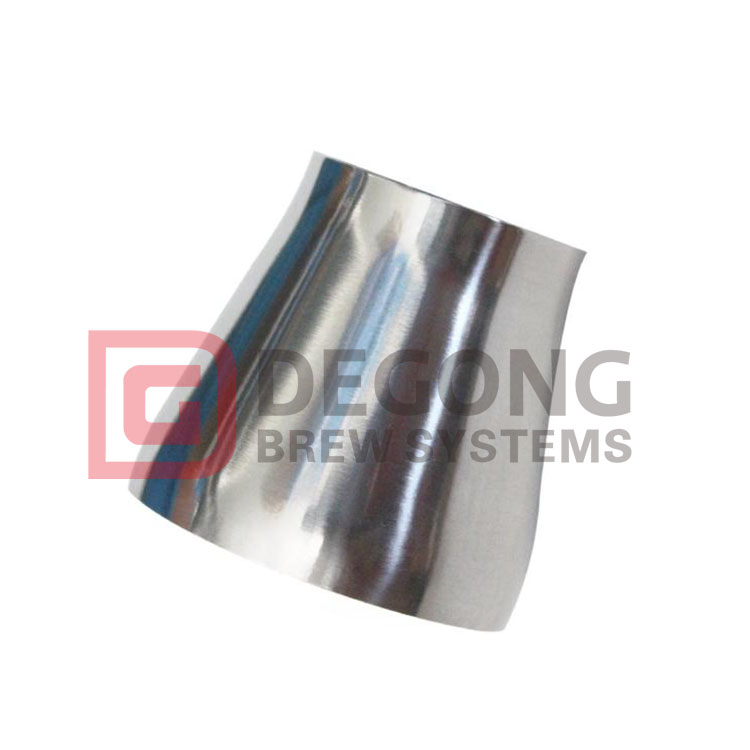

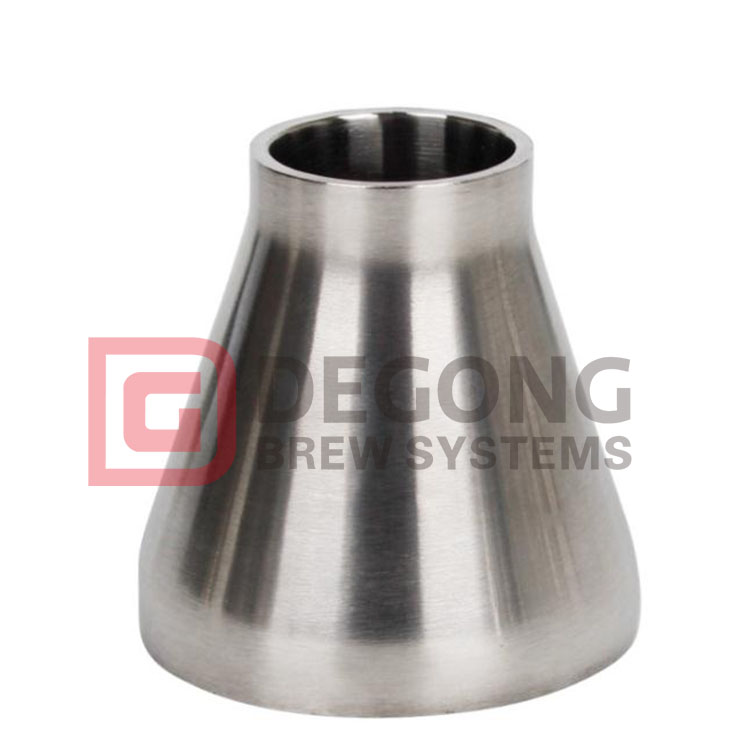

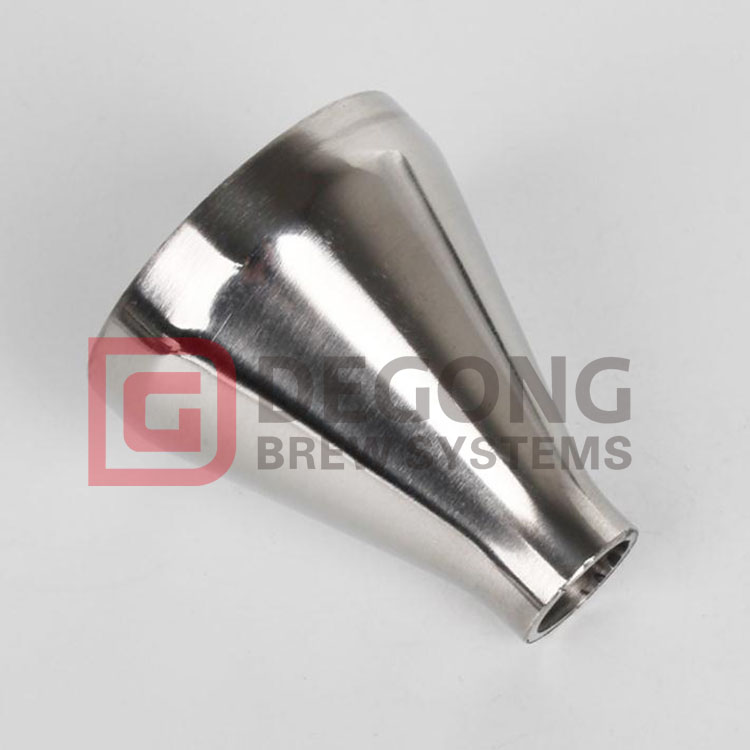

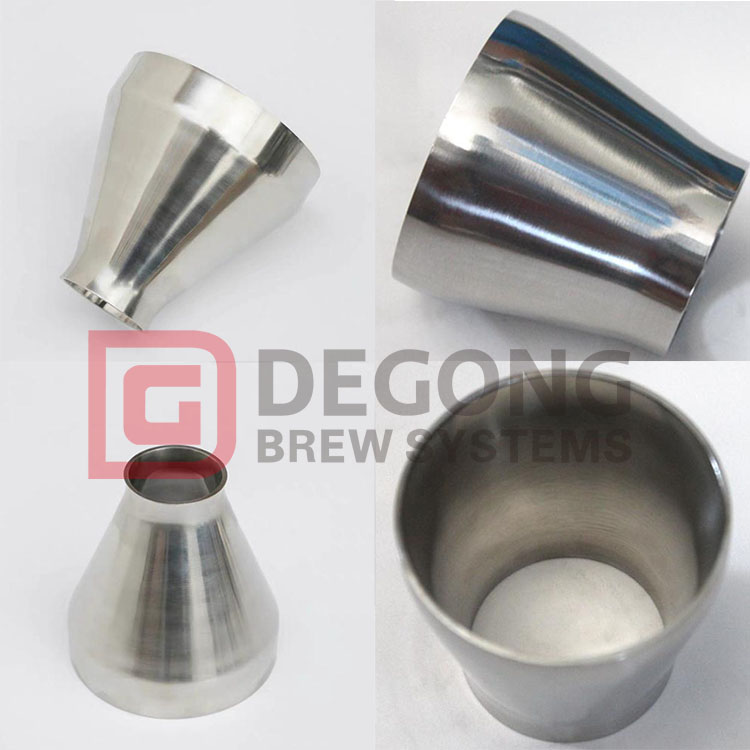

Concentric size head welding elbow
Butt welding elbows are divided according to its radius of curvature, which can be divided into long radius butt welding elbows and short radius butt welding elbows. The radius of curvature of the long-radius butt-welded elbow is equal to 1.5 times the outer diameter of the pipe, that is, R=1.5D. The radius of curvature of the short-radius butt-welded elbow is equal to the outer diameter of the pipe, that is, R=1D. In the formula, D is the diameter of the butt-welded elbow, and R is the radius of curvature. If there is no special instruction, the 1.5D elbow is generally used.
|Product Name||Stainless steel welding head|
DIN standard (DN15-DN159) (3/4”-6”) ISO standard (Ф19.1-Ф159)
|Product Material||Stainless steel 304, 316, 316L|
|Manufacturing Standards||ISO, BPE, 3A, etc.|
|Detailed Information||Please consult customer service staff for more|
Advantages of pipe fittings: It can meet the sanitary quality requirements of the appeal industry. It has the advantages of simple structure, beautiful appearance, quick assembly and disassembly, quick switch, flexible operation, low fluid resistance, safe and reliable use, etc.
If you are interested in any of our series, please feel free to contact us for more detailed information.
