300L Electric Copper Vodka Distillery Equipment Gin Alcohol Distiller Spirits Column Still

Super large full perspective feeding window easy feeding, , reduce the heavy labor force of brewing, and can be expanded into full-automatic pumping of liquid fermentation broth / continuous operation in the later stage. Large discharge window, good air tightness, easy to discharge slag after distillation
Availability:
Quantity:
  • DG-300L
  • DEGONG
Product Description

300L Electric Column Still


Item Name
300L Electric Copper Vodka Distillery Equipment Gin Alcohol Distiller Spirits Column Still
Material
Food grade stainless steel 304/copper
Applicable Industries
Hotels, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Food Shop, Food & Beverage Shops, Brewery
Processing Types
Distilling
Application
Whiskey Vodka Gin Tequila Brandy ect.
Capacity
50-5000L


452

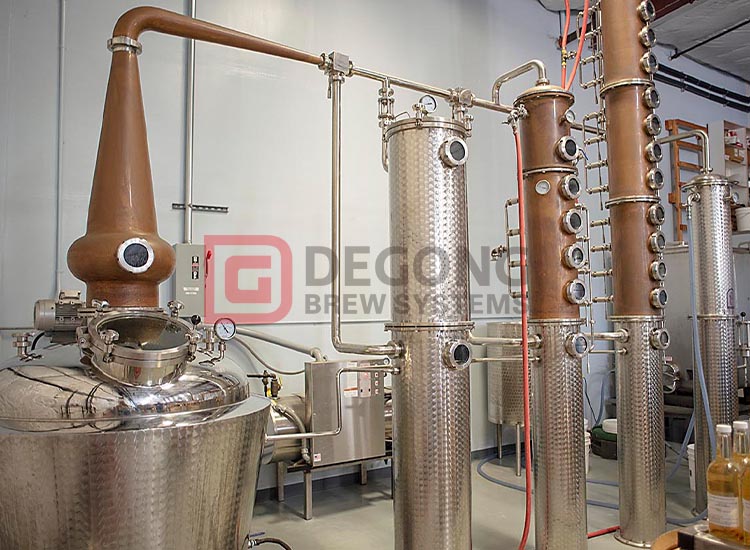

DEGONG 300l electric column still


Model
Descriptions
Quantity
300L Still Pot
1.Volume: total volume 400L, working volume 300L
2.Inner pot: TP2 red copper, thickness 3mm
3.Dished head: TP2 red copper,thickness 3mm
4.Outer shell: SUS304,fish wave plate, thickness:2mm
5.Jacketed&50mm insulated
6.Heating method: 2*8KW, 415V / 50hz / 3ph electric heating rods)
7.Accessories: φ250 man hole, level gauge, pressure relief valve, thermometer, sight light,etc.
1
Copper head
1.Material:TP2 red copper, thickness:3mm
1
Alcohol pipeline
1.Material:TP2 red copper, thickness:1.5mm
1
Still Column
1.Column:TP2 red copper,thickness:3mm
2.size:Φ152
3.4 bubble trays with 5 sight glasses
4.Attached reflux device, thermometer
1
Dephlegmator
1.Dephlegmator:TP2 red copper,thickness:3mm
2.size:Φ152
3.With cooling water inlet and outlet,thermometer
1
Condenser
1.Condenser:SUS304,thickness:3mm
2.size:Φ152
3.With cooling water inlet and outlet,thermometer
1
Gin basket
1.Condenser:TP2 red copper,thickness:3mm
2.size:Φ133
1
Control box
Control electric heating rod switch, PT100
1
Packing
2*export wooden packaging, steel reinforcement
1


Contact us

The special attention we give in the final quality inspection of each work is also a guarantee of unparalleled reliability and robustness. If you have any needs or questions, please contact us.
