300L Copper Moonshine Still Alcohol Distillation Equipment Spirits Distiller for Sale

We have a series of strict and complete inspection procedures, including incoming inspection - production process inspection - ex-factory inspection, comprehensive quality control of products, and complete inspection methods.
Availability:
Quantity:
  • DG-300L
  • DEGONG
Product Description

300L Spirits Distiller


Item Name Specifications & Structure
300L Spirits Distiller Distillery 1×300L SUS304 & Red copper still pot.
1×red copper onion still head.
1×4 plates red copper still columns with sight galss.
1×red copper Gin basket
1×red copper dephlegmater
1×SUS304 condenser
1×galss parrot outlet
1×SUS304 support frame
1×CIP pump and SUS304 sanitory pipeline
Be used for Whsikey, Brandy, Gin and Vodka.
Model DG-300L
Brand DEGONG


371


Still Pot
  • Actual volume 375L, Working volume 300L

  • Inner pot: red copper T2, thickness: 3m

  • Dished head: red copper T2, thickness: 3m

  • Jacketed: SUS304, thickness: 4mm

  • Insulated: 50mm, PU

  • Stirring motor: explosion-proof mixer 0.37KW/46rpm(EX)

  • Outer shell: SUS304, thickness: 2mm

  • Temperature control: PT100

  • Heating method: 2*10KW electric heating rods

  • With glass manhole, CIP cleaning ball, safety valve, sight light, steam trap, etc.

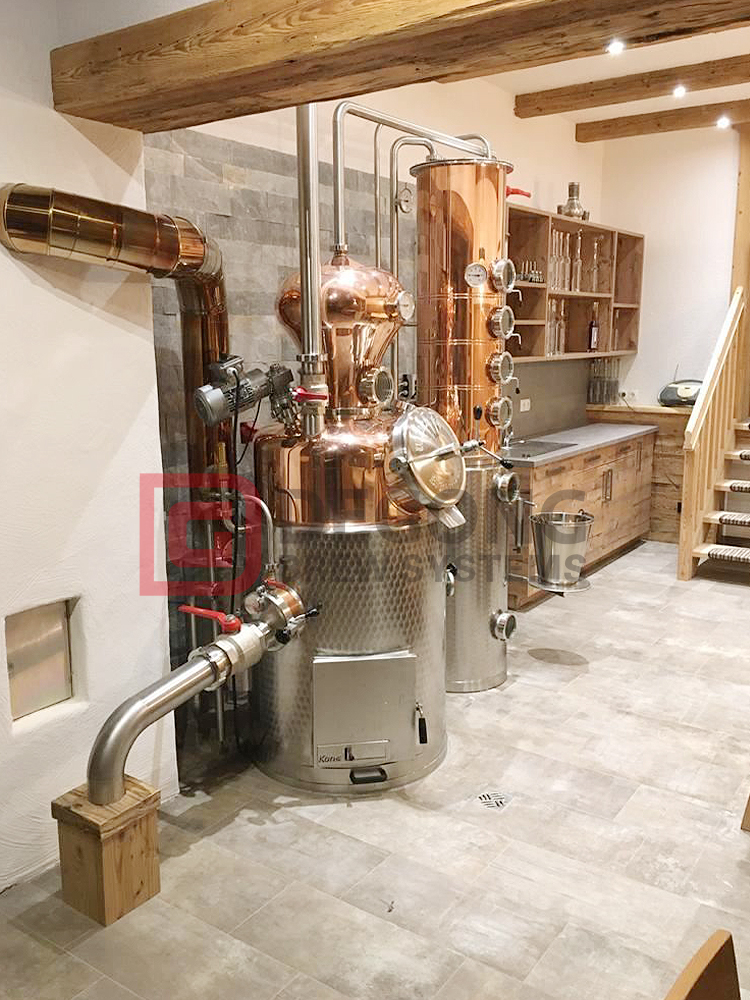

372


Copper Head
  • Material: red copper T2, thickness: 3mm

  • Connection method: 8″ tri-clamp

  • Red copper tubes, one column with 4 bubble trays, each tray has bubble caps, and with CIP cleaning balls, Drain valve, thermometer


Still Column
  • Material: red copper T2, thickness: 3mm

  • Connection method: 8″ tri-clamp

  • Red copper tubes, one column with 4 bubble trays, each tray has bubble caps, and with CIP cleaning balls, Drain valve, thermometer


Dephlegmator
  • Material: Red copper T2, thickness:3mm

  • Connection method: 8″ tri-clamp

  • With cooling water inlet and outlet


Features

Coarse polish, fine polish, and finishing polish to make sure very nice appearance.

CIP Pipes and sanitary pump with competent quality.

Reasonable pipeline layout

Quick tri-clamp | Easy to install & remove


368


Contact us

The special attention we give in the final quality inspection of each work is also a guarantee of unparalleled reliability and robustness. If you have any needs or questions, please contact us.
