300L 500L Gin Distillation Equipment Copper Spirit Alcohol Distiller Micro Distillery for Sale

300L Micro Alcohol Distillery

Distiller pot

• Working Capacity: 300L

• Tank Material: Red Copper T2  & Stainless Steel 304

• Diameter 860mm, thick 5mm

• Accessories:  manway,CIP cleaning ball, thermometer,PRV,  material inlet,pressure guage,agitator motor 1.5KW

• Electrical element

Whisky head

• Material:  red copper T2

• Thickness: 3mm .

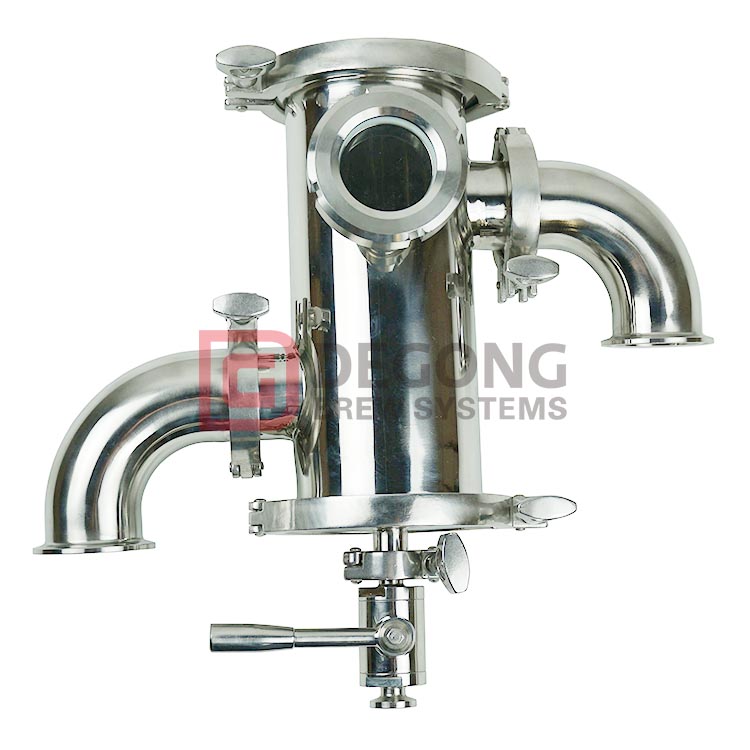

Gin basket

• Material: Stainless Steel 304

• Thickness: 3mm& 2mm

Dephlegmator

Tank materials: Stainless Steel 304

Thickness:3mm

Shell and tube type

Column

• Material: red copper T2

• Thickness: 3mm

• Red copper tubes,bubble caps, CIP cleaning balls,  sightglass, clean valve, etc

• 8+8plates copper bubble column for vodka

Together with

• Condenser

• Collecting tank

• Electric control cabinet

• CIP system

• Efficient CIP ring for 360 degree cleaning

• Standard Whiskey Helmet ( other styles avable upon request)

• Copper and 304 Stainless Construction ( No solder )

• Three position valves for stripping and rectification runs

• Stainless tube and Shell liquid management condenser with glass shell for full viewing of condensing water.

• 304 Stainless steel process piping.

The special attention we give in the final quality inspection of each work is also a guarantee of unparalleled reliability and robustness. If you have any needs or questions, please contact us.
