3000L Industrial Copper Brewery System Turnkey Beer Brewing Equipment Copper Brewhouse

We use copper outer tank, inner tank is SS304 or SS316 material to make beer brewing tank. 3000L Beer Brewing Equipment is a brewery for restaurants, commecial and industrial breweries which consist of the industrial wort brew machine and a fully equipped set of the professional beer fermentation tanks with a nominal capacity from 50 up to 5000 liters.
Availability:
Quantity:
  • DG-3000L

  • DEGONG

Product Description

3000L Industrial Copper Brewery


3000L mash/lauter tank
  • Useful capacity:3000L

  • Outline size:φ2160×3600mm

  • Inner-Jacket(SUS304) thickness: 3.0mm

  • External-Jacket(copper) thickness: 2.0mm

  • Dimple jacket plate(SUS 304) thickness: 1.5mm

  • Insulation layer: Rock wool material, Insulation thickness: 80mm

  • Inner polishing accuracy: Ra0.4µm

  • Equipped with blender; Power: 0.75KW

  • Temperature way: temperature probe PT100, temperature transmitting. Temperature control screen display

  • CIP cleaning device: Material: SUS 304

  • Outsourcing surface: Weld polishing processing

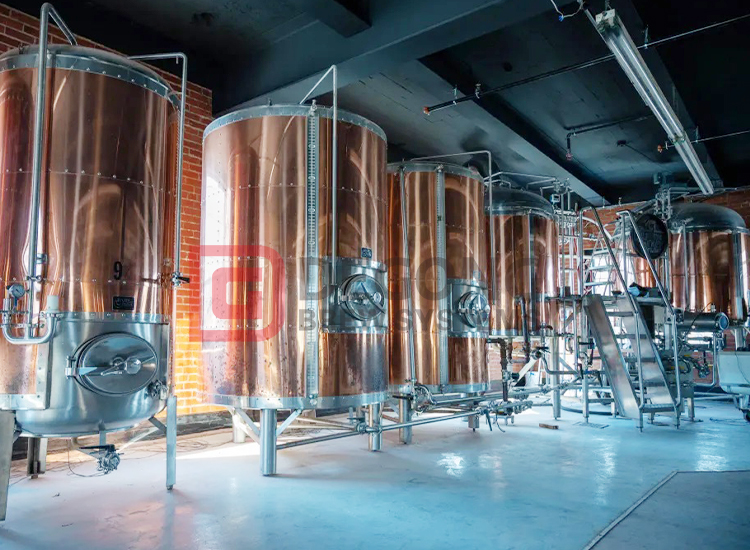

470


3000L boiling/whirlpool tank
  • Useful capacity:3000L

  • Outline size:φ2160×3600mm

  • Inner-Jacket(SUS304) thickness: 3.0mm

  • External-Jacket(copper) thickness: 2.0mm

  • Dimple jacket plate(SUS 304) thickness: 1.5mm

  • Insulation layer: Rock wool material, Insulation thickness: 80mm

  • Inner polishing accuracy: Ra0.4µm

  • Steam heating way

  • Temperature way: temperature probe PT100, temperature transmitting. Temperature control screen display

  • CIP cleaning device: Material: SUS 304

  • Outsourcing surface: Weld polishing processing

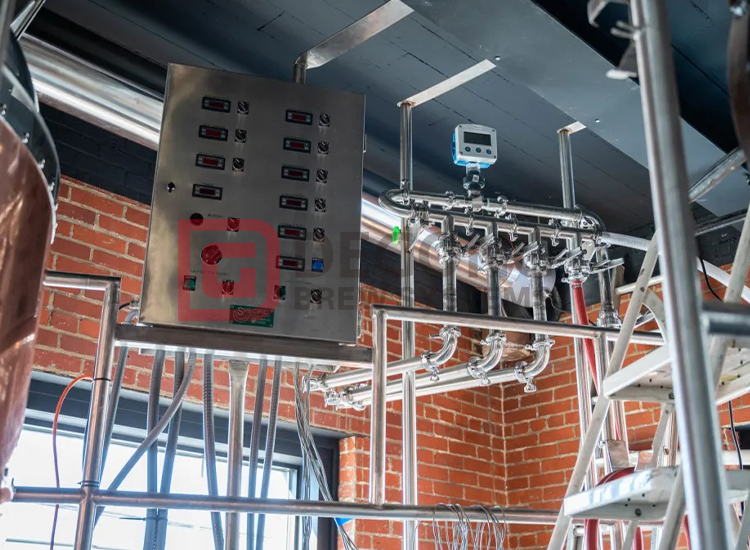

469


Main Features
  • All tank are made of high quality 304 stainless steel and copper.

  • Adopting advanced world famous brand components in electric parts and operation parts.

  • Fermentation pressure controlled by pressure gauge automatically.

  • The tanks are welded by TIG welding.

  • The tank will be polished 3 times.

  • Each tank will be tested by water and air.

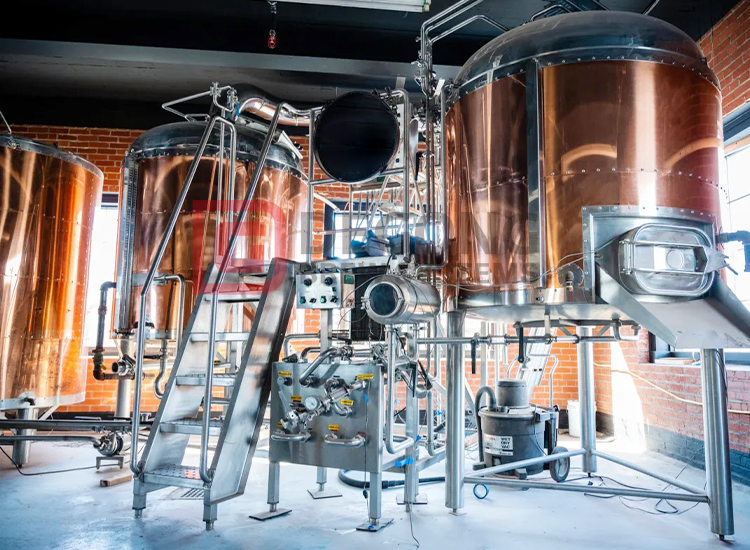

478


Contact us

The special attention we give in the final quality inspection of each work is also a guarantee of unparalleled reliability and robustness. If you have any needs or questions, please contact us.
