3000L Hot Sale Beer Bright Tanks Sake Tanks

This set of equipment uses food-grade stainless steel, and the cooling jacket uses honeycomb jackets. Different ratios of jacket heat exchange area can be set according to customer process requirements; sake tanks are currently mainly used in beer and wine industries.
Availability:
Quantity:
  • DEGONG-3000L
  • DEGONG
Product Description

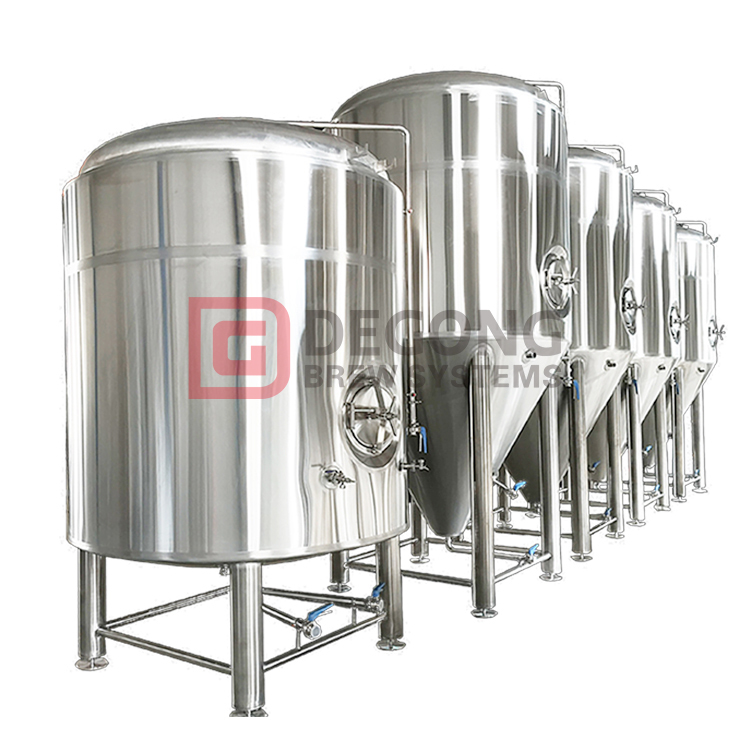

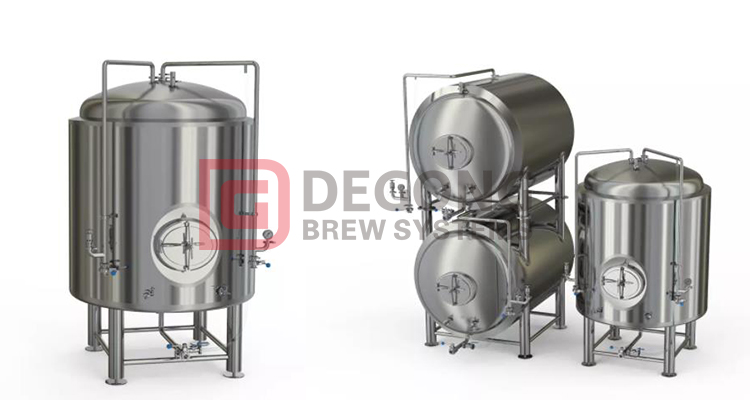

3000L Beer Bright Tanks


Product Details
  • The specifications range from 100L to 30000L, which can be customized according to customer needs.

  • Welded by high-quality stainless steel 304 or 316L.

  • The precision reaches the sanitary standard, the polished finish of the inner wall is less than 0.6 microns, and the outer surface is made of stainless steel (primary color, mirror polishing, etc.)

  • Imported polyurethane high-pressure foam insulation, cooling jacket adopts Miller plate, arch channel, corrugated channel and other jacket heat exchange methods.

  • It can realize automatic and semi-automatic control to ensure the accuracy and validity of process parameters and experimental results.

  • Temperature control is achieved by the refrigerant (usually alcohol-water) in the jacket around the tank. According to the size of the tank, it is generally divided into two or three stages of cooling.

59

Product specifications
Material: stainless steel 304 or 316

Thickness of inner body is 3mm, cladding is 2mm

Top breather valve, top hop additional port

Manhole; With rotary CIP spray balls

Sample valve; Thermal well; Mechanical pressure valv

Glycol solenoid valves; Bottom drain port and beer outlet

Dimple type glycol cooling jacket, cooling jacket thickness is 1.5mm

29

Parameter

Model

DG-3000L

Capacity

Useful capacity:3000L; Gross capacity:3750L

Material

SUS304

Application

Restaurant, bar, hotel, brewery

Out size

Ø2060*3800mm

Cooling method

Jacket section cooling

Thickness

Inner:3.0mm; External2.0mm

Outrigger

Ø159mm*4

Test pressure

0.2Mpa

Working pressure

0.2Mpa

Heat exchange area

4.3m2

Weight

750kg

31

37


Contact us

We can customize product specifications according to your requirements. If you have any needs or questions, please contact us.
