3 Piece Butt Weld Ball Valve | Butt Weld Valves

The closing part of the butt-welded ball valve is a sphere, which is a valve that relies on the sphere to rotate 90 degrees around the center line of the valve body to achieve opening and closing. Butt-welded ball valve is a new type of valve that has been widely used in recent years. This valve can be installed horizontally or vertically.
Availability:
Quantity:
  • DEGONG-4”
  • DEGONG
Product Description

3 Piece Butt Weld Ball Valve


Technical parameter
  • End type: butt welding

  • Material: SS316, SS304

  • Size: 1/4”, 3/8”, 1/2”, 3/4”, 1”, 1-1/4”, 1-1/2”, 2”, 2-1/2” ,3” ,4”

  • Working pressure: 1000PSI, PN63

  • Working temperature: -20~350°C (Stellite), -20~450°C (Ni 60)

  • Working medium: water, oil, gas, acid, steam, etc.

148

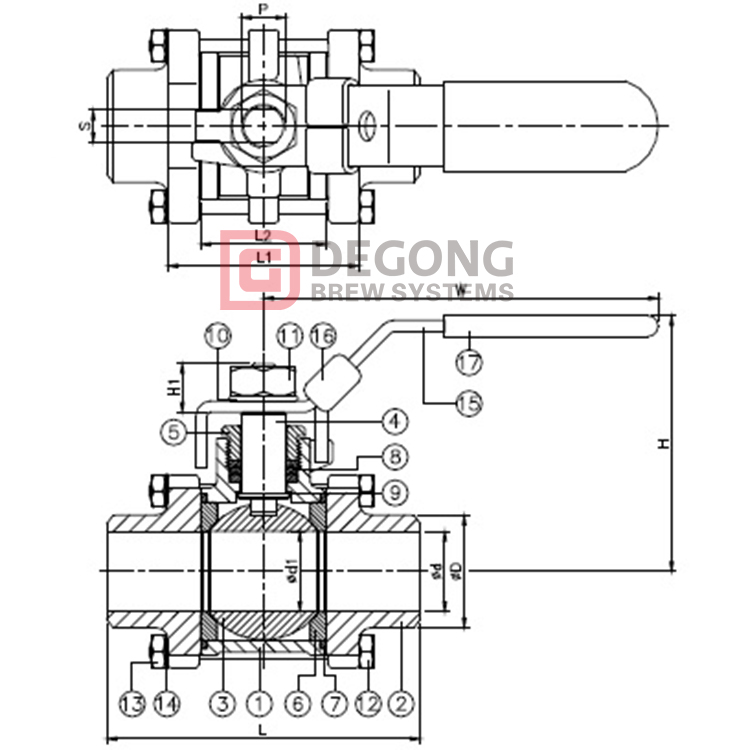

NPS d d1 D L L1 L2 H H1 W S P Torque (N-M) Weight(kg)
1/4" 0.31 0.5 0.53 2.54 1.4 0.85 2.2 0.37 4.02 0.2 5/16"UNC 39.8 0.9
3/8" 0.5 0.5 0.69 2.54 1.4 0.85 2.2 0.37 4.02 0.2 5/16"UNC 39.8 0.9
1/2" 0.59 0.59 0.87 2.6 1.5 0.94 2.24 0.41 4.02 0.2 5/16"UNC 44.3 1.1
3/4" 0.79 0.79 1.06 3.23 1.69 1.1 2.6 0.53 4.74 0.26 3/8"UNC 70.8 1.5
1" 0.98 0.98 1.34 3.74 2.13 1.38 2.99 0.61 6.24 0.31 7/16"UNC 88.5 2.4
1-1/4" 1.26 1.26 1.67 4.38 2.56 1.77 3.19 0.61 6.24 0.31 7/16"UNC 123.9 3.7
1-1/2" 1.5 1.5 1.91 5.14 2.95 2.17 3.86 0.69 7.4 0.35 1/2"UNC 168.2 5.3
2" 1.97 1.97 2.4 5.94 3.46 2.6 4.17 0.69 7.4 0.35 1/2UNC 203.6 7.9
2-1/2" 2.56 2.56 3.03 7.28 4.49 3.39 5.43 1.3 9.65 0.47 3/4"UNC 274.4 19.6
3" 3.15 3.15 3.54 8.35 5.2 3.94 6.06 1.3 11.42 0.47 3/4"UNC 442.5 32.8
4" 3.94 3.94 4.53 9.25 6.22 4.92 7.01 1.65 12.6 0.63 1"UNC 531 51.6

unit:in

144

Feature

1) Explosion-proof valve stem

2) Investment casting body

3) Ball groove pressure balance hole

4) Full aperture

5) Provide locking device

146

Advantage
  • The fluid resistance is small, and the ball valve is the smallest fluid resistance among all valves. Even the reduced diameter ball valve, its fluid resistance is quite small.

  • The thrust bearing reduces the friction torque of the valve stem, which can make the valve stem operate smoothly and flexibly for a long time.

  • The valve seat has good sealing performance. The sealing ring made of PTFE and other elastic materials is easy to seal, and the valve sealing capacity of the ball valve increases with the increase of the medium pressure.

  • The valve stem is reliable in sealing. Since the valve stem is only used for imitating rotation and not lifting movement, the packing seal of the valve stem is not easy to be damaged, and the sealing ability increases with the increase of the pressure of the medium.

  • Since materials such as polytetrafluoroethylene have good self-lubricating properties, the friction loss with the ball is small, so the service life of the ball valve is long.

  • The bottom-mounted valve stem and the convex step of the valve stem head prevent the valve stem from spraying out. If the valve stem seal is damaged due to fire, the convex step and the valve body can also form metal contact to ensure the valve stem seal.

  • Anti-static function: A spring is set between the ball, valve stem, and valve body, which can lead out the static electricity generated during the switching process.
