3 BBL Beer Brewing System Complete Microbrewery Equipment Electric Heating Brewhouse

3 bbl beer brewing system produced by us is a set of technological equipment for the production of "live" and filtered beer. Brew master make their beer attractive to consumers by unique brewing process and distinctive beer taste. If desired, they can be placed directly in places of consumption of beer: restaurants, pub, bars, hotels, tourist and shopping centers. Interpreter may be faced with polished brass, copper besides stainless steel. Also, the microbrewery is placed behind a glass partition that allows visitors to observe the process of making beer. This is an excellent design solution interior and a powerful marketing tool.
Availability:
Quantity:
  • DG-3 BBL
  • DEGONG
Product Description

3 BBL Beer Brewing System


BEER BREWING SYSTEM / MICRO BREWERY EQUIPMENT
System Components Specification
Milling System Miller 100kg/h
Heating System Electric heating Customized voltage
Brewhouse System Mash/Lauter & Whirlpool tank Heating jacket
Material: SUS 304/316 or Red copper
1 Thermometer / tank
Kettle
Heat-exchanger Plate type
Fermentation System Fermentation Tank Top manway/Side manway
Glycol cooling jacket
Yeast Adding Tank SUS304 Stainless Steel
Cooling System Glycol Tank With control system
Pump / valve
Cleaning System 50L CIP Acid Tank
Alkali Tank
Pump
Control System Control Cabinet Semi-automatic


The mashing tun/kettle is made out of stainless steel or copper and has a typical capacity of 5, 10, 15, 20, 25, 30 or 40hL (1hL or hectoLiter equals 100 liters).


If the capacity exceeds 500L, we recommend that you use steam heating. Heating is done with steam that heats the side and bottom of the cooking. Steam heating systems are a lot better than direct heating through gas or thermal oil as they are more powerful, very responsive, and prevent the mash from caramelizing and sticking to the bottom of the vessel. Furthermore a steam operated brew house gives a better "rolling boil" and a better acidity extraction from your hops.


Another important aspect in the brew house design is the location of the mixing mechanism (agitator) in the cooking tun. This mixer is driven by a motor is always located under the cooking tun. This is not only visually far more attractive, but its solves the problem that all breweries have which use motors located on top, namely the drip of grease into the beer. If this happens, it ruins the entire brew. With our systems, this can not happen.

Finally the mashing tun/kettle can be equipped with a number of additional accessories facilitating the brewing and cleaning operations.Welcome your inquiry!


845

DEGONG 3 BBL BEER BREWING SYSTEM


Advantages of 3 bbl beer brewing system
  • High cost performance.

  • Strict tank pressure test.

  • Good abrasion resistance material.

  • Energy conservation and pollution emissions.

  • Polishing accuracy up to Ra0.4μ m .

  • We all adopt SUS304 to produce our equipment. The inner jacket and seal head of the tanks are all 3.0mm. The external jacket is 2.0mm. It ensure the good pressure resistance and good abrasion resistance.


846

756

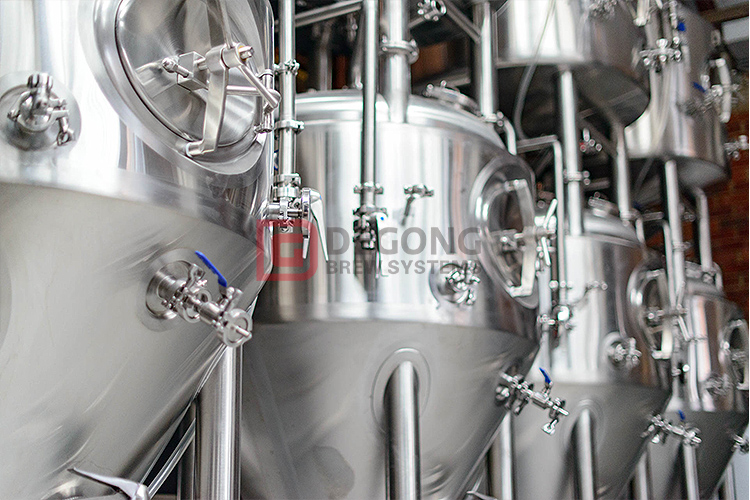

DEGONG 3 BBL FERMENTATION TANKS


Contact us

The special attention we give in the final quality inspection of each work is also a guarantee of unparalleled reliability and robustness. If you have any needs or questions, please contact us.
