3/8inch 3/4inch 1-1/4inch BSP Female Head 304 316 Stainless Steel Sanitary Repair Spray Ball Water Tank Cleaning Self-made

The cleaning spray ball adopts self-cleaning and self-lubricating design, which is used to clean the rotating nozzle itself and lubricate the bearing during work to ensure a longer service life and fully meet the hygienic requirements. It is mainly used for the cleaning of small and medium tanks in the pharmaceutical, food and beverage, chemical and other industries, or the equipment chamfering of barrels, tanks, reaction kettles, and tank containers.
Availability:
Quantity:
  • 1/4 Inch
  • DEGONG
Product Description

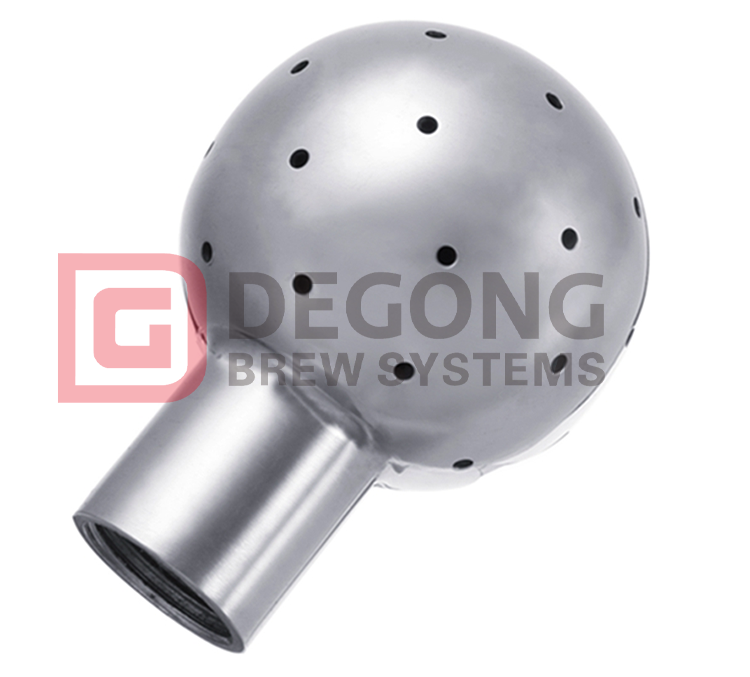

Internal thread rotating cleaning ball:

  • Model: 683985                                                  Material: Stainless steel

  • Ball diameter: 52.5mm                                      Height: 74.5mm

  • Thread connection: 1/2"                                   Cleaning diameter: 1m to 6m

  • Thread diameter: 0.75''                                     Flow rate: 15L/min (under 2kg pressure)

  • Pipe size: 1/2"                                                   Thread: internal thread


234


application:

  • It is widely used in food, beverage, wine, medicine, chemical and other industries.

    The main goal is to remove all materials accumulated on the tank to ensure sterility.

Features:

  • -Mainly used for cleaning small and medium-sized inner tanks, with a 360-degree coverage of the spray ball end and a cleaning radius of 1m.

  • -Good cleaning effect, low consumption, low energy consumption, comprehensive universal cleaning tank at any angle, instead of traditional static spray, small cleaning liquid volume and low pressure.

  • -Remove all materials that have accumulated on the tank wall to ensure that the tank is sterile.

  • -The maximum cleaning diameter can reach 1 to 6 meters.

  • -The working pressure is about 1.5 to 2.5 kg, which can achieve the ideal cleaning effect. (1 kg (force)=1bar=0.1Mpa=14.5psi)

5612

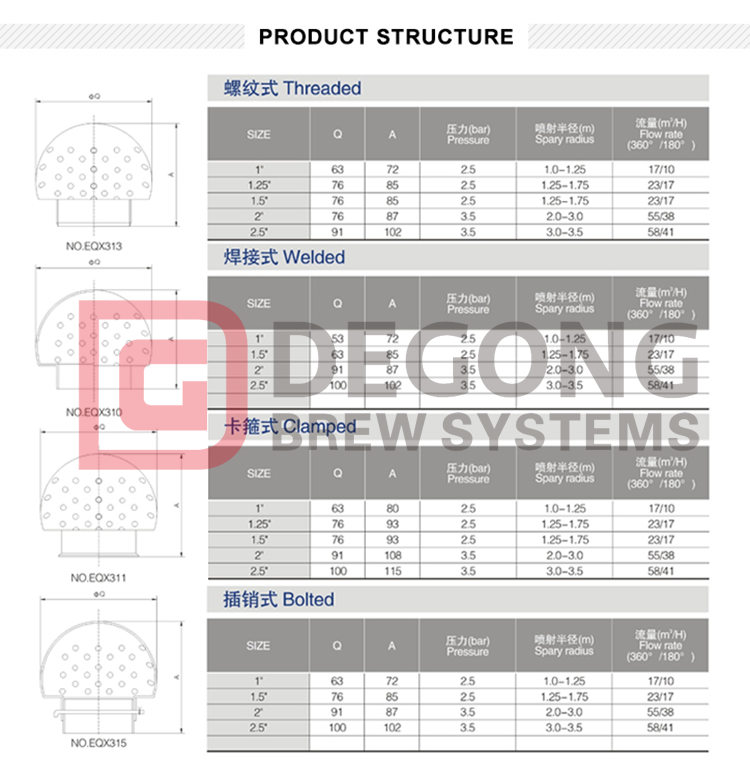

Technical specifications:

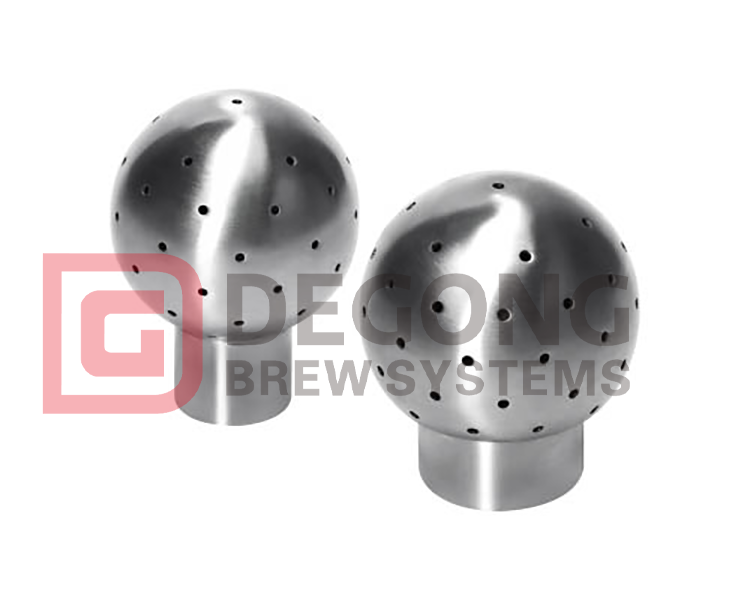

A fixed 360-degree water tank spray ball for cleaning, stainless steel 304/316 pin connected to the cleaning head.

Cleaning angle: 180°; 360°

Sphere options: 1) round ball; 2) elliptical ball

Size: 28mm / 91mm

Material: 316L/304

Connection method: internal thread/external thread (1/2"-2"BSP/BSPT), clamp (1"-2"), bolt (1"-2") ), welding (1"-2")

10117


If you are interested in our products, please contact us! DEGONG is committed to creating the most sophisticated and perfect products. If you want to choose a fixed spray ball, then we are your best choice.
