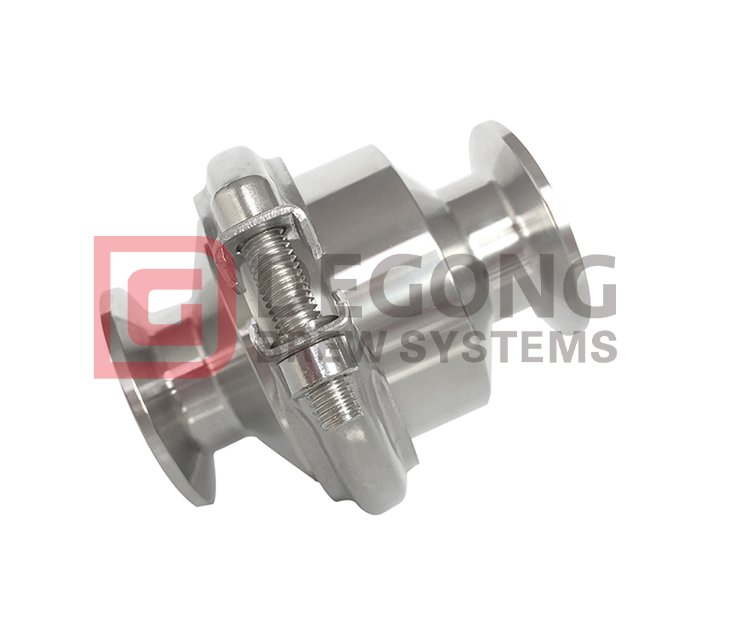

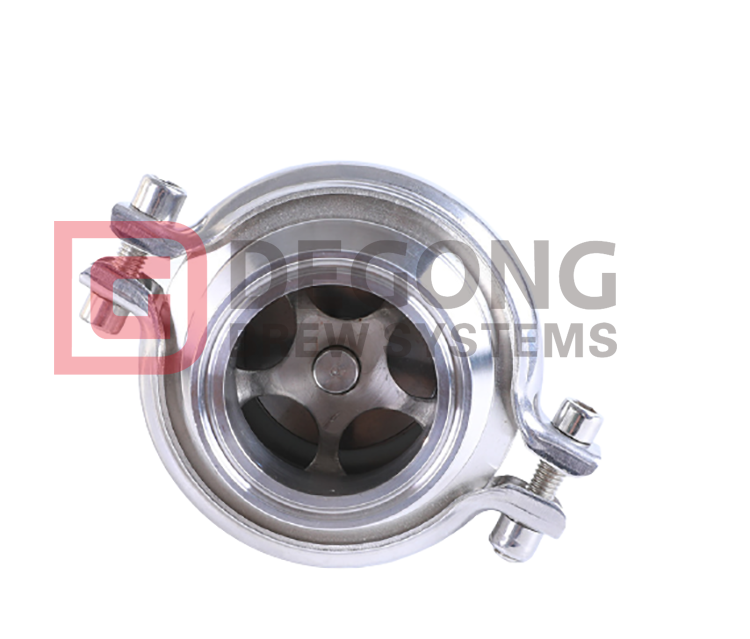

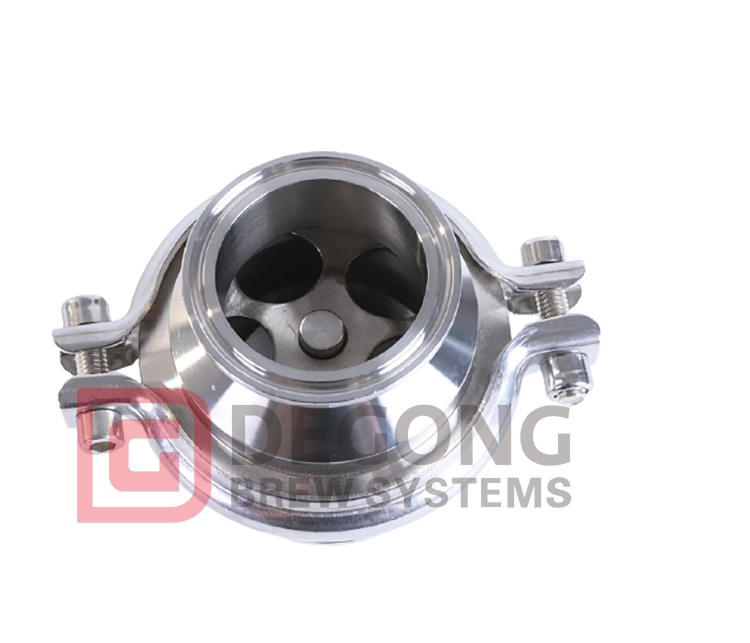

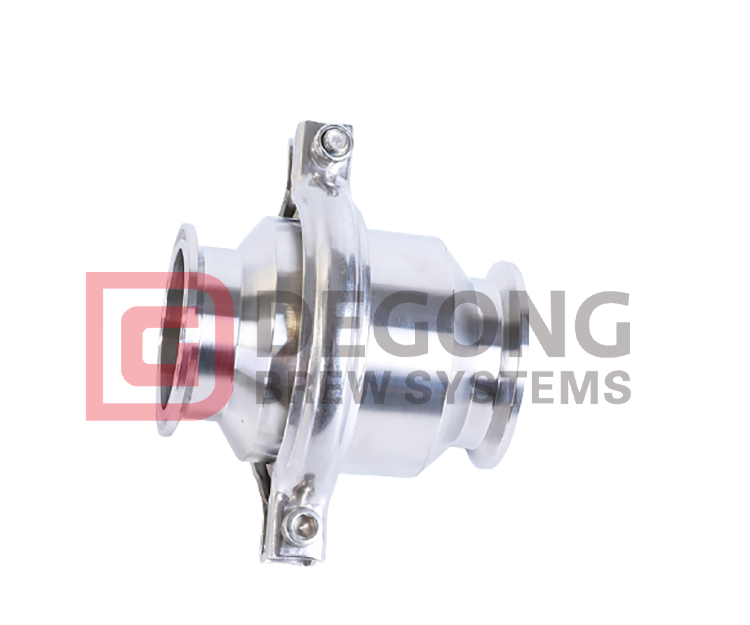

3/4inch Sanitary Stainless Steel DN15 Tri Clamp Check Valve Food Processing Beer Equipment

The function of this type of check valve is to only allow the medium to flow in one direction and prevent the flow in the opposite direction. Usually this kind of valve works automatically. Under the action of the fluid pressure flowing in one direction, the valve flap opens; when the fluid flows in the opposite direction, the fluid pressure and the self-coincidence of the valve flap act on the valve seat, thereby cutting off the flow.
Availability:
Quantity:
  • 3/4 inch

  • DEGONG

Product Description

Specification:

  • Type: ball valve, mixing valve

  • Power: pneumatic, manual, pneumatic, electric

  • Port size: DN10-DN300, 1/2"-10"

  • Structure: Butterfly

  • Standards: DIN, SMS, 3A, ISO, IDF, RJT, DS

  • Connection: union, clamp, welding, flange

  • Body material: SS304, SS316L

  • Sealing material: EPDM, nitrile rubber, silica gel, polytetrafluoroethylene


4548



Weld Check Valve
SS-V404
Material:SS304/SS316L
Gasket:EPDM,Silicone,Viton
Size:3/4"-4",DN15-DN100
Connection:weld,clamp,thread

Operate:Manual Pneumatic Electric


Union Type Check Valve

SS-V408
Material:SS304/SS316L
Gasket:EPDM,Silicone,Viton
Size:3/4"-4",DN25-DN100
Connection:weld,clamp,thread
Operate:Manual Pneumatic Electric


4644


According to the structure, it can be divided into three types: lift check valve, swing check valve and butterfly check valve:

1. Lift check valves are divided into two types: vertical and horizontal.

2. The swing check valve is divided into three types: single valve, double valve and multi valve.

3. The butterfly check valve is a straight-through type.

The above check valves can be divided into four types in connection form: threaded connection, flange connection, welding connection and wafer connection.


4950


Precautions:

1. When installing, pay attention to the direction of medium flow should be consistent with the direction of the arrow marked on the valve body.

2. Lifting vertical flap check valve should be installed on the vertical pipeline.

3. The lift-type horizontal flap check valve should be installed on the horizontal pipeline.


47

Degong products are sold all over the world. If you are interested in our check valves, please contact us!
