3/4" 19mm 304 Stainless Steel Sanitary Ball Valve Tri Clamp Ferrule Type Ball Valve

The three-piece ball valve is a relatively new type of ball valve. It has some advantages unique to its structure, such as frictionless switch, non-wearing seal, and small opening and closing torque. This can reduce the size of the actuator. Equipped with a multi-turn electric actuator, it can realize the adjustment and close shut-off of the medium. Widely used in petroleum, chemical, urban water supply and drainage and other working conditions that require strict cut-off
Availability:
Quantity:
  • Sanitary Ball Valve

  • DEGONG

Product Description

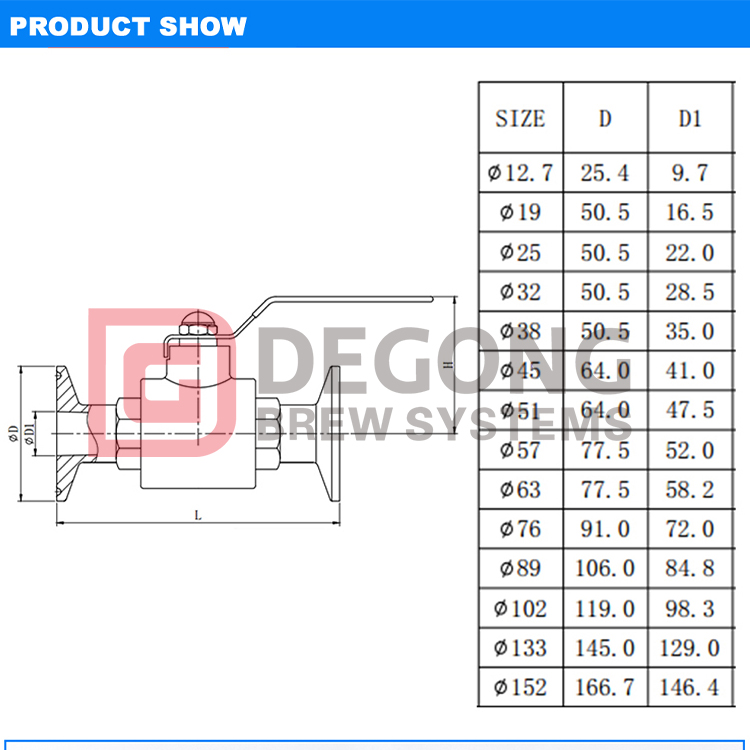

3/4" 304 Sanitary Ball Valve

Material: 304 stainless steel
Size: 3/4”
Pipe OD: 19 mm
Pipe ID:16mm
Diameter of Chuck: 50.5mm
Length of valve body: 104mm
Operating Pressure: 1.6Mpa, 229PSI
Can be applied to the pharmaceutical and food industries.


36

3334353738394041

Advantage:

 Low fluid resistance
 Simple structure, small size and light weight
 Close and reliable
Convenient operation, fast opening and closing
 Easy maintenance
 When fully open or fully closed, the sealing surface of the ball and the valve seat is isolated from the medium,   and the medium will not cause erosion of the valve sealing surface when the medium passes.
 Wide application range, flange ball valve, flange gate valve, knife gate valve

If you need other size or standard, please contact us freely.
