3.0" Tri-Clamp Ball Valve Sanitary Valves for Sale

The working principle of the ball valve is to make the valve unblocked or blocked by rotating the valve stem. The ball valve switch is light, small in size, can be made into a large diameter, reliable in sealing, simple in structure, easy to maintain, the sealing surface and the spherical surface are often closed, and it is not easy to be eroded by the medium.
Availability:
Quantity:
  • DEGONG-3.0"

  • DEGONG

Product Description

3.0" Tri-Clamp Ball Valve


Our heavy-duty sanitary three-clamp ball valve is made of 304 stainless steel and provides full bore, unobstructed flow. The 3-piece package, 304 stainless steel ball and PTFE valve seat can withstand pressures up to 1000 PSI. The valve can be installed in any position with a lockable handle that swings outward from the center to prevent accidental activation.

The valve is rebuildable and can be easily disassembled and reassembled for cleaning and disinfection.

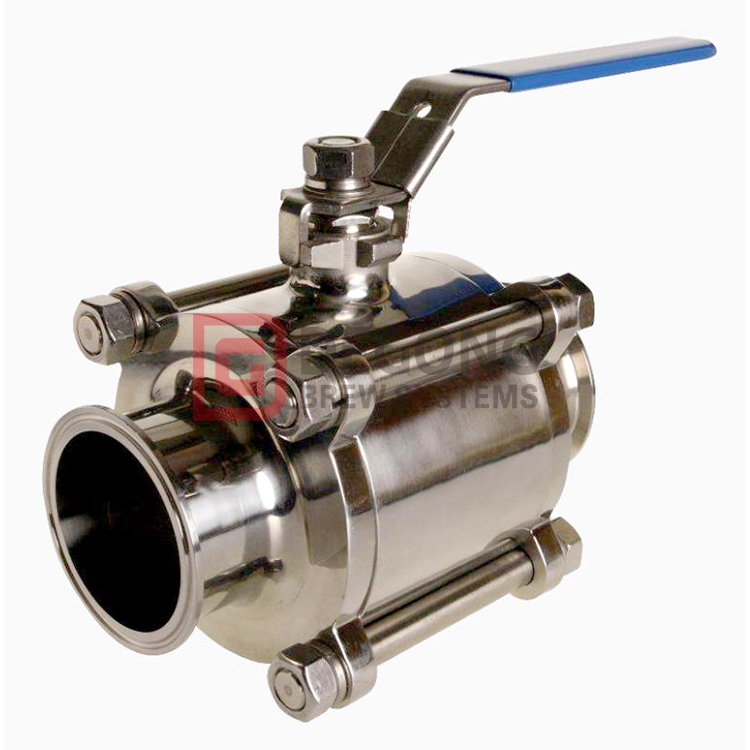

132

DETAILS

1.5" VALVE 2.0" VALVE 3.0" VALVE
CONNECTION TYPE:
Tri Clamp Tri Clamp Tri Clamp
CONNECTION SIZE:
1.5 in 2.0 in 3.0 in
DIMENSIONS
Length:
Width:
Height:
3.00 in (76.20 mm)
5.00 in (127.00 mm)
9.00 in (228.60 mm)
3.50 in (88.90 mm)
5.50 in (139.70 mm)
9.75 in (247.65 mm)
5.50 in (139.70 mm)
8.25 in (209.55 mm)
14.00 in (355.60 mm)

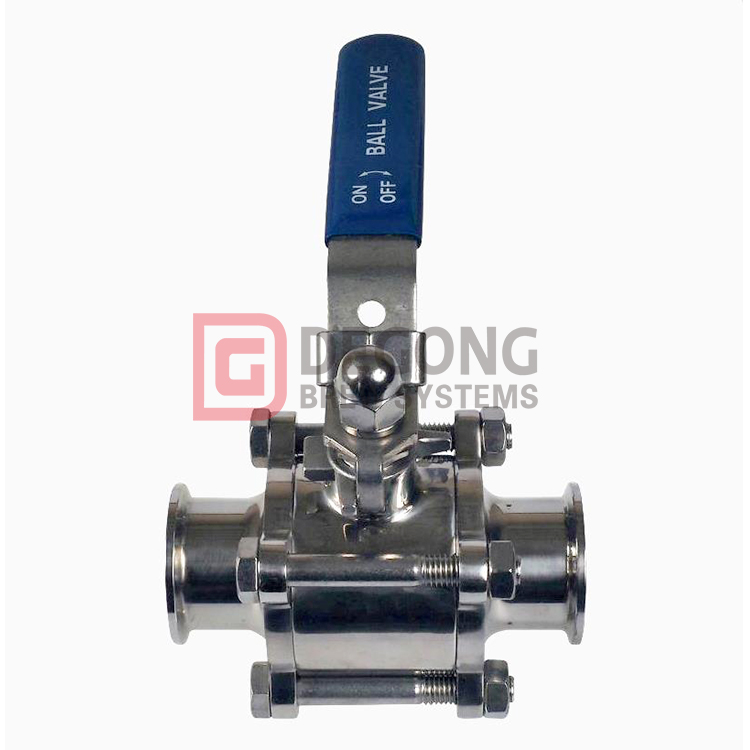

131

Advantage
  • The fluid resistance is small, and its resistance coefficient is equal to that of a pipe section of the same length.

  • Simple structure, small size and light weight.

  • It is tight and reliable. The sealing surface material of the ball valve is widely used in plastics and has good sealing performance. It has also been widely used in vacuum systems.

  • Convenient operation, rapid opening and closing, only need to rotate 90° from fully open to fully closed, which is convenient for remote control.

  • Convenient maintenance, simple structure of the ball valve, generally movable sealing ring, easy to disassemble and replace.

  • When fully open or fully closed, the sealing surface of the ball and the valve seat is isolated from the medium, and the medium will not cause erosion of the valve sealing surface when the medium passes.

  • It has a wide range of applications, with a diameter ranging from a few millimeters to a few meters, and can be applied from high vacuum to high pressure.

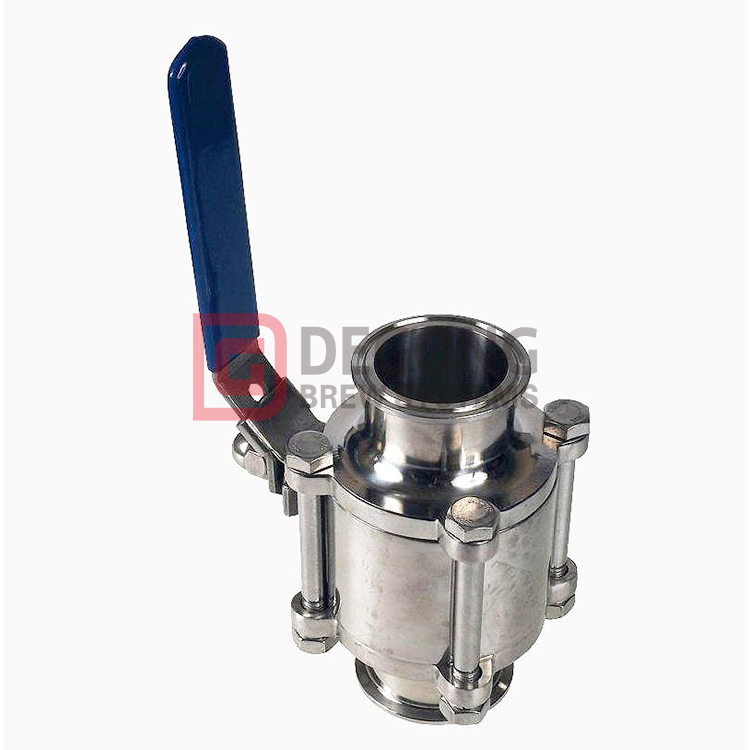

133

Contact us

We can customize product specifications according to your requirements. If you have any needs or questions, please contact us.
