2HL Homebrew Red Copper Barrels in The Brewing Room for Sale

The Brewery system ranges from 200L to 1000L. Brewery system can be placed in: restaurants, bars, bars, hotels, tourism and shopping centers. In addition to copper, interpreters can also face polished brass, copper and stainless steel.
Availability:
Quantity:
  • DEGONG-200L
  • DEGONG
Product Description

2HL Homebrew Red Copper Barrels


The 200L Brewery System is between home brewing and micro-brewing equipment in terms of capacity, and is a set of process equipment for the production of heavy craft beer. Due to its low cost and limited space requirements, it is indeed a good springboard for brewers to further realize their brewing dreams by selling beer to the market. Through the Brewery System, Brew master makes their beer attractive to consumers with its unique brewing process and distinctive beer preferences.

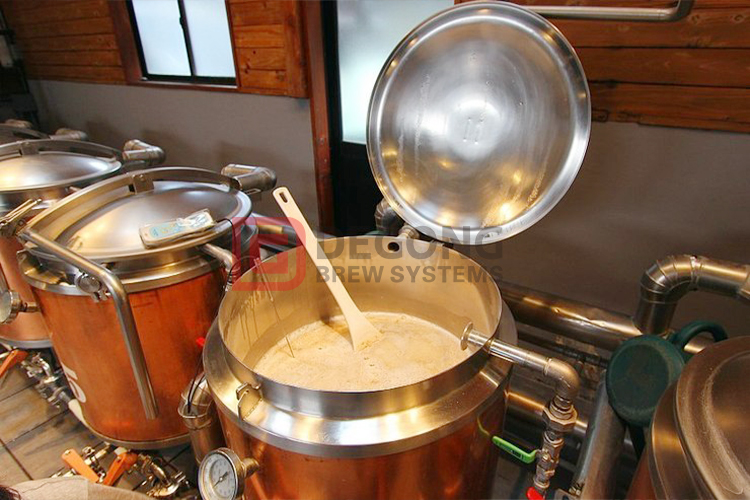

64

Mixed wort


2HL Brewery System Specification
Output/Brew 2HL
Brew/Week 2~6
Output/Week 4~12HL
Electric Supply 3phase/380(220, 415,440…)v/50 (60)Hz
Single Phase/ 220(110, 240…)v/50(60)Hz
Heating Source Electric/Steam
Area Request >25M2

Note: 1HL=100L; 1Gallon=3.7854L; 1Barrel (BBL) =117L;

65

Pour the wort as part of the filtering process


2HL Brewery System Configuration
General specification for 2HL brewery equipment
Name Components Capacity Specification
Grain Milling Unit Rolling Miller 80~150kg/hr Double roller
Power:1.1Kw
Noise:45±3db
Brewhouse Unit Mash/Lauter tun 200L (total 250L) Side mounted grain outdoor with grain chute
Laser cutting V-wire False Bottom
Kettle/Whirlpool Tun 200L (total 260L) Electric heating; Power: 18kw
Tangential whirlpool inlet
Sanitary leveling sight glass
Yeast feeder 10L Tri clamp aeration port with ball valve
Heat exchanger 3M2(Effective area) Completely 304 SS Corrugated plates
Pump 3M3 ABB, Sanitary SUS304, VFD control
Pipe and fittings As design completely SS304
Fermentation unit Fermenter 400L(total 500L) Dimple cooling jacket on cone and bottom
Top manway
60 degree cone bottom
Full sanitary sampling valve
Carbonation port and level tube for special request
Filtration unit(optional) Plate-frame Filter Max Flow: 1.5T/h Power: 1.1kw
Cloth type, 10 layer
Different material will be different for the flow
Bright beer tank Bright beer tank 400L(total 440L) Dimple cooling jacket on cone and bottom
Level tube for checking
Top manway
Full sanitary sampling valve
Carbonation port with tri clmap carbonation stone
Glycol Chilling Unit Glycol Water Tank 500L(total 550L) Insulated conical top and sloped bottom
Chiller 3HPx1PCS Cooling Capacity: 6600Kcal/3HP
Installed Power:3.3kw
Noise:70-80db
Refrigerant: Freon R404A ,R410A
Coperland compressor
PVC pipe As designed Solenoid valves for glycol inlet to tanks are included
Glycol water pump 3M3 Sanitary SUS304, VFD control
Control unit Brewing and fermetation process Controlling Floor type PLC control with touch screen for special
PC or  mobile remote control for special request
CIP CIP pump with VFD 3M3 VFD control
Keg cleaning 2 head 20-30kegs/hr Heating: Electric, Power: 15kw
Keg filling A coupler Manual Coupler for filling beer
Bottling line 4 head 160-180 bottles/hr Manual
Others Option Can be Customized Auger System
Grain Case
Grist Hydrator
Piping flow panel for Brewhouse
Brewhouse Separate PLC Controller

66

The remaining malt after extracting the wort


Contact us

We can customize product specifications according to your requirements. If you have any needs or questions, please contact us.
