280 Horsepower Water Cooled Screw Chiller Is Used in The Cooling Industry

Industrial water-cooled screw chillers are widely used in many industries such as plastic and rubber manufacturing, electronics production, electroplating, medical chemistry, ultrasonic cooling and printing business, and are also widely used in hotels, theaters, office buildings and other commercial places and shopping centers.
Availability:
Quantity:
  • 280 Horsepower Water Cooled Chillers

  • DEGONG

Product Description

280 Horsepower Water Cooled Chillers


Applications

Industrial water-cooled screw chillers are widely used in many industries such as plastic and rubber manufacturing, electronics production, electroplating, medical chemistry, ultrasonic cooling and printing business, and are also widely used in hotels, theaters, office buildings and other commercial places and shopping centers.

They can provide accurate required temperature and stronger cooling capacity and higher power for modern industrial manufacturing, greatly improving efficiency and product quality. Simple operation, reasonable design and high quality, it is the best choice for modern industry.


Voltage
3PH 380V 50~60HZ
Cooling Capacity
kacl/h
853939.8
kw
991.8
Total Input power
kw
190
Max running current
A
319

Refrigerant
Type
R22(R407C)
Volume(kg)
154
Control method
Outside the balanced thermal expansion valve

Compressor
Type
Semi-hermetric screw
Power(kw)
189.4
Starting Method
Y-△
Energy adjustment range
0-25%-50%-75%-100%
Running current
318.6

Evaporator
Type
Dry-type shell-tube heat exchanger
Freezing water volume(m³/h)
150
In/Ot pipe size (Inch)
6

Condensor
Type
Shell and tube
Freezing water volume(m³/h)
186
In/Ot pipe size (Inch)
5*2
Dimensions
L*W*H(mm)
4250*1320*2150
Unit weight
kg
4230
Operating weight
kg
4560

Features

  • The screw chiller adopts imported screw compressor, which is efficient, low noise, energy saving, durable and reliable in operation.

  • The condenser and evaporator adopt high-quality and high-efficiency copper pipes to increase the heat exchange area and improve the cooling capacity.

  • The chilled water temperature has a wide variable range to meet industrial requirements.

  • The LCD touch screen is controlled by PLC microcomputer, which is easy to operate.

  • Safety device: compressor overheat protection, overload protection, high and low pressure protection, antifreeze protection, flow protection, phase sequence/phase loss protection.

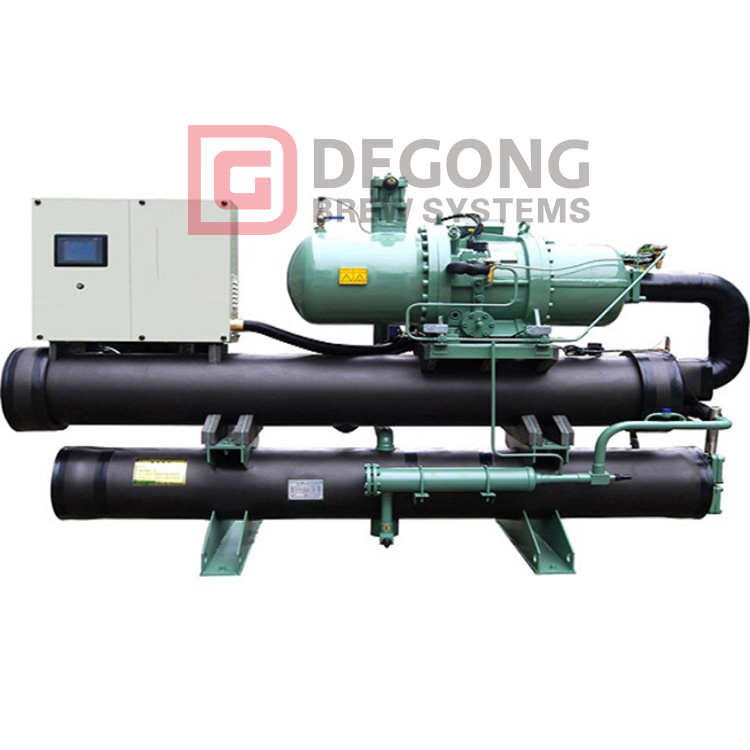

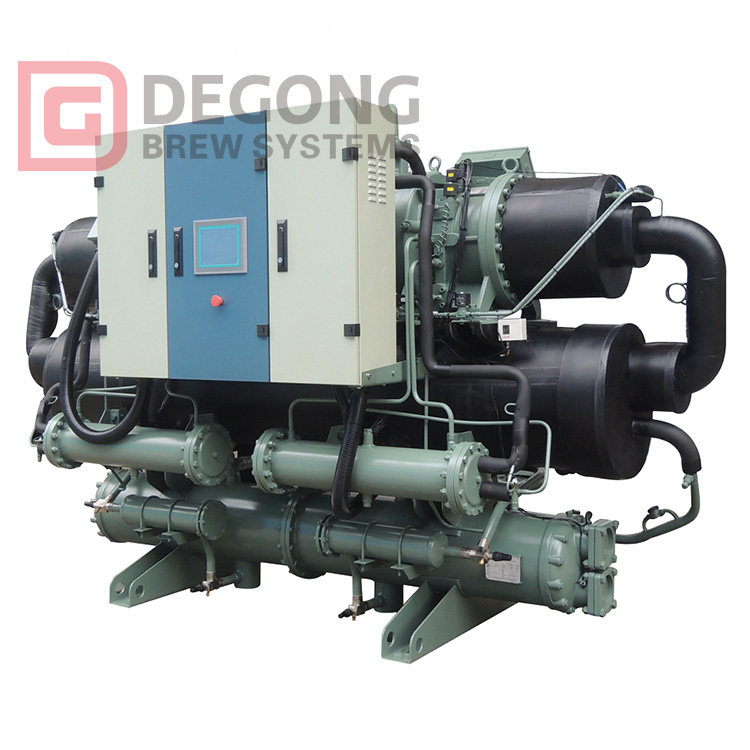

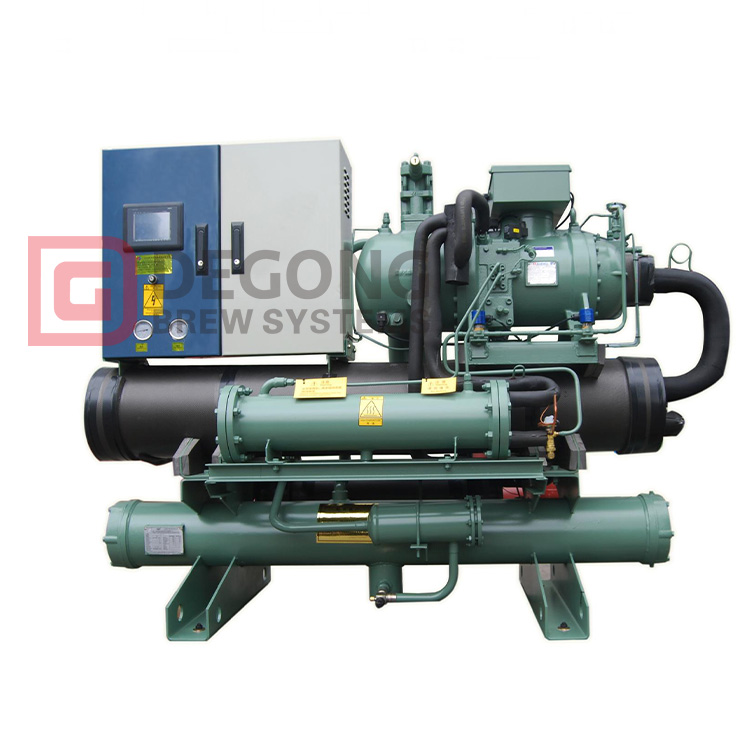

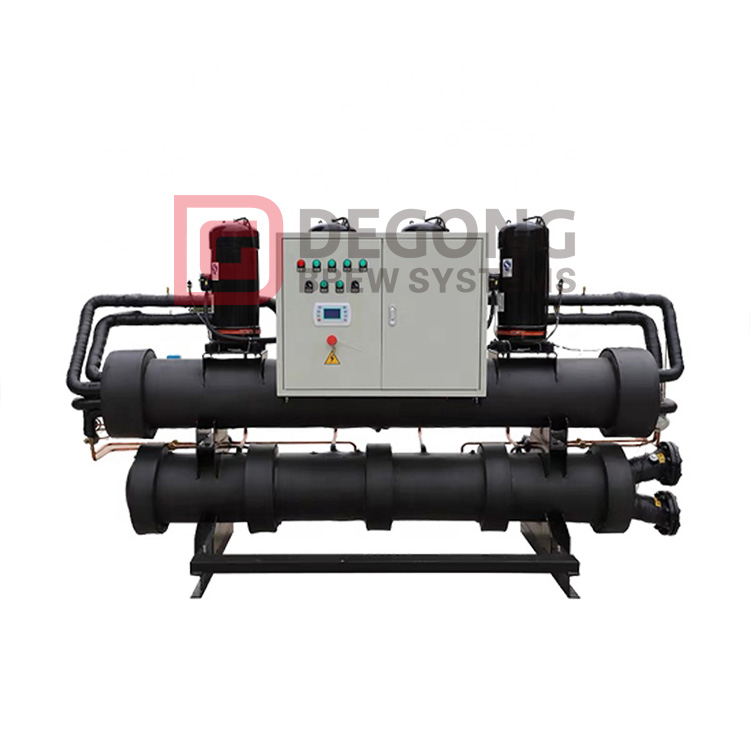

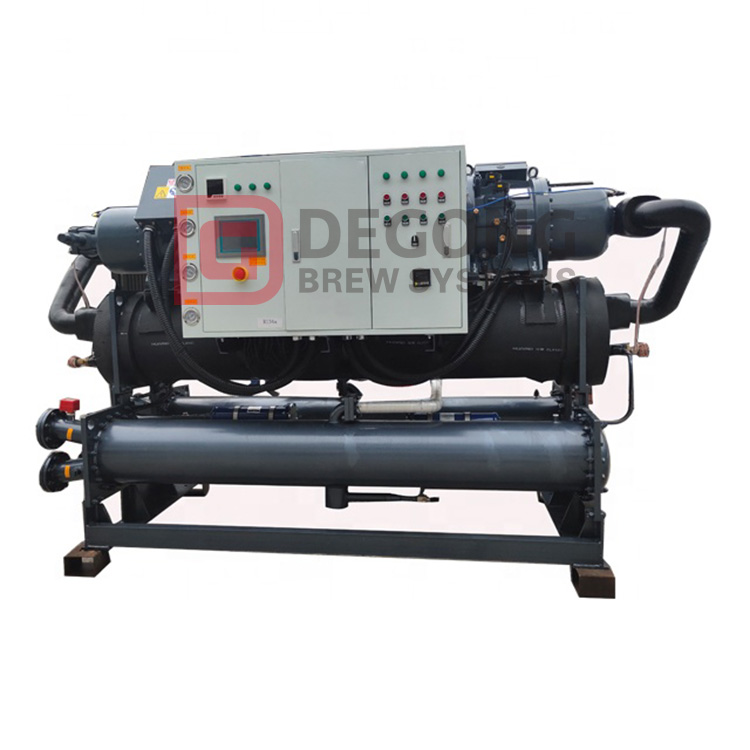

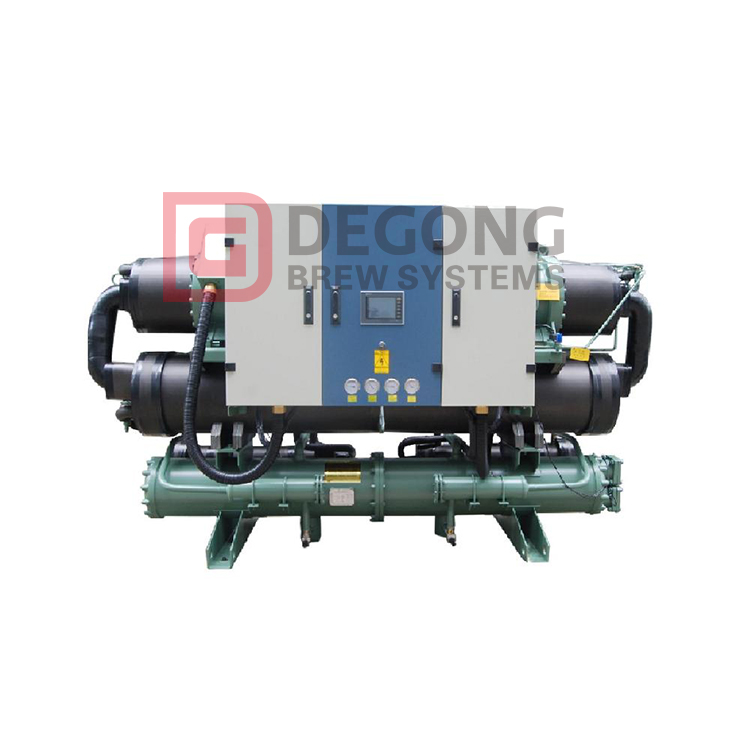

Products Show

129124125128126127

Package

  • Multiple packaging: Proved by compression and throwing tests. And it is highly safe.

  • Plywood box packaging: high blast resistance, ring compression strength and tear strength.

  • Wooden frame parking: can withstand the test of damp, with high blast resistance and ring pressure strength.


We hope to establish good business relations with customers through sincere contact and cooperation. The company's aim is to supreme quality and credibility, and sincerely welcome domestic and foreign partners.


The special attention we give in the final quality inspection of each work is also a guarantee of unparalleled reliability and robustness. A wide range of models can meet the various requirements of each market and ensure that you can always find a solution that suits you.


We can customize product specifications according to your requirements. If you have any needs or questions, please contact us.
