20HL High Quality Cylindrical Conical Fermentation Tank Cooling Jacketed Fermenter

Cylindrical-conical fermentation tank (CCT) is a tank that mainly ferments alcohol and converts value into beer. This happens with the help of hop yeast. The structures of the tanks are named after them. Usually those are tanks with rounded tops, cylindrical and conical bottoms, and sharp tops.
Availability:
Quantity:
  • DG-20HL
  • DEGONG
Product Description

20HL Conical Fermentation Tanks


They are usually insulated and have cooling jackets on the cylinder and bottom. In most cases, these tanks work under pressure, so they are equipped with safety accessories. Their standard equipment also includes a cleaning device and a manhole for access to the interior. This structure of the tank and its hygienic design allow beer fermentation to be completed without contact with the external environment and prevent the final hop yeast from being contaminated by unwanted strains.


At first, the fermentation process was violent, and a large amount of carbon dioxide and heat were separated. Through the safety armature, the carbon dioxide is adjusted to the required amount. The cooling jacket is used to control the temperature of beer fermentation and keep it at the level required by the brewer. The special tank bottom design helps to collect the residue of hop yeast and separate it from the beer.


According to the capacity and demand of the brewery, CCT can be manufactured in various volumes and sizes, as long as it maintains the main geometric shape of the CCT. These storage tanks can also be installed inside and outside the building when needed or when the capacity requires a larger size. The external installation structure allows normal operation under external atmospheric conditions.


At the same time, we can meet all industrial requirements for durability and effectiveness.

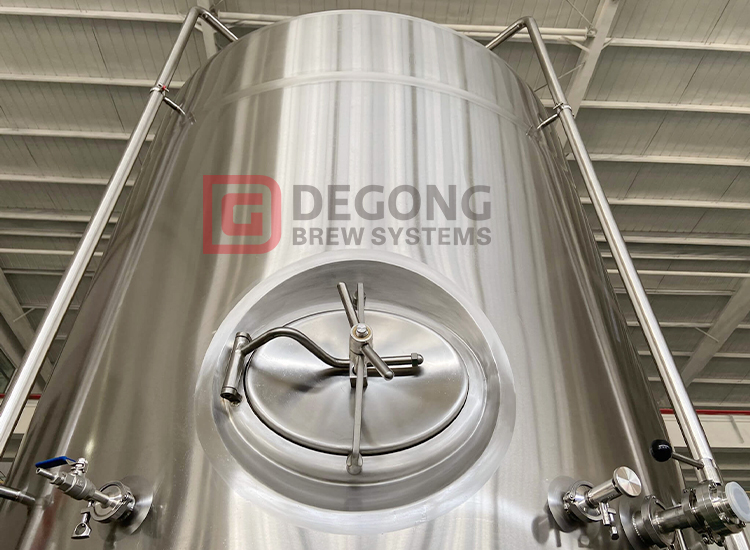

61


Volume Working Volume Overall diameter Total height
Vmax, hl V, hl Dext, mm Hmax, mm
13 10
1100 3100
21 16
1400 3200
25 20
1300 3850
32 25
1550 3650
38 31
1600 3900
51 40
1600 4650
63 50
1750 4800
74 60
2000 4600
80 70
2000 4850
100 80
2000
5600
120 100
2150
5800
158 126
2150
7050
195 156
2350
7200
251 201
2350
8700


78


Vessel design data
  • Working pressure: 3 bar

  • Working temperature: -2°C +30 °C

  • Internal surface finish (roughness): Ra < 0,8 m

Cooling jacket design data
  • Working pressure: 3 barg

  • Working temperature: -10°C +30 °C

Basic completion
  • Top/Side manways

  • Pressure and vacuum safety valve CIP/CO2 pipeline with manometer and butterfly valve, spray ball, bunging valve

  • Temperature control

  • Cooling jackets

  • Sample valve

  • Beer outlet with butterfly valve

  • Yeast outlet with butterfly valve

  • Polyurethane insulation with welded cladding

  • Adjustable pipe legs


80


Contact us

The special attention we give in the final quality inspection of each work is also a guarantee of unparalleled reliability and robustness. If you have any needs or questions, please contact us.
