20HL 2000L Stainless Steel 3 Vessels Brewhouse Commercial Beer Brew System Turnkey Brewery

DEGONG’s 3-Vessel Brewhouses are designed to deliver best-in-class brewing quality, efficiency, yield and simplicity for today’s rapidly growing craft breweries. DEGONG’s standard 3-Vessel brewhouse design consists of an individual Mash Tun and Lauter Tun with an integrated Brew Kettle & Whirlpool. Utilizing DEGONG’s best-in-class automation & controls to maximize efficiency and versatility, these 3-Vessel systems are the perfect solution to meet your brewing needs. DEGONG’s 3-Vessel Brewhouse systems are available with several options to help deliver brewing efficiency, control & automation, and overall flexibility.
Availability:
Quantity:
  • DG-20HL
  • DEGONG
Product Description

20HL Turnkey Brewery


Configuration
  • Malt Milling System

Particle adjustable rolling crusher

Flexible or steel auger for optional


  • Brewhouse System

Every Weld Blended and Finished to a Smooth Sanitary Finish

Stainless steel brewing platform & integrated stairs or ladder with adjustable footpads

Stainless steel hard piping and brewhouse manifold with butterfly valves, Sight glass

Stainless steel steam condensation stack with spraying nozzles.

Sanitary centrifugal pump for mash, wort or hot water transfer

Fixed speed or various speed agitator and rake for efficient lautering and spend grain removing

High Efficiency multi-pass plate type heat exchanger with thermometer and oxygenate aeration stone port (stone not included)

Control panel in stainless steel with digital control

Compact- Space Saving and flexible Brewing Configurations

Eelectric heating through electric flange

Standard Thermometers and Thermawell Adapters

VFD controlling for pumps and motors

Level gauge


  • Fermentation System

Standard stainless steel conical cylindrical fermentation tanks

Single size as brewhouse is common used in restaurant

Tanks quantity is exactly calculated by fermentation cycle for various beers

All manhole, valves, pressure gauges, fittings etc are included


515


Features
  • Complete configuration, new and high quality;

  • All tanks are of certified stainless steel (304,316) material;

  • All tanks are insulated by argon arc welding, and the inner tank is pickled and passivated or mirror polished;

  • All steam heated beer brewing tanks are water and pressure tested upon completion. The pressure test is 2-4bar;

  • Pneumatic part, electrical part and operation part adopt advanced world famous brand components;

  • The closed appropriation system improves runoff performance;

  • Variable speed drives on pumps, motors and agitators;

  • Stainless steel working platform, good integrity, no rust, long life;

  • Stable quality, high performance and strict quality control.


518

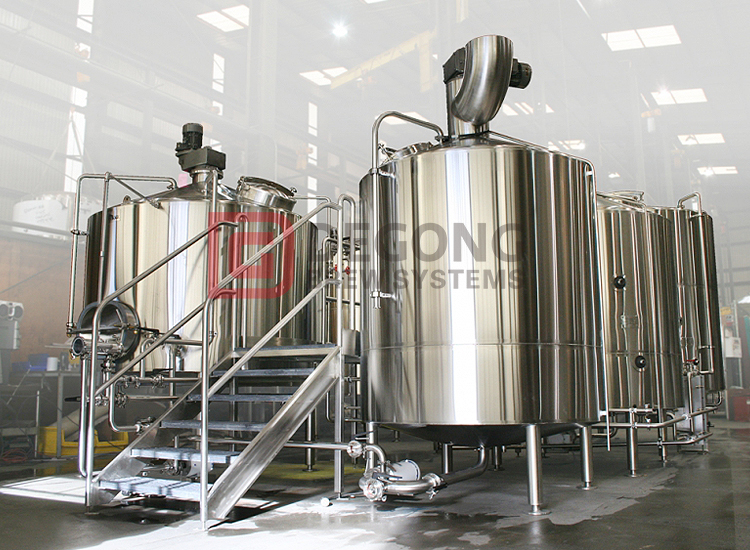

DEGONG 3 vesels brewhouse overlooking


Contact us

The special attention we give in the final quality inspection of each work is also a guarantee of unparalleled reliability and robustness. If you have any needs or questions, please contact us.
