20BBL Stainless Steel Bright Beer Tank Beer Serving Tank Maturing Tank

Brite Tank improves clarity while allowing you to transfer yeast in a more complete way. When you pull the yeast out of the cone, it will leave a layer of yeast on the walls and in the cone. Due to similar costs that have a significant impact on beer clarity, this yeast prevents other yeasts from swarming to produce more beer.
Availability:
Quantity:
  • DG-20BBL

  • DEGONG

Product Description

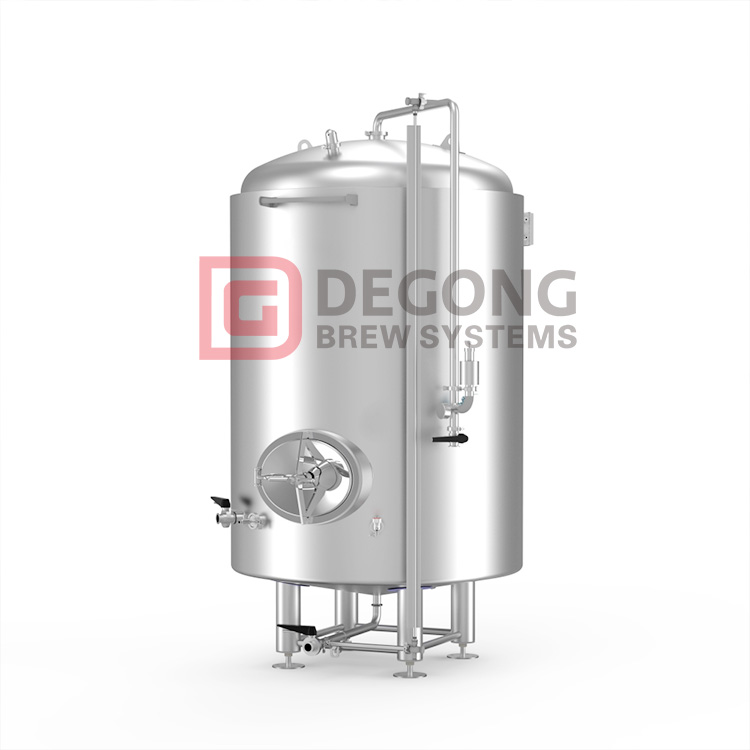

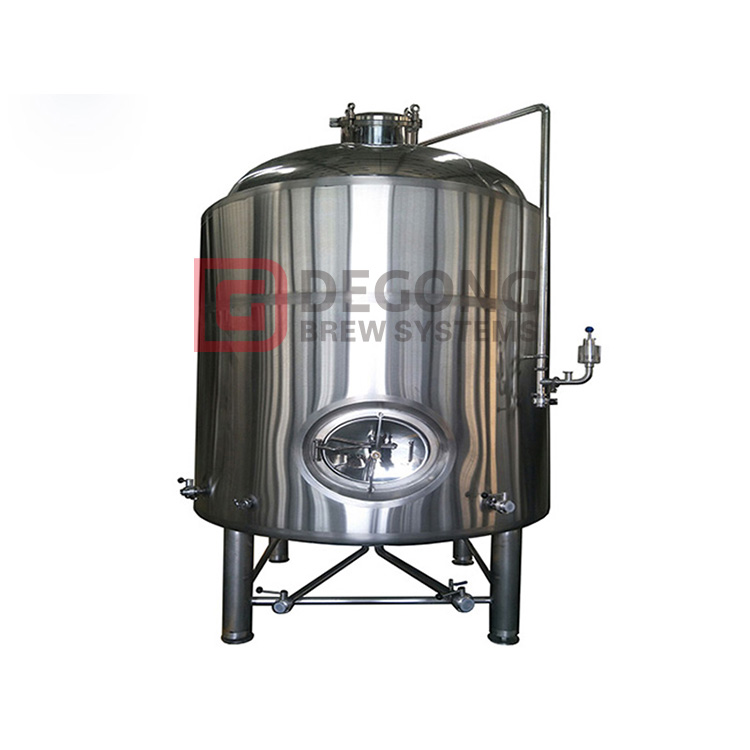

20BBL Bright Beer Tank


Product parameter
Capacity Cylinder (OD x H) OAH Inner Thickness
7BBL 1050 x 950mm 1910mm 3mm
10BBL 1100 x 1350mm 2360mm 3mm
15BBL 1300 x 1500mm 2610mm 3mm
20BBL 1350 x 1750mm 2910mm 3mm
30BBL 1500 x 2100mm 3340mm 3mm
40BBL 1700 x 2100mm 3420mm 3mm
50BBL 1750 x 2450mm 3800mm 3mm
60BBL 1800 x 2800mm 4160mm 3mm
80BBL 2100 x 2600mm 4250mm 3mm
100BBL 2200 x 2950mm 4650mm 3mm


125

57

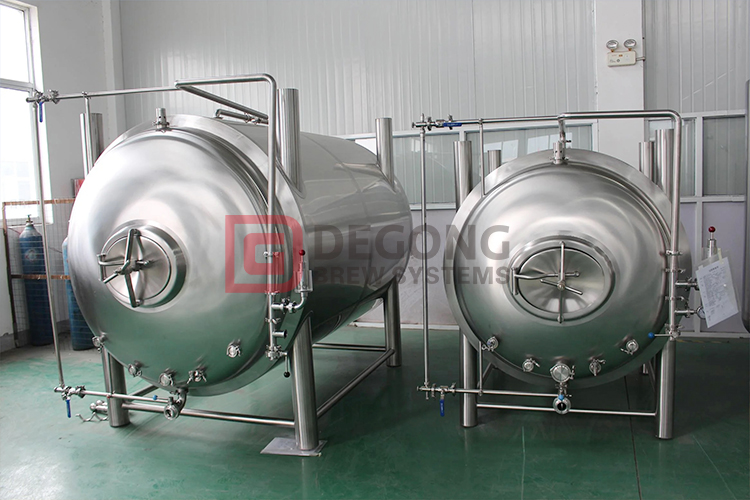

DEGONG horizontal beer brite tanks

Features
Bright Beer tank/Serving tank/Maturation tank/Lagering tanks
Useful capacity/volume 7-100BBL Forhomebrew,pub/restaurant brewery, micro breweyr plant
Type Vertical/horizontal Frame-system for positioning of horizontal tanks at several levels above each other
Interior&Exterior material Stainless steel304/316 Food and sanitary material, easy to clean and maintain
Insulation Polyurethane Thickness corresponding to the size of the tank and the environment
Cooling method Liquid/Air cooled

Double walled tank with glycol

Un-insulated tank used in a temperature controlled room

Cooling jacket Dimple/cooling coil Stainless steel cooling jacket
CIP Spray ball &CIP arm Clamp connection, 360° thorough cleaning
Temperature control PT100/Bimetallic thermometer Insulated with PT100, display & control through digital control cabinet Un-insulated with Bimetallic thermometer
Pressure relief valve Stainless steel 304 Prevent the tank from over-pressuring, allow a vacuum relief
Manway Stainless steel 304 Top manway/ side manway/ Clamp manway/Flange manway
Sampling valve Stainless steel 304 Sampling &testing
Pressure gauge
Display pressure level
Safety valve Optional On top of the tanks, normally for tank above 2000L
Carbonization Optional Special jet for carbonation of beverages from CO2 bottle
Level indicator Optional Cleanable and sanitizable glass/hose level indicator
Ladder Optional Stainless steel ladder for large capacity tanks

2629
