|Output / Brew||20BBL|
|Brew / Week||6~12|
|Output / Week||120~|
|Electric Supply||3phase/380(220, 415,440…)v/50 (60)Hz|
|Single Phase/ 220(110, 240…)v/50(60)Hz|
|Heating Source||Electric/Steam/Directly Fired|

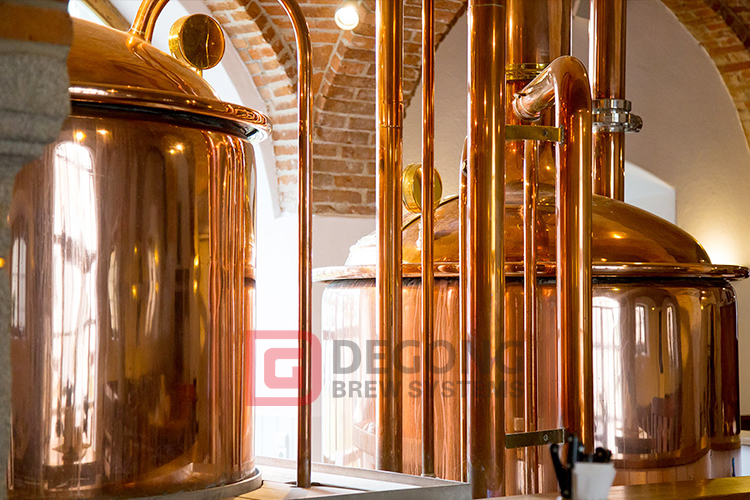

20BBL copper fermentation equipment
|Standard winery configuration|
Malt/filter barrel with side grain output channel
Brew Kettle/Whirlpool vessel with integrated steam jacket and temperature control
Semi-automatic control with PLC and remote access support
With VFD control
304 sanitary pump with integrated temperature 304 stainless steel plate heat exchanger control
Manual sanitary butterfly valve
Ergonomic and efficient copper or 304 stainless steel brewing station with easy access to all vessels and brewing functions
Integrated CIP on-demand system
Fully automatic PLC control system hydrothermal
Tank-designed and sized for double brewing efficiency
Cold liquid tank-fully insulated and integrated
Mash / Lauter Tun Rakers
Pneumatic automatic butterfly valve
All tank materials are made of copper or 304 stainless steel
Made of copper or 304 stainless steel operating platform and stairs
1~60bbl volume system available
Grain mill and screw conveyor (optional)
Plate heat exchanger
Stainless steel 304 pump
Automatic and semi-automatic control are available
PLC or mobile control available
|Beer fermentation tank|
The fermentation tank is widely used in beer production lines. It can be used as both a fermentation tank and a storage tank.
2. Structure and advantages
1) The tank has a pan top, a cylinder and a 60-70° cone bottom. The tank has an interlayer and a cooling jacket. The tank body, upper and lower heads (or taper) are all treated with spinning R-angle. The inner wall of the tank is mirror polished, and the finish is Ra≤0.4μm. The insulation material is made of high-efficiency polyurethane foam.
2) There are no sanitary dead corners, and the fully enclosed design ensures that the materials are always mixed and fermented in a pollution-free state.
3) Equipped with manholes, air respirators, cleaning balls, sanitary inlets, sampling devices, etc.
Valves, thermometers, pressure gauges, observation glasses, observation lights. The fermentation process of beer, fine chemicals and biological products is sterile and pollution-free.
4) The fermentation tank adopts an aseptic system to avoid microbial pollution in the air and greatly extend the shelf life and purity of the product. We specially designed and installed aseptic breathing stomata or aseptic atmospheric fermentation system to complete cyclic heating and cooling through medium heating and cooling.
The parts in contact with the materials are made of SUS304 stainless steel. The outer surface is polished with red copper or stainless steel sanding surface.
Copper fermentation tank
We can customize product specifications according to your requirements. If you have any needs or questions, please contact us.
