200L Stainless Steel/copper Reflux Column Copper Tees Alcohol Distiller System

Distilled liquor is an alcoholic beverage with a higher alcohol concentration than the original fermentation product. Brandy, whiskey, rum and Chinese liquor are all distilled spirits, most of which are highly spirits. The production process is first brewing, then distilling, then cooling, and finally get a highly alcoholic solution beverage.
Availability:
Quantity:
  • DEGONG-200L
  • DEGONG
Product Description

200L Alcohol Distiller System


Product name
200L Alcohol Distiller System
Material
Red copper/ Stainless steel 304
Usage
Alcohol Making, Whisky, Rum, Brandy, Gin, Vodka, etc
Construction
Boiler, Onion head, Distillation column, Dephlegmator, Gin basket, Condenser, Parrot mouth, Support frame, etc


Details

Distillation pot

The inner shell is copper, and the outer shell is SUS304 stainless steel. The pot is equipped with liquid thermometer, pressure gauge, thermometer probe, safety release valve, CIP cleaning ball, drain valve, etc.

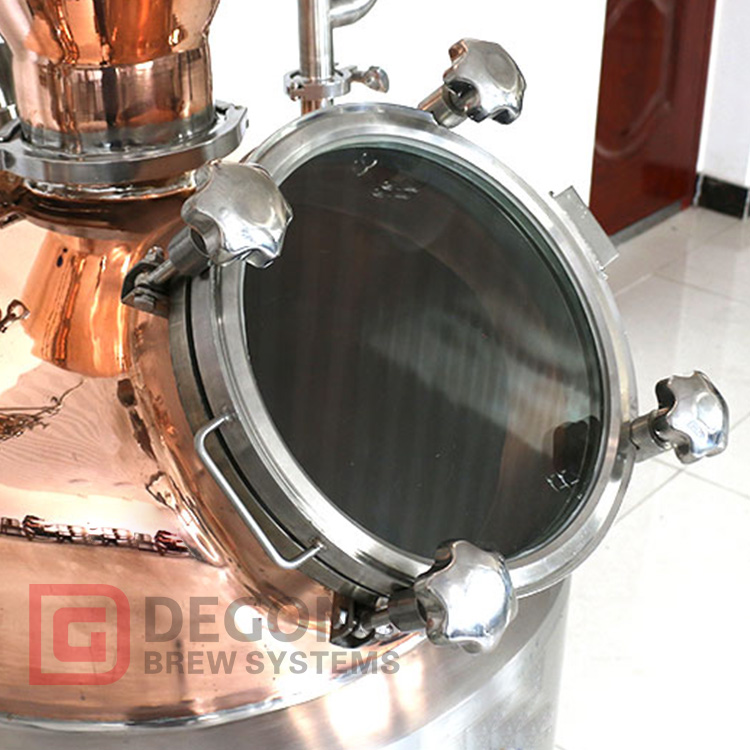

Full-view mirror pressure hole

Made of SUS 304 stainless steel and borosilicate glass, it has good airtightness and can be observed in the tank at any time, safe and reliable

19

Onion Head

It is made of copper, and the purpose of the design is to expand the contact area between wine and copper, remove highly volatile sulfur compounds, and react with the acid and fat in the wine during use to improve the taste.

17

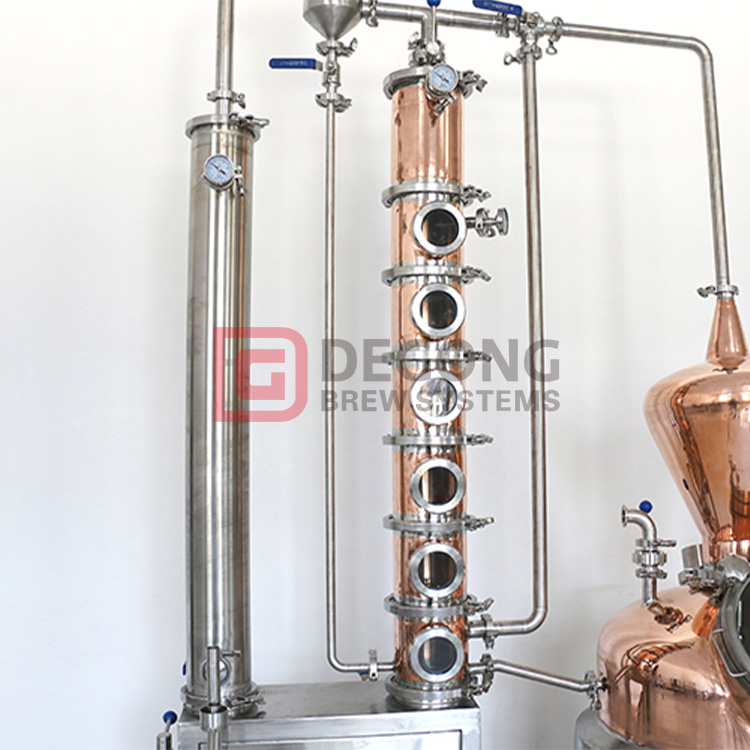

Distillation column

With blisters device and glass sight glass, it can improve thedegree and quality of the wine . For whisky and gin it is have 4 plates column (5sight glass) At the top of the column is dephlegmator , that improve the quality of the wine.

15

Distillation column

With blisters device and glass sight glass, it can improve thedegree and quality of the wine . For whisky and gin it is have 4 plates column (5sight glass) At the top of the column is dephlegmator , that improve the quality of the wine.

18

Condenser

It is made of copper pipe inside and SUS304 stainless steel column .The vapor passing through the cooling tubes gets in touch with the cold water and exchange heat with each other. Then the vapor is condensed to wine that we want. It has inlet and oulet of cooling water.


Our strength

  • Import advanced machinery to manufacture high-performance products.

  • R & D team with many years of experience to provide the best design

  • Reasonable price, punctual delivery, and 24-hour after-sales telephone service

  • Diversified products to help customers with one-stop purchase


Contact us

We can customize product specifications according to your requirements. If you have any needs or questions, please contact us.
