200L 500L Distillation Equipment for Vodka Rum Copper Craft Distiller for Sale

The equipment is a distiller for distilled malt fermented wort juice. It can also be used as distiller for grape fermented, hydropericarp residue, potato (vodka, sugar cane (rum wine), liquor fermented etc. High purity copper plate or stainless steel plate . it can be operated by steam direct or electric heating distillation.
Certificate:
Material:
Heating method:
distillation column:
Availability:
Quantity:
  • DGET-200L/500L

  • DGET

  • 8438400000

Product Description

200L 500L Distillation Equipment for Vodka Rum


Still Pot

Columns

1.Stainless steel/Red Copper insulated steam kettle.

2.Copper dome and helmet for optimal vapor contact.

3.High pressure clean-in-place system throughout.

4.Agitator and drain.

1.All Copper Column/Stainless Steel Column

2.Fully adjustable bubble plates.

3.Sight Glass, CIP and Themometer at every plate.

4.Stainless Product Condenser

1.The agitator makes our still pot ideal for distiliing thick mashes, or on grain without scorching

2.We can tailor the height and plate number for your specific application

3.Adjustable dephlegmator temperature for reflux control.

4.Botanical Basket for making Gin, Schnapps,etc.

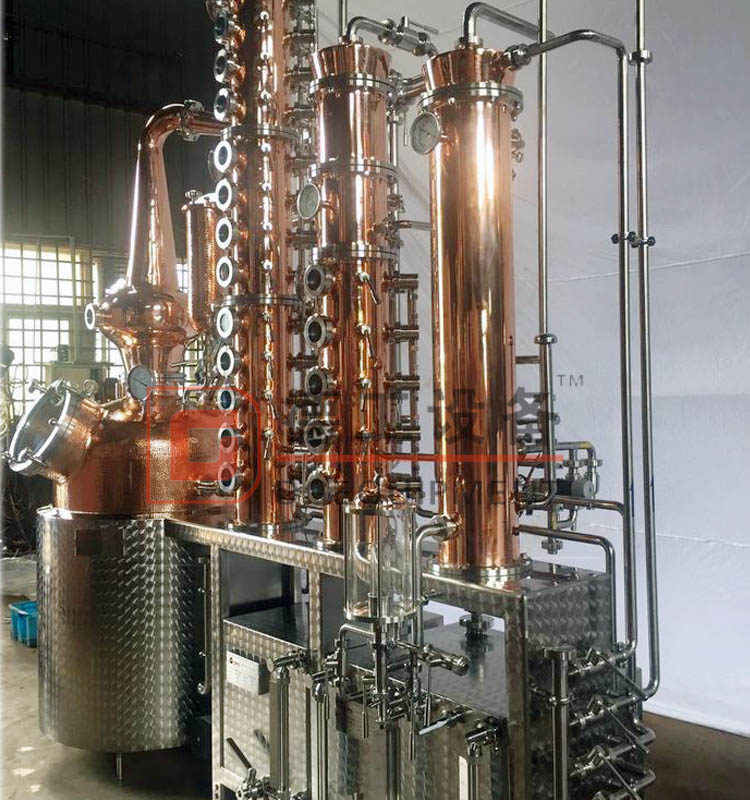

750DIS-min


Type Volumn Component

Whisky Distiller

300L-2000L

Still pot,Swan neck,Condenser,CIP ,Pipe System

Vodka Distiller

300L-2000L

Still pot,Onion head,Column,Dephlegmater,Condenser, Pipe System

Brandy Distiller

300L-2000L

Still pot,Onion head,Column,Dephlegmater,Condenser, Pipe System

Rum Distiller

300L-2000L

Still pot,Column,Condenser,CIP, Pipe System

Gin Distiller

300L-2000L

Still pot,Column,Gin Basket,Condenser,CIP, Pipe System


750DIS-min


Structure

Usage

200L still pot+4~10 plate red copper/
stainless 304/glass distillation column+dephlegmator+condenser+

parrot outlet+control box

Economy for lower budget.Application to small sized plant.Alcohol content 80%±10%,
such as whiskey,brandy,rum and vodka.

still pot+goose neck+4plate distillation
column+dephlegmater+condenser+parrot outlet

Suitable for low alcohol concentration to get high quality taste spirit.Alcohol content 80%±10%,such as whiskey,brandy,rum etc.

still pot+goose neck+gin basket+4plate distillation column+dephlegmater+
condenser+parrot outlet

Suitable for low alcohol concentration and available for fruitful flavor with spices to get high quality taste spirit.Alcohol
content 80%±10%,such as whiskey,brandy,rum +spices.

still pot+4plate distillation column+
dephlegmater+condenser+parrot
outlet

Economy for lower budget.Application to small
sized plant.Alcohol content 80%±10%,such as
whiskey,brandy,rum and vodka.

750DIS 细节-min

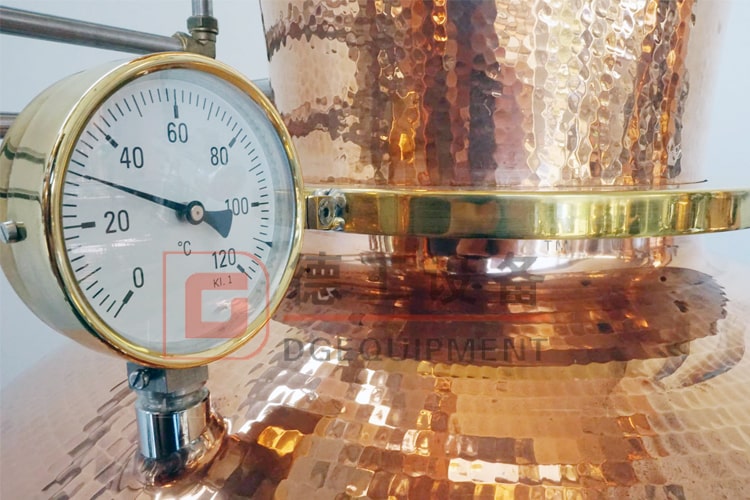

750 DIS 细节-min

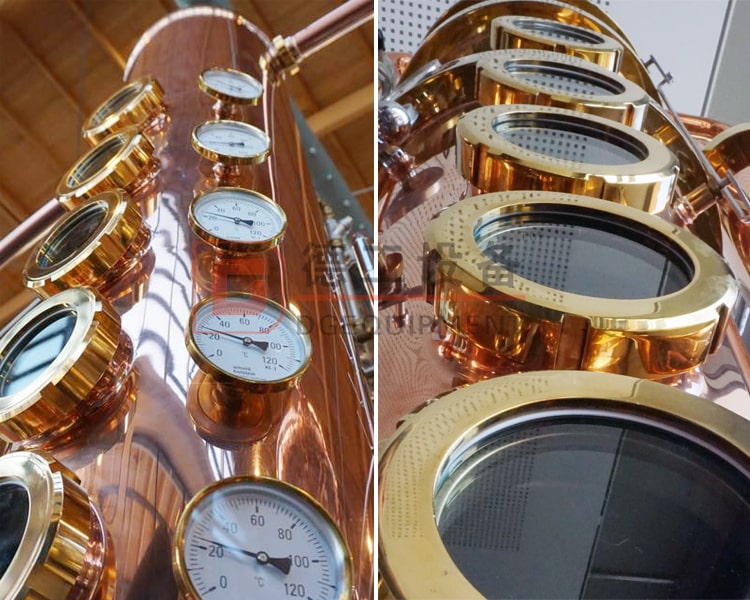

750 DIS 详情-min

copper distiller details


If you are interested in copper distiller, please feel free to contact me.
