200L 300L 500L Copper Whisky Distiller Spirits Distilling Machine Micro Distillery Equipment

The 300l distillery equipment consists of a pot made of copper, glass, and copper columns combined, a partial condenser, and a condenser, which are heated using electricity. The distillery equipment is a single unit designed to meet and exceed the needs of start-up distilleries and can be used as advanced test distillery equipment for mature distilleries of whisky, gin, fruit brandy, rum, wine spirits.
Availability:
Quantity:
  • DGET 50-5000L
  • DEGONG
Product Description

Micro Distillery Equipment


Still Pot

  • Actual volume 375L, Working volume 300L

  • Inner pot: red copper T2, thickness: 3m

  • Dished head: red copper T2, thickness: 3m

  • Jacketed: SUS304, thickness: 4mm

  • Insulated: 50mm, PU

  • Stirring motor: explosion-proof mixer 0.37KW/46rpm

  • Outer shell: SUS304, thickness: 2mm

  • Temperature control: PT100

  • Heating method: 2*10KW electric heating rods

  • With glass manhole, CIP cleaning ball, safety valve, sight light, steam trap, etc.


Copper Head

  • Material: red copper T2, thickness: 3mm

  • Connection method: 8″ tri-clamp


Still Column

  • Material: red copper T2, thickness: 3mm

  • Connection method: 8″ tri-clamp

  • Red copper tubes, one column with 4 bubble trays, each tray has bubble caps, and with CIP cleaning balls, Drain valve, thermometer


433


Dephlegmator

  • Material: Red copper T2, thickness:3mm

  • Connection method: 8″ tri-clamp

  • With cooling water inlet and outlet


Gin Basket

  • Material: SUS304

  • Size: 4″

  • Features: you can put plant spices, fumigate scented wine, such as gin


Condenser

  • Material: SUS304, thickness: 3mm

  • Size: 6″, 900mm

  • With cooling water inlet and outlet


435


Spirits Outlet

  • Material: SUS304 with glass bell jar

  • Can put an alcohol hydrometer to measure the alcohol content


CIP Pump

  • Category: Sanitary centrifugal pump

  • Power: 0.75KW (explosion-proof)

  • Flow rate: 3T/H, head 24m

  • Working medium: water

  • Working temperature: 10-100℃

  • Features: Can clean the distillation kettle, copper head, column, gin basket

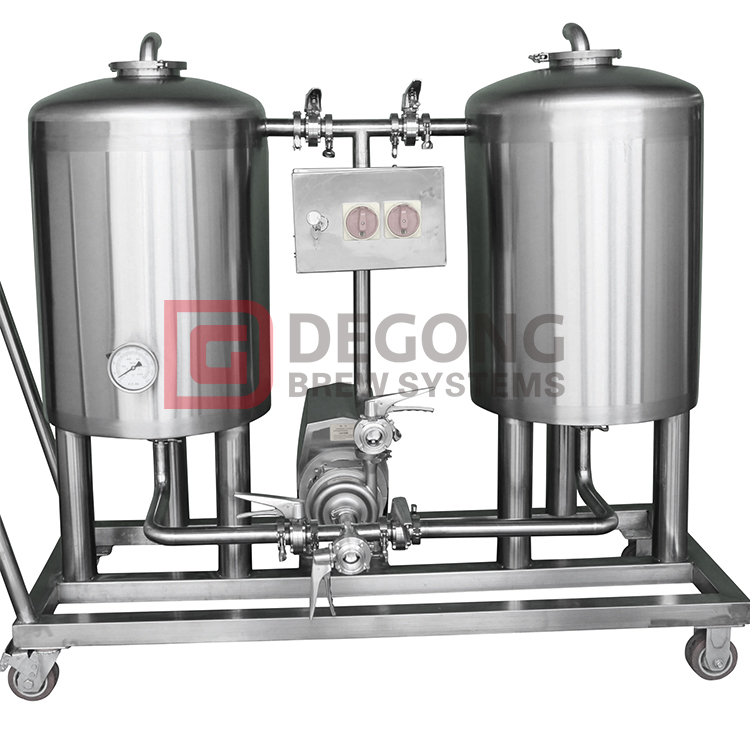

358

CIP system


Bracket

  • Material: SUS304, thickness: 2mm

  • Multifunctional lockers


Control Box

  • Material: SUS304

  • Sight light, motor, CIP pump


Contact us

The special attention we give in the final quality inspection of each work is also a guarantee of unparalleled reliability and robustness. If you have any needs or questions, please contact us.
