DG-2000L
DEGONG
| Technical Description |
This equipment can meet the needs of beer saccharification production and complete the entire beer saccharification process from feeding, mashing, wort filtration, boiling, whirlpool precipitation, cooling, oxygenation, etc.
The main materials and pipe fittings used in this equipment are made of high-quality stainless steel materials, which meet international and domestic food safety and hygiene standards.
The heating method is steam heating.
The saccharification lauter tank is equipped with frequency conversion and speed regulation stirring blade, which can realize the speed change of 0- -50r/min, and the customer can control it according to the process change. Satisfy the speed change requirements such as saccharification, filtration and washing.
Operation and control can be realized according to customer needs: manual operation, semi-automatic operation and fully automatic operation by computer control system.
Sanitary material pumps and pipe fittings are used for feeding and discharging and self-circulation, so there is no dead angle for cleaning.
The equipment pipeline connection adopts quick-fit connection, which is convenient for cleaning and maintenance during production.
Reasonable design, exquisite processing, beautiful appearance, durable, easy to operate and maintain.

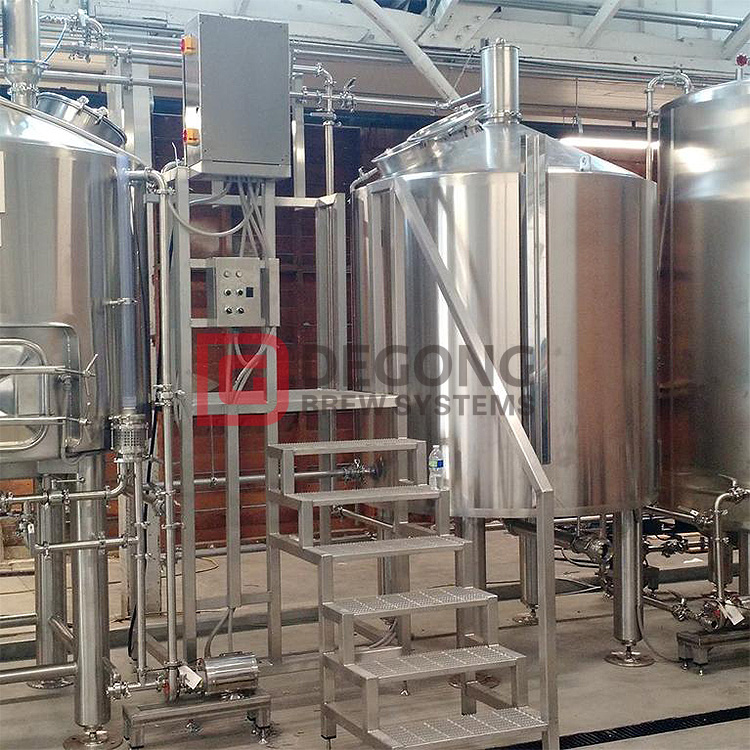

2000L BREWHOUSE
| Types of brewhouses |
2-Vessel Main Features
A typical two-vessel Combination Mash Lauter Tuns are the first combination vessel in these brewhouses line ups.Next inline is the combination of the Kettle and Whirlpool tanks.
3-Vessel Main Features
A three-vessel brewhouse is hybrid system that incorporates at least one combination vessel and two dedicated process vessels.
4-Vessel Main Features
A typical four-vessel brewhouse will include a Mash tun, Lauter Tun, Kettle and Whirlpool. Each of these tanks is dedicated to performing a single process, and is designed differently than similar vessel used for performing multiple processes.
2000L FERMENTATION TANKS
| No. | Item | Specification | |||
|---|---|---|---|---|---|
| 01 | Gross capaity | 2500L Beer Fermentation Tank | |||
| 02 | Useful capacity | 2000L Beer Fermentation Tank | |||
| 03 | Thickness | Inner (SUS304)thickness: 3.0mm; External-Jacket(SUS304) thickness: 2.0mm | |||
| 04 | Material | Stainless steel 304 | |||
| 05 | Cooling way | Dimple jacket plate | |||
| 06 | Cleaning way | CIP in situ cleaning, with rotary spray cleaning ball | |||
| 07 | Insulation | Polyurethane-thickness: 100mm | |||
| 08 | Accessories | Sample valve, Pressure gauge, Breath valve, Temperature gauge, Top manhole, Washing ball, Butterfly valves, CIP Arm, Hop port, Discharge arm and so on. | |||
| Contact us |
The special attention we give in the final quality inspection of each work is also a guarantee of unparalleled reliability and robustness. If you have any needs or questions, please contact us.
