2000L Refined Pure Manual Distillery

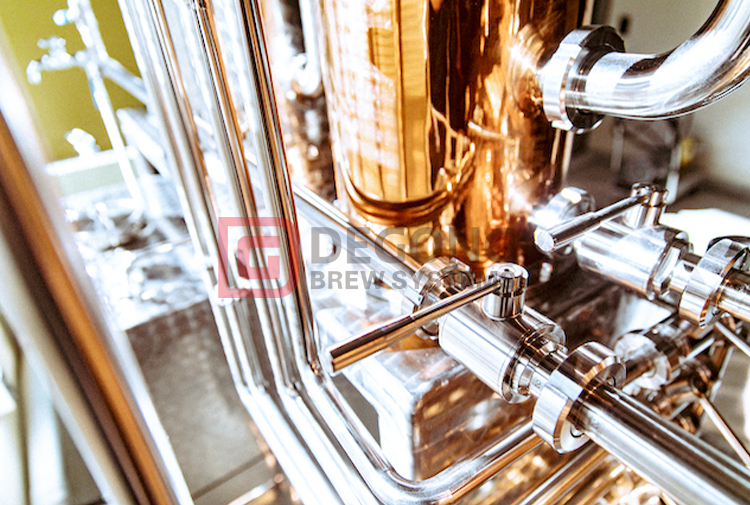

The picture is our 2000 liter jacketed steam heated gin distiller.
Will produce great whiskey, gin, and everything in between.
With a copper pillar.
The individual plate drain valves in the 8 Plate Copper Whisky Column can be opened or closed for better control of flavor characteristics and certification.
The Copper Whiskey Column has 8 bubble plates and a fractionator on the top.
The 8-plate Whiskey Column can produce up to 190 parts of alcohol in one run.
If you want to perform a stripping operation, just open the plate drain valve in the copper whiskey tower.
This 2000-liter still must be heated by a low-pressure steam boiler.
This distiller is ideal for the production of whiskey, bourbon, moonshine, brandy, rum and gin (with optional gin basket).
Material: stainless steel 304, copper T2
Type: 1. Single layer; 2. Only with heating jacket; 3. With heating jacket and PU insulation.
Accessories: thermometer, thermowell, pressure gauge, pressure reducing valve, inlet, outlet, breathing valve, return hole, glass manhole, CIP ball, etc.
We can customize the height and board number for your specific application.
The maximum height of the column can reach 2000mm, and a pair of flanges can accommodate up to 10 plates.
For 70-90% abv: 4~6 plates; 88-95% abv: 6~20 plates
Material: 304 stainless steel, flexible joint, easy to install.
Voltage: 208V/ 220V/ 240V/ 380V/415V/ 460V, etc. (Voltage can be provided according to customer requirements, explosion-proof motor.
CIP pump and pipe fittings
All stainless steel 304 pipe fittings with explosion-proof centrifugal pump
There are manual valves and automatic valves to choose from.
Material: stainless steel/copper
There are different shapes to choose from.
A heat exchanger in which hot steam is cooled and condensed into liquid.
Material: copper/stainless steel 304
Structural tube heat exchanger; with cooling water inlet and outlet.
Bring a thermometer.
For stainless steel condensers, the surface can be finished in proportion.
A wide range of models can meet the various requirements of each market and ensure that you can always find a solution that suits you. If you want to know more detailed information about our equipment, please contact us.
