DEGONG-2000L
DEGONG

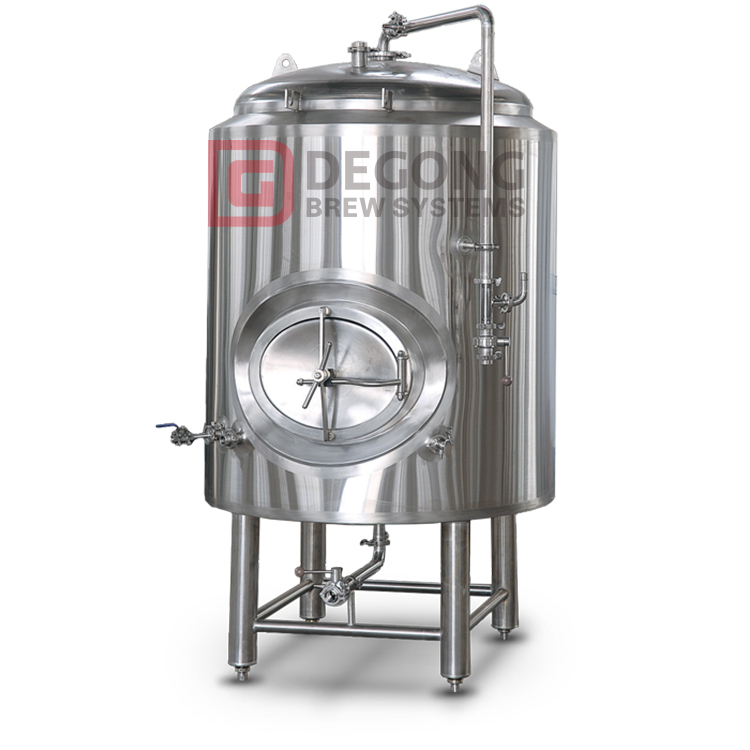

Specifications of 2000L Brite Tank
| Bright Beer Tank | |
| Structure | Dish top |
| Usage | it is used for storage beer |
| Material | 1.all Stainless steel 304/316 |
| 2.jacket: dimple jacket | |
| 3.insulation layer: PU | |
| 4.as to the thickness, we can make it according to your requirement. | |
| Accessory | Pressure relief valve(30psi) Shadowless manway CIP pipelines 1” butterfly valve for CIP pipeline butterfly valve for drain with elbow Thermometer Thermowell Sample valve Pressure gauge 1 extra 2” spare hole for CO2 stone on side of tank body for option 3/4 adjustable solid legs |

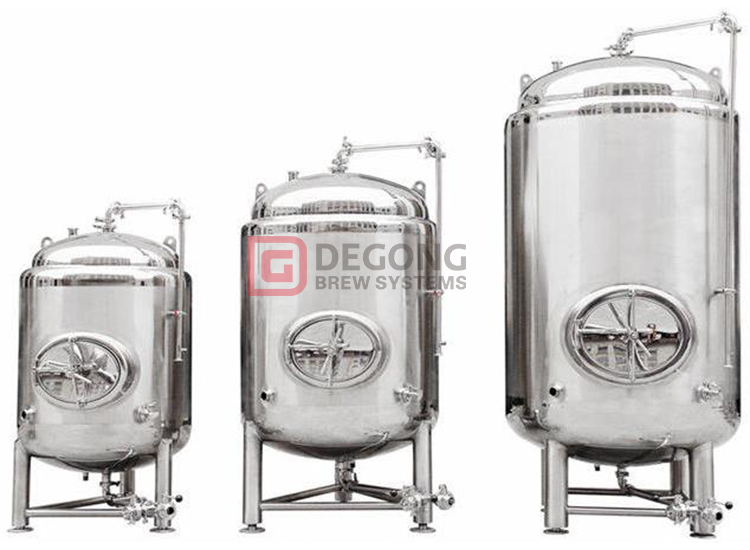

| Our advantage | 1.we can supply various kinds of volume, minimum 2BBL~maximun 200BBL and even larger. |
| 2.PU insulation is adopted, jacket will be dimple jacket | |
| 3.interior surface is Mirror polishing and exterior is 2B finish/brush polishing | |
| 4.we also can equip you with a cooling system as your requirement. | |
| 5.competitive price and also higher quality tank. | |
| Working Volume (L) | Dimension of Tank (D*H) mm | Total Height (H) mm | Diameter of Inlet&Outlet (mm) | Diameter of Inlet&Outlet (mm) | Diameter of Inlet&Outlet (mm) |
| 500 | Dia 800*800 | 1750 | Dia 38 | 50 | 440*320 |
| 1000 | Dia 1000*1200 | 2200 | Dia 38 | 50 | 440*320 |
| 1500 | Dia 1100*1400 | 2500 | Dia 38 | 50 | 550*430 |
| 2000 | Dia 1200*1500 | 2700 | Dia 38 | 50 | 550*430 |
| 3000 | Dia 1400*1700 | 3150 | Dia 51 | 50 | 550*430 |
| 4000 | Dia 1500*2100 | 3450 | Dia 51 | 50 | 550*430 |
| 5000 | Dia 1600*2200 | 3590 | Dia 51 | 50 | 550*430 |
| 6000 | Dia 1700*2200 | 3650 | Dia 51 | 50 | 550*430 |
| 8000 | Dia 1800*2700 | 4350 | Dia 51 | 50 | 550*430 |
| 10000 | Dia 2000*2800 | 4450 | Dia 51 | 50 | 550*430 |
Application
Suitable for small breweries as a startup company, but also very suitable for large restaurants.
It can also be used for seasonal breweries and market testing.
The whole adopts certified SUS304. Every detail has been strictly processed and controlled.
Configuration
Liquid drain (no beer outlet)
Ice water inlet and outlet
The entrance of carbonized stone is a special porous stone for carbonization of carbon dioxide bottle beverage.
Atmospheric pressure manhole
Breathing valve
Pressure gauge
CIP entrance
Sampling valve, clean and disinfectable sampling cock, used to collect product samples
Temperature sensor: PT100
The material of the level gauge is Pu and plexiglass
Spray ball
Contact us
We can customize product specifications according to your requirements. If you have any needs or questions, please contact us.
