DG-2000L
DEGONG
| Configuration |
| Item | Model | Specification |
| Grinding System | 500kg/h Malt Mill | Machine Material: Carbon steel or Stainless steel |
| Roller Material: alloy | ||
| This machine can remove the iron and dust automatically | ||
| Brewhouse | 2000L 2 Vessels + HLT | Main equipment: Lauter tun, kettle&whirlpool tank, HLT |
| Inner layer material SUS304, thickness: 3.0mm | ||
| External Jacket material: SUS304, thickness: 2.0mm | ||
| The inner surface polishing precision: Ra0.4um | ||
| Heating way: Steam heating, electric heating | ||
| Tangential whirlpool inlet | ||
| Equipped with hops back | ||
| 100% Stainless Steel suspension type Plate Heat Exchanger | ||
Includes pump, pipeline, heat exchanger, valve, raker, platform, and all other accessories | ||
| Fermentation system | 2000L OR 4000L Fermentation Tank & Bright Beer Tank. You decide quantity | Inner layer material SUS304, thickness: 3.0mm |
| External Jacket material: SUS304, thickness: 2.0mm | ||
| The inner surface polishing precision: Ra0.4um | ||
| Cone bottom: 60° | ||
| Design pressure 0.3MPa; Working pressure 0.15Mpa | ||
| Manhole: Top or Side manhole | ||
| Cooling way: Dimple Jacket | ||
Equip with Carbonated Port, Dry Hops Port, Sample Valve, Pressure Release Valve, Pressure Gauge, Racking Arm | ||
| Includes pipeline, yeast adding tank, valve, and all other accessories | ||
| Cooling System | 4000L Glycol Tank & 5HP Chiller | Chiller compressor is USA copeland |
| Inner layer material SUS304, thickness: 3.0mm | ||
| External Jacket material: SUS304, thickness: 2.0mm | ||
| The inner surface polishing precision: Ra0.4um | ||
| Pump is Stainless Steel Model | ||
| Cooling media: glycol water or alcohol water | ||
| Includes pipeline, valve, and all other accessories | ||
| CIP system | 150L CIP Trolley OR Portable Pump | Main equipment: NaOH tank, H2O2 tank; |
| Equip with control cabinet | ||
| Centrifugal pump | ||
| Control System | PID Cabinet OR PLC Cabinet | Material: Carbon Steel OR Stainless Steel |
| Component has CE certificate | ||
| Others | Filling System, Capping System, Filtering System, Water Treatment System, Pasteurizer and so on | |
DEGONG 2000L Complete Brewing System
| Fermentation tank specifications |
Fermentation vessel w/ 25% head space
Design pressure 15psi or 1bar
Interior shell: SUS304, thickness 3mm
Exterior shell: SUS304, thickness 2mm
Interior and exterior finish bright polish to 2B, hygienic surface
60° conical cone bottom
Racking port and discharge port with butterfly valve and fittings
Side or Top man way door, shadowless
Dimple glycol cooling jackets with glycol inlets and outlets
Polyurethane foam insulation, thickness 80mm/>3” on side and bottom.
Fully welded exterior shell
4 legs with levelling foot pads
CIP arm and spray ball
Rotating racking arm
Vacuum relief at 0.3psi
Pressure relief valve at 30psi as standard
Sanitary pressure gauge.
Tank complete with fittings, valves, and all parts
Lifting Lugs
Thermowell
P100 temperature sensor
24V DC liquid solenoid valve

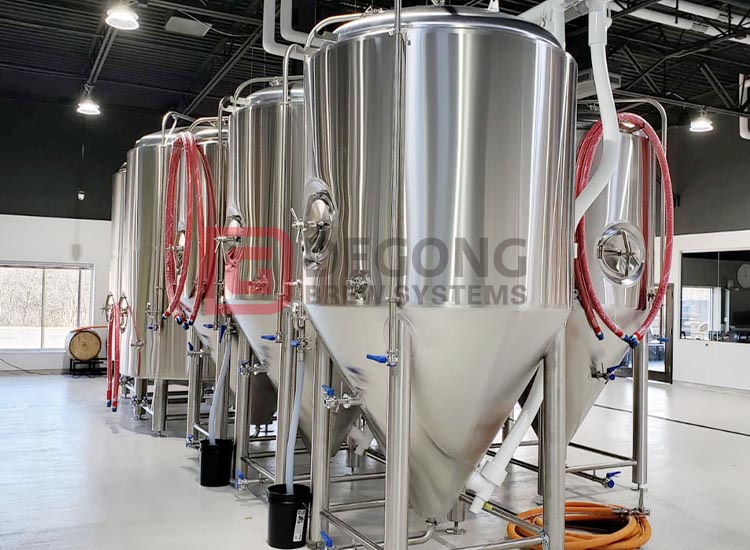

DEGONG 2000L fermentation tanks
| Packaging&Shipping |
With export standard bubble film packaging, then for wooden case packaging for alone beer tanks and less brewery equipment.-LCL shipping.
If more tanks or complete set of brewery, with bubble film packaging, the for containers for FCL shipping.
By bulk carrier or independent containers, the size and quantity rely on the configurations and capacity.
| Contact us |
The special attention we give in the final quality inspection of each work is also a guarantee of unparalleled reliability and robustness. If you have any needs or questions, please contact us.
