DG-2000L
DEGONG
| Features |
25-30% Head Space
Inner Jacket SS304 3mm
Outer Jacket SS304 2mm
60 Degree Cone
Dimpled Cooling Jacket On Bottom and Side
PT100 Temp sensor
Pressure Tested 2x Working Pressure
Liquid Level Display
Tig Welded Joints
Heavy Duty Legs With Leveling Pad
Dry Hop Adding Port

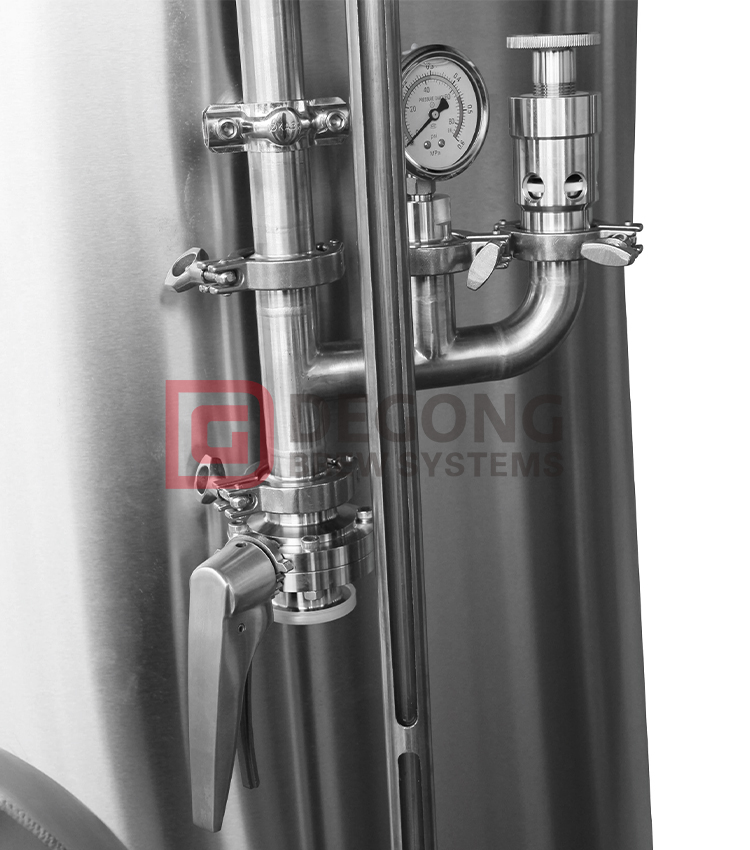

Sanitary Sample Valve
Comes with: Ranco Control OR RTD, CIP Spray Ball for 360° Coverage, Carb Stone, Solenoid, Butterfly Valves, Gaskets, SS Clamps, Pressure Gauge, Safety Valve, Pressure Relief Valve
| Dimension | Depends on capacity |
| Material | SUS316L or SUS304 |
| Weight | Various in different models |
| Thickness of Tanks | 3mm for interior shell/2mm for exterior shell |
| Heating method | Electric/Steam heating |
| Heat Insulation | Polyurethane or Rockwool with Thickness=80mm |
| Inner Polishing Precision | 0.4 Micrometer |
| Volume Design | Properly according to the capacity |
| Controlling System | Temperature,Pressure auto control |
| Plants Type | Turnkey or Customerized |
| Contact us |
The special attention we give in the final quality inspection of each work is also a guarantee of unparalleled reliability and robustness. If you have any needs or questions, please contact us.
