2000L commercial brewhouse is a brewery for restaurants, commecial and industrial breweries which consist of the industrial wort brew machine and a fully equipped set of the professional beer fermentation tanks. It's a medium-size and big-size craft brewery intended mainly for restaurants and pubs with their own beer production. But the capacity of bigger models is enough also for commercial breweries with retail sale.
Equipped with commercial brewhouse wort machine and modern professional beer production equipment like cylindrical and conical beer fermentors or open fermentation vats, automatic cooling system, cleaning and sanitizing system etc. It is possible to use them to production of all known types of beer.
Model | DG-2000 |
Capacity | 2000L/Batch |
Material | SUS304 or copper |
Combination method | 2000L Mash/Lauter tun+2000L Kettle/whirlpool tank+4000L Hot water tank |
Application | Restaurants, bars, hotels, brewery |
Heating way | Steam heating(Electric boiler, gas boiler, oil boiler optional) |
Voltage | AC380/220V, 50/60HZ |
Power | Steam heaing 55KW |
Water consumption | 4m3/T |
Diameter | 1960mm |
Height | 3200m |
Floor area | 60m2 |
Degree of automation | Semi-automatic/Fully automatic |
Fermentation system |
Function: Used for keep wort fermentation or maturation.

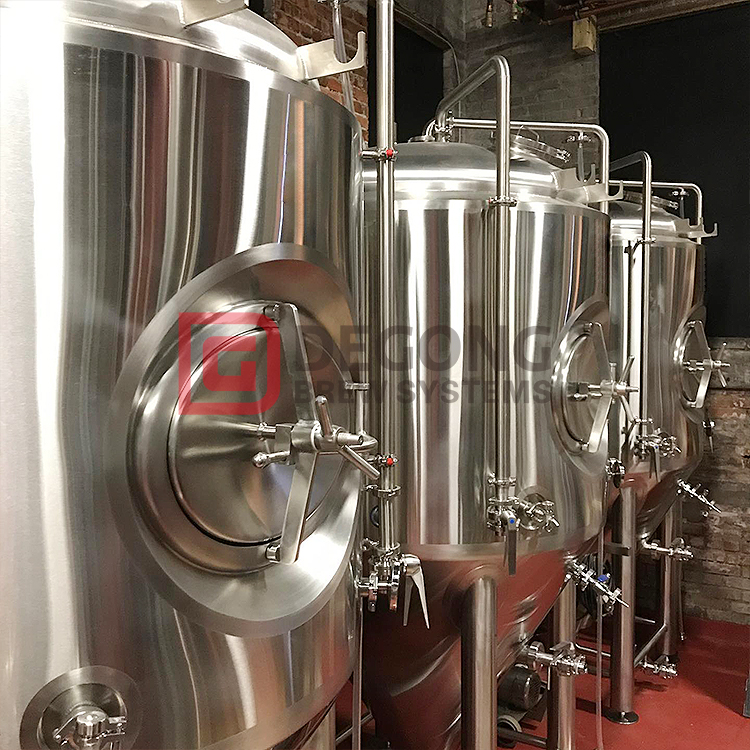

Standard stainless steel conical cylindrical fermentation tanks
Single, double, triple or more size as brewhouse is common used in commercial breweries
Tanks quantity is exactly calculated by fermentation cycle for various beers
Roof walkway is for special request
Cooling method: dimple plate or glycol cooling jacket both bottom and top.
All manhole, valves, pressure gauges, fittings etc are included
Design pressure is 0.3MPa; Working pressure is 0.15MPa. (MPa can be customized).
Cooling Unit |
Insulated glycol water tank with or without copper coil for glycol liquid holding and mixing
Efficiency chillers or refrigerators with fryon to supply cooling energy
Sanitary centrifugal pump for glycol water recycle among tanks and heat exchanger
All pipes, fitting, insulation materials are included
Cleaning Unit |
Function: Used for cleaning and washing.
Component: Disinfection tank, Alkali tank (with heating element), cleaning pump and etc. It is the seventh part of beer brewing equipment.
Purpose: Equipped with wheel, easy to move and operate, washing all tanks when it finishing brewing.
Controlling Unit |
Electrical controlling cabinet with temperature, on-off controlling for brewhouse
Electrical controlling cabinet with temperature, on-off controlling for cooling parts
Temperature controller, thermocouple, solenoid valves etc are included
PLC with touch screen panel for special request
Contact us |
The special attention we give in the final quality inspection of each work is also a guarantee of unparalleled reliability and robustness. If you have any needs or questions, please contact us.
