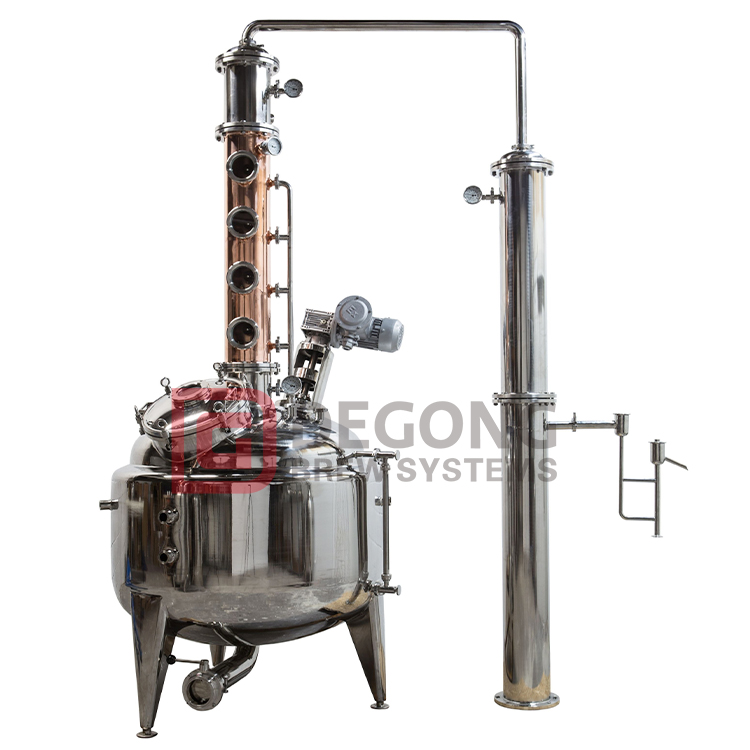

200 Gallon（800L）Steam Jacketed Whiskey Distillery Reflux Column Still Copper Distillation Systems

200 Gallon Distillation Systems

• 200 Gallon Working Capacity 304SS Stainless Steel Boiler

• 0 rpm to 45 rpm variable speed agitator:

• 12" Clamping Manhole

• 4" Humane Sight

• 5 PSI relief valve on internal boiler

• 5 PSI vacuum relief valve on internal boiler

• 15 PSI ASME Pressure Relief Valve on Jacket

• 15 PSI Steam Jacket

• Insulating jacket

• 4" Tri Clamp Butterfly Valve on Drain

• 10" Diameter Whiskey Column with 4 Bubble Plates

• 10" Diameter Shell and Tube Separator

• 4" sight glass in column

• 4 CIP spray balls in column (1 above each plate)

• 4 Plate Drain Valve

• 4" Surface Thermometer Above Whiskey Tower Fractionator

• 4" Surface Thermometer Below Whiskey Tower Fractionator

• 2 CIP spray balls in boiler

• In-column 4" face 0°F to 250°F thermometer

• 3" face 0°F to 250°F thermometer on internal boiler

• 10"x40" Shell and Tube Condenser

• Stainless steel parrot beak

• Stainless steel bench stand bolted to the floor or stainless steel column stand for the condenser, your choice.

• 11'4" overall height

• Copper and stainless steel mirror polished

• Inner Boiler has a Mirror Polish

• Explosion-proof motor

• It can be heated by steam or electric

• Efficient CIP spray ball 360 degree cleaning

• Provide customized service, technical and drawing support

• Easy to operate and use, easy to clean, small footprint

• High safety, high work efficiency, long service life, low energy consumption, high quality and low price

• Suitable for whiskey, gin, tequila, rum and bourbon, etc.

The special attention we give in the final quality inspection of each work is also a guarantee of unparalleled reliability and robustness. If you have any needs or questions, please contact us.
