Small Automatic Barrel Cleaning Machine Equipment Beer Barrel Cleaning Filling Machine

The DEGONG beer barrel cleaning and filling machine is completely controlled by a Siemens programmable controller. All parameters (time values) can be adjusted without stopping the machine. There are two sets of washing processes for customers to choose.
Availability:
Quantity:
  • Small Automatic Beer Kegs Washer
  • DEGONG
Product Description

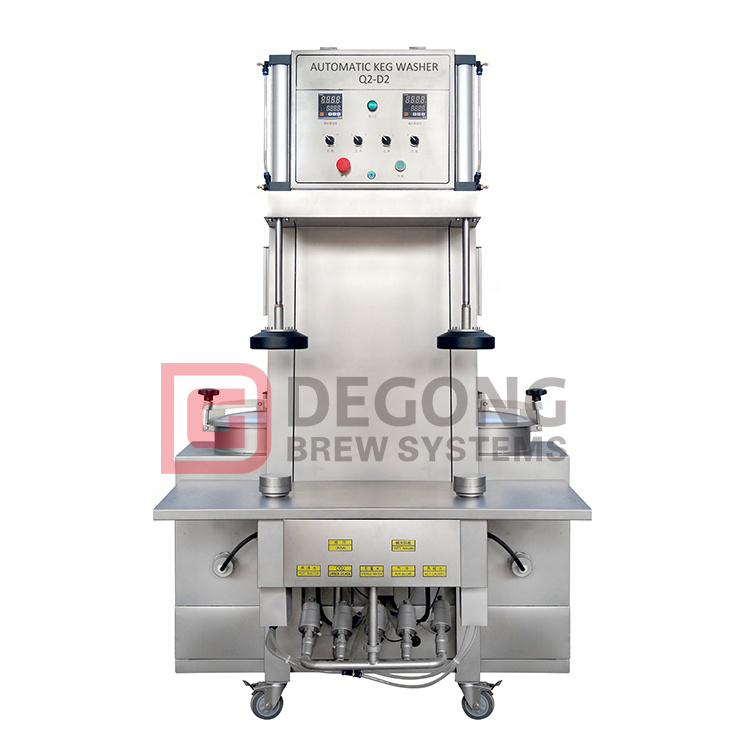

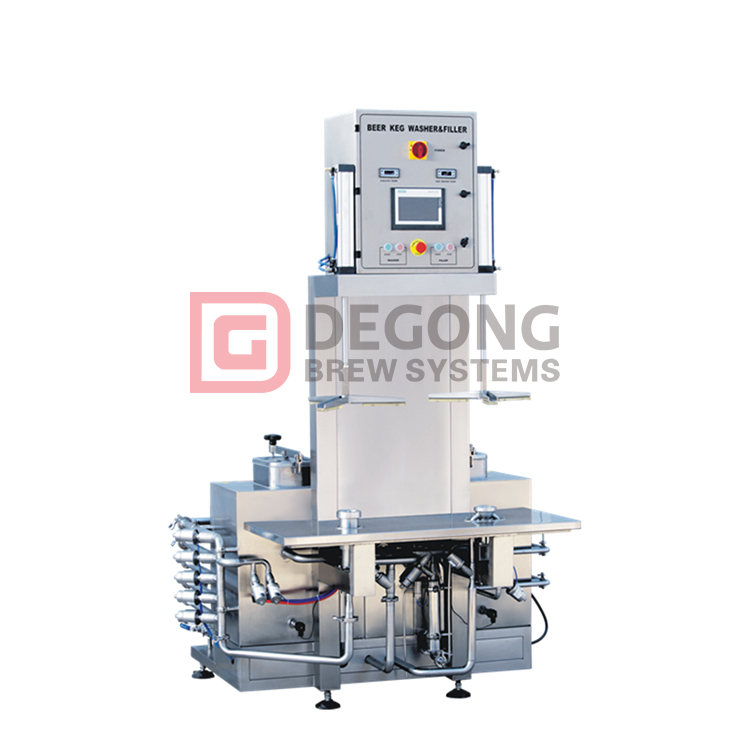

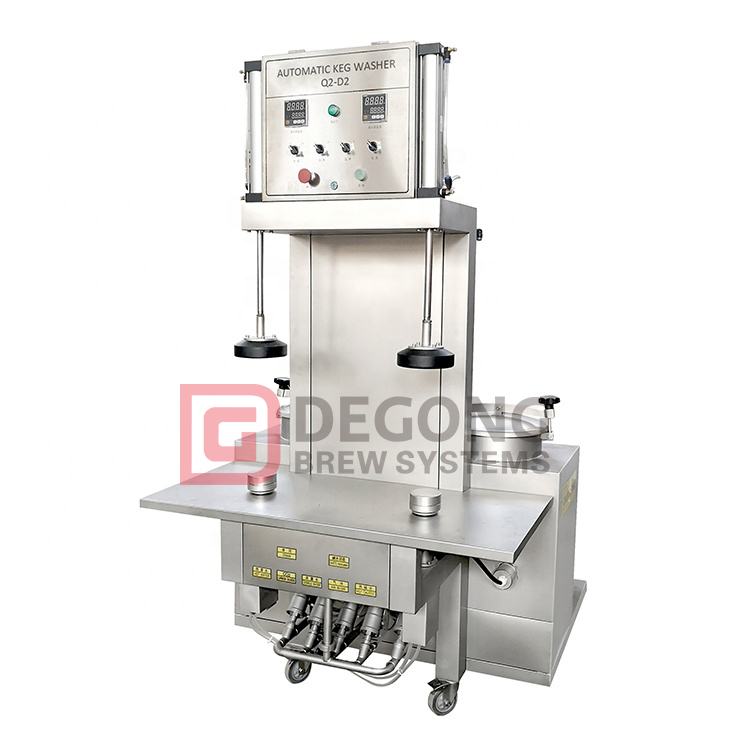

Small Automatic Beer Kegs Washer


Production Description

Commodity name Small Automatic Barrel Cleaning Machine Equipment Beer Barrel Cleaning Filling Machine
Dimension of working table 1200 mm × 450 mm
Outside dimension

1200 mm × 1480 mm × 1900 mm

Net weight 195kg.
Power Supply 220V/50HZ/1P or customized
Capacity of washing 80-120 barrels for 20L size
Cleaning heads 2
Automatic or Manual one Automatic
Total Power 3 kw
Pressure of CO2 source 0.4~0.6 Mpa
Pressure of steam inlet 0.15~0.20 Mpa
Heating style Steam heater
Customized Allowed


The DEGONG beer barrel cleaning and filling machine is completely controlled by a Siemens programmable controller. All parameters (time values) can be adjusted without stopping the machine.

Two sets of washing processes are available for customers to choose.

Disinfectant and lye can be used repeatedly to save water.

The water tank has a heating function and the temperature can be displayed on the screen.

With steam sterilization function (user selectable).

223217220

Features

1 High stability

2. Competitive price

3. Easy to operate

4. Safe and durable


Cleaning Program

Loaded keg manual → Locked keg automatic → Drain → Water Rinsing → Gas bleed → Hot Caustic Soda Rinsing → Gas bleed → (Hot caustic Soda circulation) → Water Rinsing → Gas

Bleed → Water Rinsing → Gas Bleed → External water → CO2 Gas Bleed (Discharge Oxygen) Prepare pressing for CO2 → End (Take away keg)

Filling Program

Loaded keg manual → Start → Prepare pressing for CO2 → Filling and Exhausting → End (Take away keg)

218


We have exported a large number of orders to foreign countries. And our company already has a good reputation in this field. Most of our customers are from South America, North America, Europe, Australia, Asia, Ireland and Africa.


We can customize product specifications according to your requirements. If you have any needs or questions, please contact us.
