16" Stacked Disc Lenticular Filter Modules for Sale

The lenticular filter element is a new type of filter element that uses a depth filter. It is designed with a double separator concept. The separator design improves the overall stability of the filter element because the separator fully supports the sheet material.
Availability:
Quantity:
  • DEGONG-16"
  • DEGONG
Product Description

16" Lenticular Filter Modules


Product Details
Technical Data / Materials
Filter Media Cellulose and anorganic filter aids such as kieselguhr and/or perlit
Hardware Polypropylene
Gaskets NBR, EPDM, FPM, PTFE, FEP, MVQ
Dimensions / Operating Parameters
EFA / 12" Ø
EFA / 16" Ø
1,8 m2 / 16 Cells
3,6 m2 /16 Cells

Height

Flat Adapter Bayonet Adapter

275 mm

330 mm
Micron rating 0,04  to 50 µm
Max. Differential Pressure 2,5 bar
Max. Operating Temperature 95°C

87

Features

High surface area

Washable-can be washed without removing from the filter container

High-efficiency deep filtration for high-purity applications

Provide a wide range of grades

Can provide carbon impregnation medium

Approved for food and beverage contact

88

Other filter series
pleated filter cartridge Metal filter cartridge Other filter cartridge Filter Housing
PES filter cartridge series pleated stainless steel filter ZP filter/ single piece filter Liquid Filter housings
PVDF filter cartridge series
String Wound filter Titanium filter housing
GF filter cartridge series
Activated carbon block filter Plate filter
Filter Membranes Filter cloth Capsule Filter
PES Membrane Polyamide fiber filter cloth

86

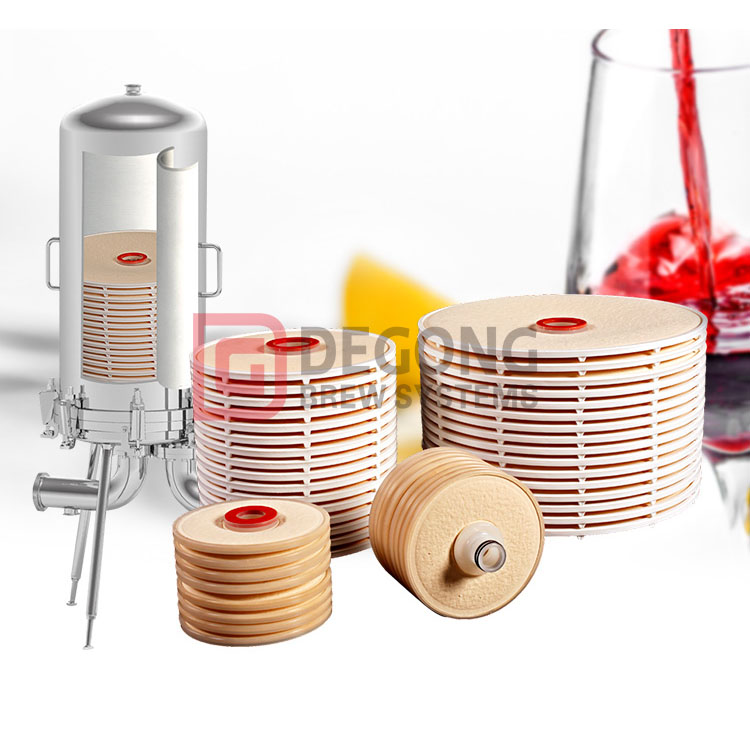

Application
  • Pharmaceutics

  • Food and drinks

  • Fine Chemicals

  • Equipment

89
