General specification for 1800L brewery equipment |
No. | Name | Components | Capacity | Specification |
1 | Grain Milling Unit | Rolling Miller | 500~800kg/hr | Double roller |
Power:3Kw |
Noise:45±3db |

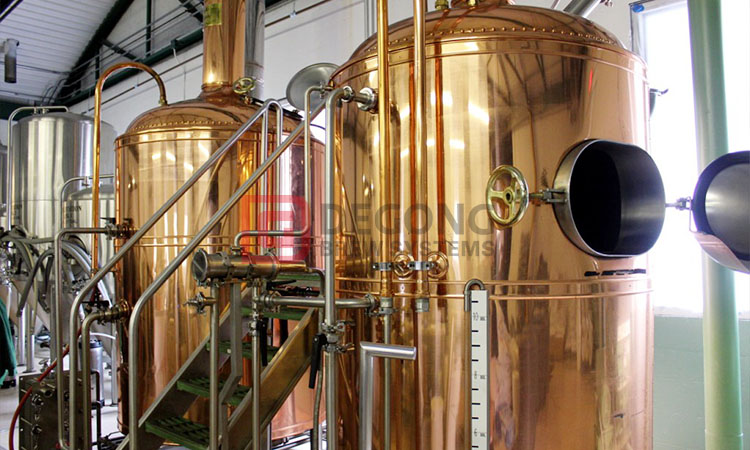

2 | Brewhouse Unit | Mash/Lauter tun | 1800L (total 2250L) | Side mounted grain outdoor with grain chute |
Laser cutting V-wire False Bottom |
Kettle/Whirlpool Tun | 1800L (total 2340L) | Steam heating |
Tangential whirlpool inlet |
Sanitary leveling sight glass |
Hot water tank | 1800L (total 2160L) | Sanitary leveling sight glass |
Yeast feeder | 30L | Tri clamp aeration port with ball valve |
Heat exchanger | 20M2(Effective area) | Completely 304 SS Corrugated plates |
pump | 5M3x2PCS | ABB, Sanitary SUS304, VFD control |
Pipe and fittings | As design | completely SS304, Work Platform is included |
3 | Fermentation unit | Fermenter | 3600L(total 4500L) | Dimple cooling jacket on cone and bottom |
Side manway |
Tri clamp CIP ball |
60 degree cone bottom |
Perlick style full sanitary sampling valve |
Carbonation port and level tube for special request |
4 | Filtration unit(optional) | Kieselguhr Filter | 1000kg/hr | Power: 1.2kw |
Filter Area: 1.1M2 |
SUS304 |
5 | Bright beer tank | Bright beer tank | 3600L(total 4320L) | Dimple cooling jacket on cone and bottom |
Level tube for checking |
Tri clamp CIP ball |
Side manway |
Perlick style full sanitary sampling valve |
Carbonation port with tri clmap carbonation stone |
6 | Glycol Chilling Unit | Glycol Water Tank | 3500L(total 4025L) | Insulated conical top and sloped bottom |
Chiller | 8HPx2PCS | Cooling Capacity: 15480Kcal/8HP |
Installed Power:7.8kw |
Refrigerant: Freon R404A ,R410A |
Noise:70-80db |
Coperland compressor |
PVC pipe | As designed | Solenoid valves for glycol inlet to tanks are included |
Glycol water pump | 3M3 | Sanitary SUS304, VFD control |
7 | Control unit | Brewing and fermetation process Controlling | Floor type | PLC control with touch screen for special |
PC or mobile remote control for special request |
8 | CIP | Caustic Tank | 200L | electric heating element inside, With bimetal thermometer |
Sterilization Tank | 200L | H2O2 |
Pump | 3M3 | VFD control |
9 | Keg cleaning | Double Station Keg Rinser | 40-60kegs/hr | Heating: Electric, Power: 15kw(steam for optional) |
10 | Keg filling | Single Station Keg Filler | 30-40kegs/hr | Input Power: 0.1 kw |
11 | Bottling line | 8 heads | 400-500 bottles/hr | Manual |
12 | Others | Option | Can be Customized | Auger System |
Grain Case |
Grist Hydrator |
Piping flow panel for Brewhouse |
Brewhouse Separate PLC Controller |
