15BBL Conical Beer Fermenter Glycol Cooling Jacketed Double Wall Unitank for Sale

This 15 bbl Conical Fermenter features two zone jacketing in its cone and on the side wall. It was designed to provide superior performance and will provide optimum control of your fermentation process.
equipment thickness:
fermentation tank cooling:
Material:
Quantity:
  • DGET-15BBL
  • DEGONG
  • 8438400000
Product Description

This 15 bbl Conical Fermenter features two zone jacketing in its cone and on the side wall.  It was designed to provide superior performance and will provide optimum control of your fermentation process.

With the ability to be converted to a Unitank or brite serving tank, this 15 bbl fermenter (fermentor) can also help you save on floor space and increase brewing flexibility.  The two-zone glycol jacketing provides the ability to manage the cone temperature during fermentation and/or keep the beer in the cone cold as it is racked or served.



750FV 套图 正面-min2

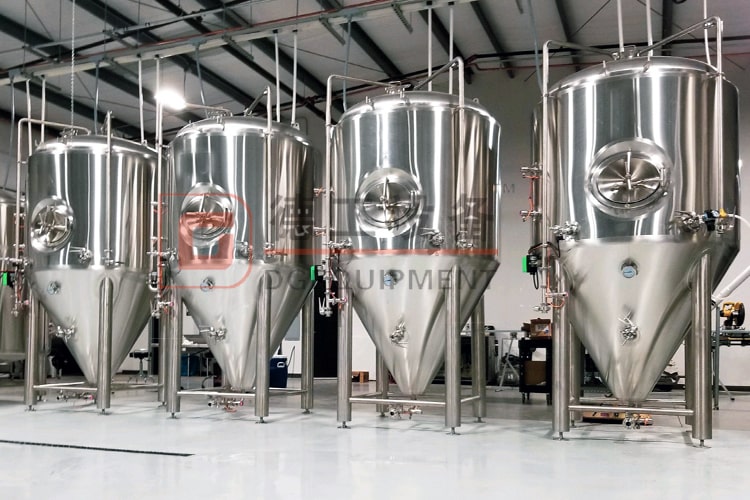

15 bbl fermenter dimensions

Tank material thickness is 3mm

Jacket and outer shell thickness is 2mm.

Cone has 60 degree interior angle


750 FV-min

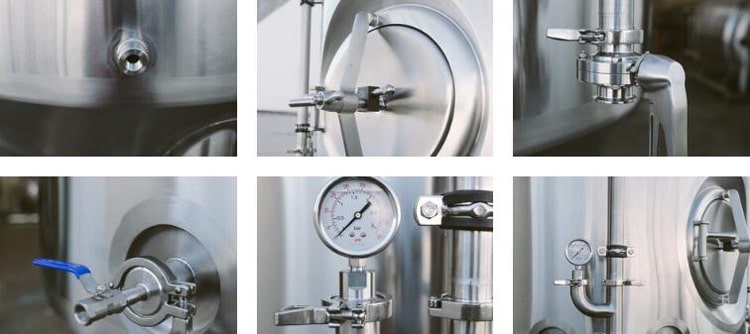

Features of this 15 bbl conical fermenter

Glycol Jacketed - two zones: Cone and sidewall

Shadowless manway for easy cleaning

Adjustable racking arm for clear transfer

Sample valve for quality testing

Back mounted pressure gauge

Adjustable feet for leveling on uneven floors or fine height adjustments

Pressure Gauge Type: Back Mount

Can easily be converted to a unitank using our Unitank Parts Kit  (Watch this Unitank Setup video to learn how)

CIP arm and spray ball

2 butterfly valves

15 psi rating

Thermowell for contactless temperature probe

Temp probes are available for purchase separately, with options for single tank-mounted, or multi-tank wirelessly accessible fermentation temperature control panels


QQ截图20200407111419de-min


If you have interest, please feel free to contact me.
