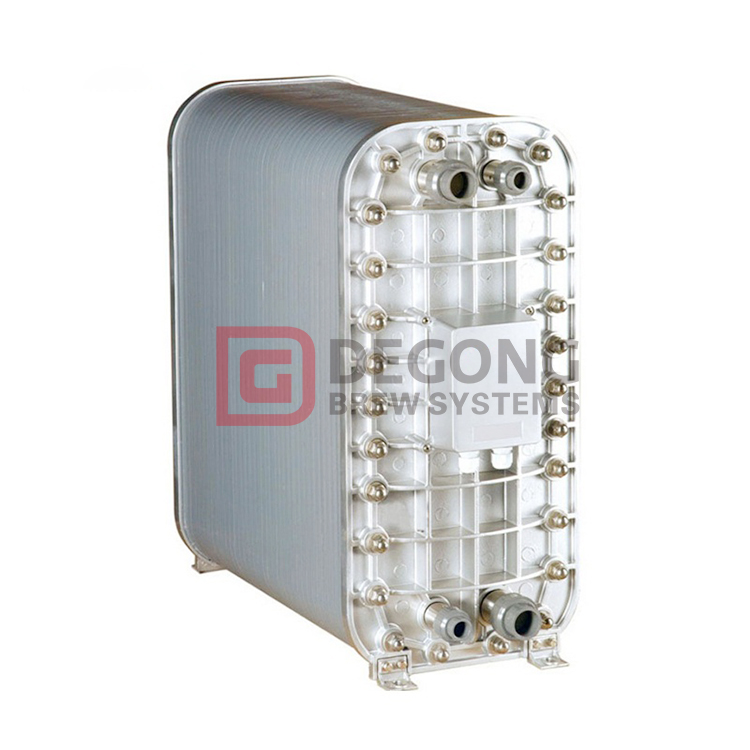

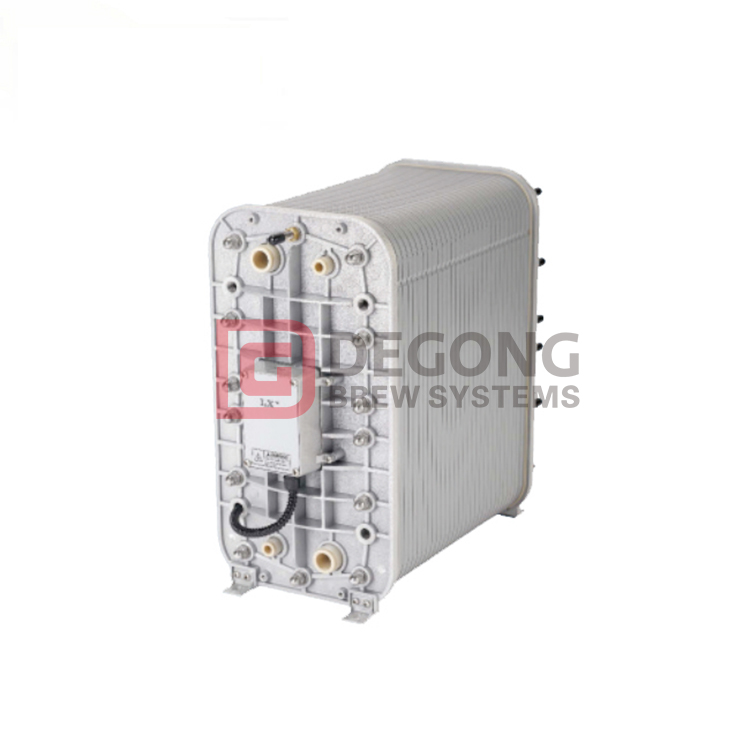

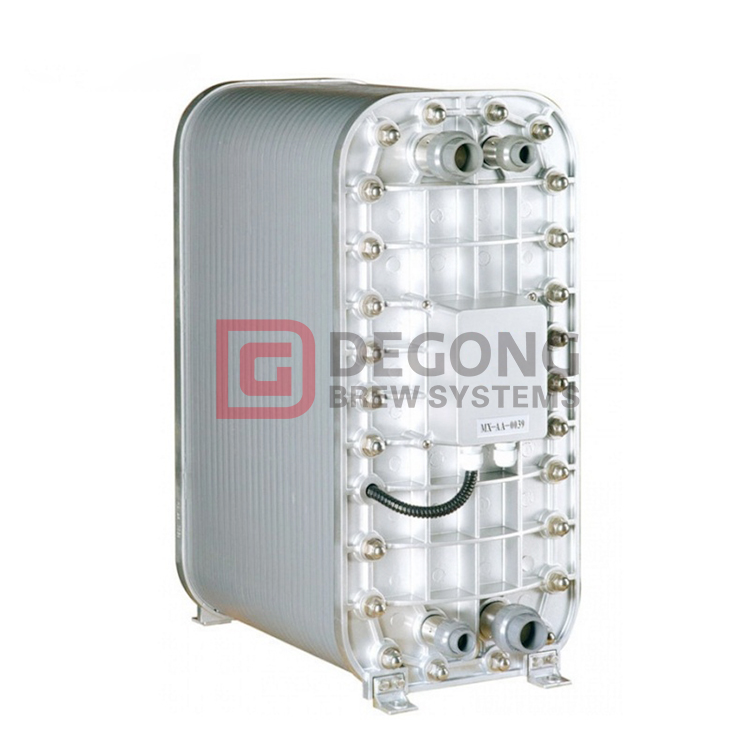

150L/H Automatic Ultrapure Water System

150L/H Ultrapure Water System

Product Introduction

Through a unique design, the incoming water passes through the fresh water chamber filled with renewable resin, so that the impurity ions in the water are adsorbed by the resin, thereby obtaining purified water. The resin is regenerated without pollution under the action of splitting water in the DC electric field, so it maintains its activity. The released impurity ions will move directionally under the action of the DC electric field, enter the concentrated water chamber through the ion selective membrane and be taken away by the concentrated water.

Such a purification process continues: purification -> regeneration -> purification..., to achieve the goal of continuous production of high-purity water.

Features

• The product water quality is high, and the product water stability is high.

• Continuous and uninterrupted water production, no shutdown due to regeneration.

• Acid-base regeneration equipment and chemical storage and transportation.

• No need for acid and alkali regeneration, no sewage discharge.

• Low operating costs and maintenance costs.

• The equipment has a compact structure and a small footprint.

• Modular production and fully automatic control can be realized.

• Simple operation and low labor intensity

Equipment water requirements

RO water produced by reverse osmosis, the conductivity is less than 20μs/cm.

pH value: 7.5-9

Temperature: 15℃--35℃

Water inlet pressure (DIN): 0.15—0.4MPa

Water hardness: <1.0ppm (calculated as CaCO) (recommended below 0 5ppm)

Influent organic matter: TOC＜0.5ppm

Influent silicon: SiO2＜0.5ppm

Total influent CO2: <3ppm

Influent particle size: <1μm

Scope of application

Catering industry: beverage，food ，dairy industry，drinking water，hotel, etc.

Manufacturing industry: glass, steel, paper, textile, etc.

Electric power industry: Boiler，Thermal power，Power generation，Cooling"，Circulation etc.

Pharmaceutical industry: Pharmaceuticals，Apparatus，Oral liquid，Finished medicine，Biological preparations, etc.

Electroplating industry: coating，lighting，cooling，metal plating，LED lights, etc.

Electronics industry: chip, circuit board, single chip microcomputer, electronic original, etc.

Optoelectronics industry: Photovoltaic, Photovoltaic, Lighting，New energy，LED lights, etc.

Energy industry: oxidation，semiconductor，silicon material，polysilicon，metal extraction, etc.

Contact us

We can customize product specifications according to your requirements. If you have any needs or questions, please contact us.
