This kind of Stainless Steel Conical Bottom Tank is mainly composed of a standard oval head, a conical bottom and a paddle mixer. The tank is equipped with an automatic rotary spray head. The jacket can pass low-temperature cooling water, the transmission part adopts mechanically sealing and the explosion-proof motor to ensure production safety. In addition, fermentation temperature control is achieved by adjusting the cooling flow of the cooling system.
|fermentation tank cooling:|
The jacket of the Stainless Steel Conical Bottom Tank is made into a component type, and the welding with the cylinder completely avoids the longitudinal and circumferential welds of the cylinder, thereby avoiding the possibility that ammonia leaks into the tank through the weld. What's more, it has the advantages of high capacity, high efficiency, low noise, simple operation, labour saving, low consumption as well as durability. The Stainless Steel Conical Bottom Tank is widely applied in food, dairy, condiment, brewing, pharmaceutical and other industries.
1. It can be cleaned automatically and sterilized more thoroughly, and is conducive to aseptic operation.
2. It adopts airtight fermentation, reducing the loss of hops bitter substances.
3. The conical bottom has a cooling jacket, it is easy to control the fermentation temperature, and is conducive to the sedimentation and preservation of the yeast.
mirror fermentation tank

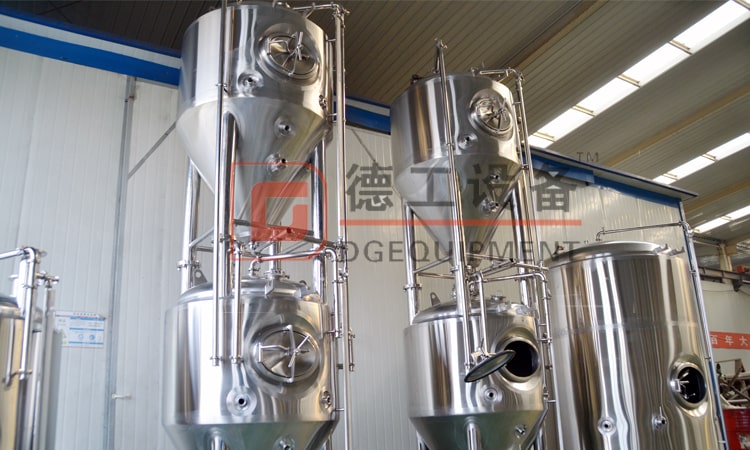

stacked beer fermeter(your space is limited)
4 stainless steel legs with leveling footpads
Interior shell: 304 stainless steel, thickness 3mm
Exterior shell: 304 stainless steel, thickness 2mm
Interior and exterior finish bright polish to 0.6μm, hygiene surface
60 degree cone bottom, other angles can be specified during the design process
Combined drain extensions and beer port in cone are standard
25% headspace, unless a different volume is requested
Top or side manway door
Dual zone in sidewall and cone dimple cooling jacket with glycol inlet and outlet
Polyurethane insulation thickness 80mm for cooling jacket on side and bottom
Fully welded exterior shell
Non welding CIP arm and rotating 360 degree reach spray ball
Ice water solenoid valve, pressure relief valve (safe valve) are standard
Pressure gauge, Temperature probe,Sanitary sample valve,mechanical regulator valve,raking arm and port
All clamps and gaskets to attach all accessories
Tank complete with piping, fittings, sanitary valves and all parts.
Carbonation port is available for special request (stone not included)
Dry hop ports and/or hop bag hooks in any fermenter of any size for special request
beer fermenter accessories

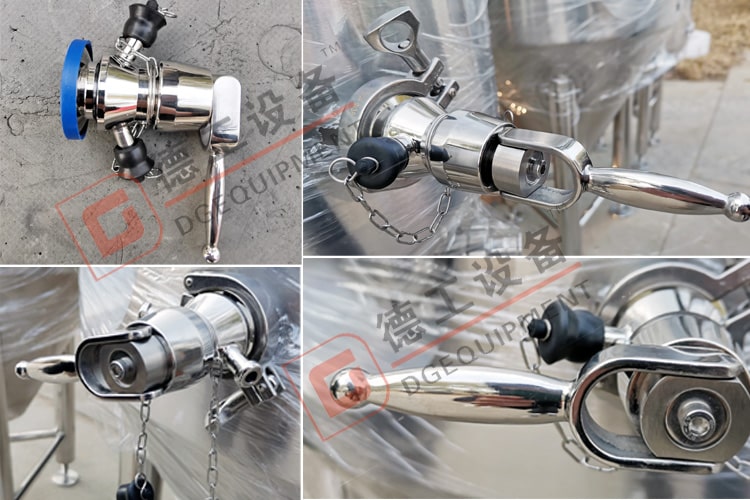

sterile sample valve(to get better beer)
