The jacket of the Stainless Steel Conical Bottom Tank is made into a component type, and the welding with the cylinder completely avoids the longitudinal and circumferential welds of the cylinder, thereby avoiding the possibility that ammonia leaks into the tank through the weld. What’s more, it has the advantages of high capacity, high efficiency, low noise, simple operation, labour saving, low consumption as well as durability. The Stainless Steel Conical Bottom Tank is widely applied in food, dairy, condiment, brewing, pharmaceutical and other industries.
|fermentation tank manhole:|
This kind of Stainless Steel Conical Bottom Tank is mainly composed of a standard oval head, a conical bottom and a paddle mixer. The tank is equipped with an automatic rotary spray head. The jacket can pass low-temperature cooling water, the transmission part adopts mechanically sealing and the explosion-proof motor to ensure production safety. In addition, fermentation temperature control is achieved by adjusting the cooling flow of the cooling system.
It can be cleaned automatically and sterilized more thoroughly, and is conducive to aseptic operation.
It adopts airtight fermentation, reducing the loss of hops bitter substances.
The conical bottom has a cooling jacket, it is easy to control the fermentation temperature, and is conducive to the sedimentation and preservation of the yeast.
4 stainless steel legs with leveling footpads
Interior shell: 304 stainless steel, 3.0mm
Exterior shell: 304 stainless steel, 2.0mm
Interior and exterior finish bright, hygiene surface
60 degree cone bottom, with 10%~20% head space
Racking port and discharge port with butterfly valve and fittings
Side manway door, shadowless
Single zone, Dual zone dimple cooling jacket with glycol inlet and outlet
Polyurethane insulation thickness 100mm for cooling jacket on side and bottom
Fully welded exterior shell
CIP arm and spray ball
Rotating racking arm
Vacuum & pressure relief valve
Tank complete with fittings, valves and all parts.

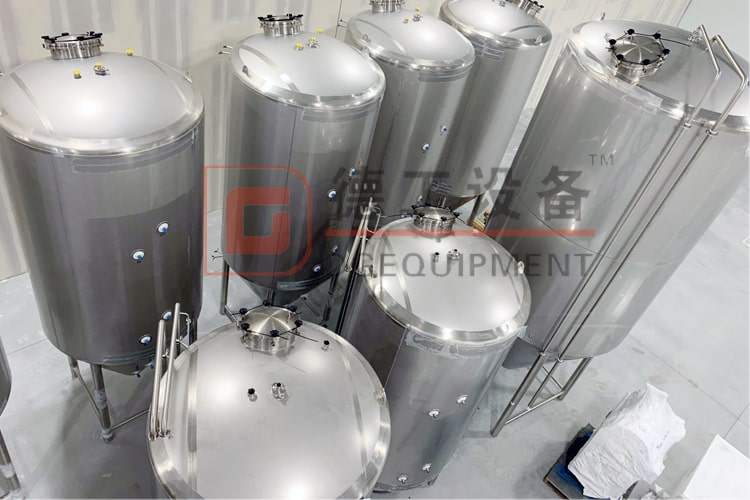

on top of the fermentation tank

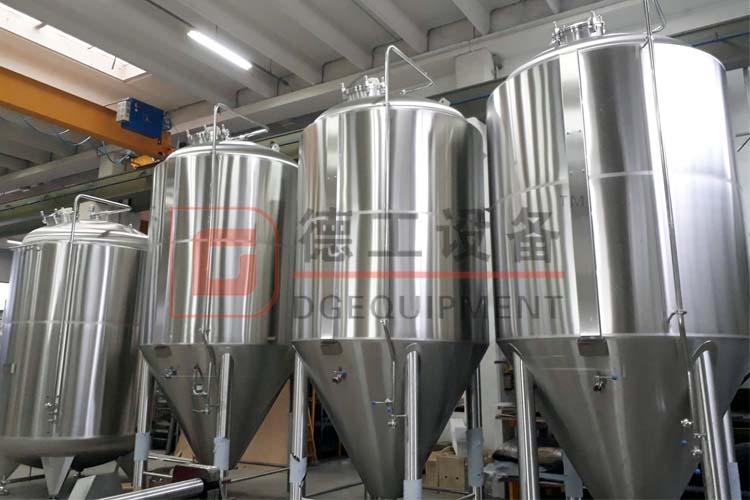

conical fermentation tank details
