1500L Stainless Steel Conical Beer Fermenter Tanks

Commercial/industrial stainless steel conical beer fermentation tank is a modular cylindrical conical tank consisting of a bottom tank and expansion fittings (valves, fittings, armatures, tools...). By selecting and using various types of expansion accessories, the storage tank can be assembled in a variety of configurations, which are most suitable for the required parts of the production process.
Availability:
Quantity:
  • DEGONG-1500L
  • DEGONG
Product Description

1500L Conical Fermentation Tanks


Product specifications

Item Specification
Gross capacity 1650L
Useful capacity 1500L
Thickness Inner (SUS304)thickness: 3.0mm; External-Jacket(SUS304) thickness: 2.0mm
Material Stainless steel 304
Cooling way Dimple jacket plate
Cleaning way CIP in situ cleaning, with rotary spray cleaning ball
Insulation Polyurethane-thickness: 80mm
Accessories Sample valve, Pressure gauge, Breath valve, Temperature gauge, Top manhole, Washing ball, Butterfly valves, CIP Arm, Hop port, Discharge arm and so on.
86

Model and parameters

Item Production capacity Volume in US Gallon Heating area Tank diameter Height
DG-500 500L/day 132 US Gallon 1.8m2 1160mm 2300mm
DG-5BBL 5BBL/day 155 US Gallon 1.9m2 1200mm 2350mm
DG-600 600L/day 158 US Gallon 2.0m2 1220mm 2350mm
DG-700 700L/day 185 US Gallon 2.4m2 1260mm 2380mm
DG-800 800L/day 212 US Gallon 2.5m2 1260mm 2400mm
DG-7BBL 7BBL/day 216 US Gallon 2.5m2 1280mm 2450mm
DG-1000 1000L/day 264 US Gallon 2.6m2 1360mm 2500mm
DG-10BBL 10BBL/day 310 US Gallon 2.8m2 1460mm 2700mm
DG-1500 1500L/day 396 US Gallon 3.2m2 1520mm 2900mm
DG-2000 2000L/day 528 US Gallon 3.6m2 1560mm 2850mm
DG-2500 2500L/day 660 US Gallon 3.8m2 1650mm 3200mm
DG-3000 3000L/day 792 US Gallon 4.5m2 1760mm 3800mm
DG-4000 4000L/day 1057 US Gallon 4.9m2 1900mm 4100mm
DG-5000 5000L/day 1320 US Gallon 7.2m2 1960mm 4400mm

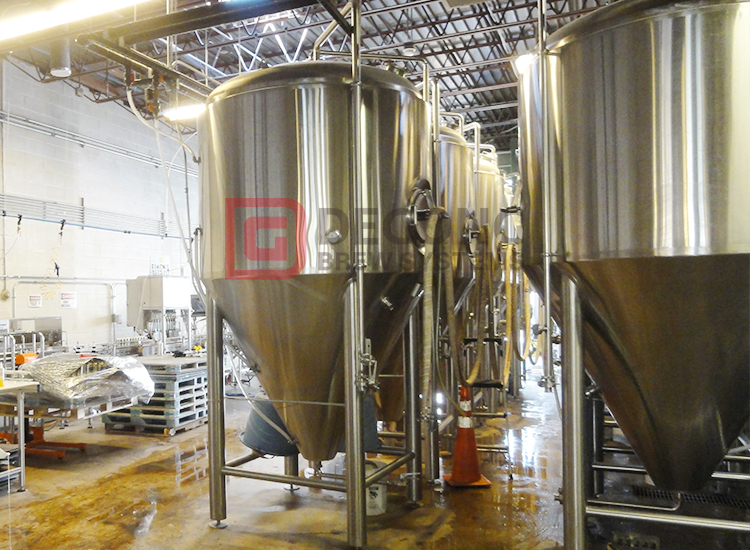

87


Feature

Made of stainless food steel

Standardized size and equipment, or according to the requirements of individual customers

Classic design, insulation, double stainless steel jacket, water (or glycol) cooling copier

Accurate temperature control and reliable CIP are the requirements to ensure the quality of finished products

The fermenter provides a side-rotating frame arm or riser design and a hop port.

If necessary, additional three-clamp accessories can be added to the carbide.

The cone angle can be changed to meet customer requirements.

857880

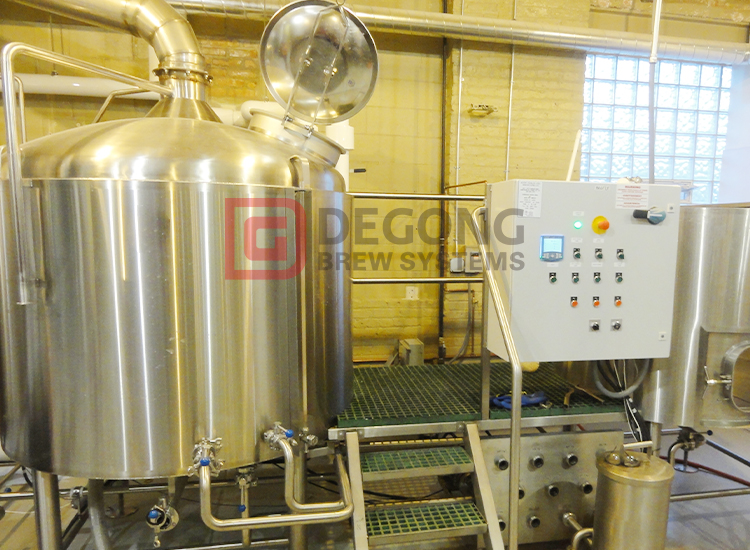

Other brewing equipment

8476

Contact us

We can customize product specifications according to your requirements. If you have any needs or questions, please contact us.
