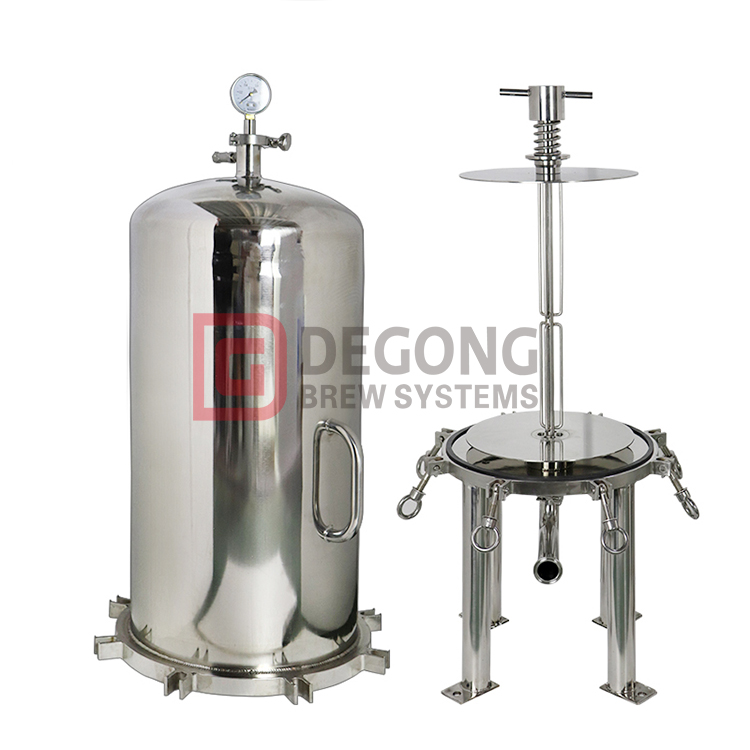

12/16inch Lens Filter Housing -316 Stainless Steel

The cylindrical lens filter housing is located on 4 legs, closed by stainless steel bolts, sealed by silicone gaskets, flat gasket adapters for modules. Available in 12-inch and 16-inch diameters, it can accommodate 2, 3 or 4 modules.
Availability:
Quantity:
  • DEGONG-12/16inch
  • DEGONG
Product Description

12/16inch Lens Filter Housing


Advantage
  • Simpler/faster setup

  • Easier/faster cleaning

  • Thanks to the sealing system, the risk of contamination/oxidation is greatly reduced

  • Due to the closed design, there is no product loss in the filtration

  • Easy to load and disassemble-no need for wetting and re-tightening

  • The housing can be loaded with at least one filter module (additional equipment is required)

  • The filter module can be backwashed and reused many times (when the backwash module and applicable hardware are used)

  • The cost of a lenticular filter system with reusable filter media is lower than other types of filters with comparable filtration capacity

  • Due to the vertical design, it takes up less space

127

Specifications & Details
12-INCH HOUSING FILTRATION SURFACE DIA x HEIGHT WEIGHT
2 Module Lenticular Filter Housing 12” 3.6 sq. meter 15.7” x 48” 165 lb
3 Module Lenticular Filter Housing 12” 5.4 sq. meter 15.7” x 58” 200 lb
4 Module Lenticular Filter Housing 12” 7.2 sq. meter 15.7” x 60” 215 lb
16-INCH HOUSING FILTRATION SURFACE DIA x HEIGHT WEIGHT
2 Module Lenticular Filter Housing 16” 10.0 sq. meter 17.7” x 48” 220 lb
3 Module Lenticular Filter Housing 16” 15.0 sq. meter 17.7” x 58” 250 lb
4 Module Lenticular Filter Housing 16” 20.0 sq. meter 17.7” x 69” 285 lb
  • Inlet/Outlet 1.5” TC

  • Instrument port 1.5” TC

  • Drain 1.0” TC

  • Exhaust port 0.25" threaded to hose barb

128

Material

316 stainless steel, sanitary construction


Surface treatment

Mirror polished Ra<0.2μ

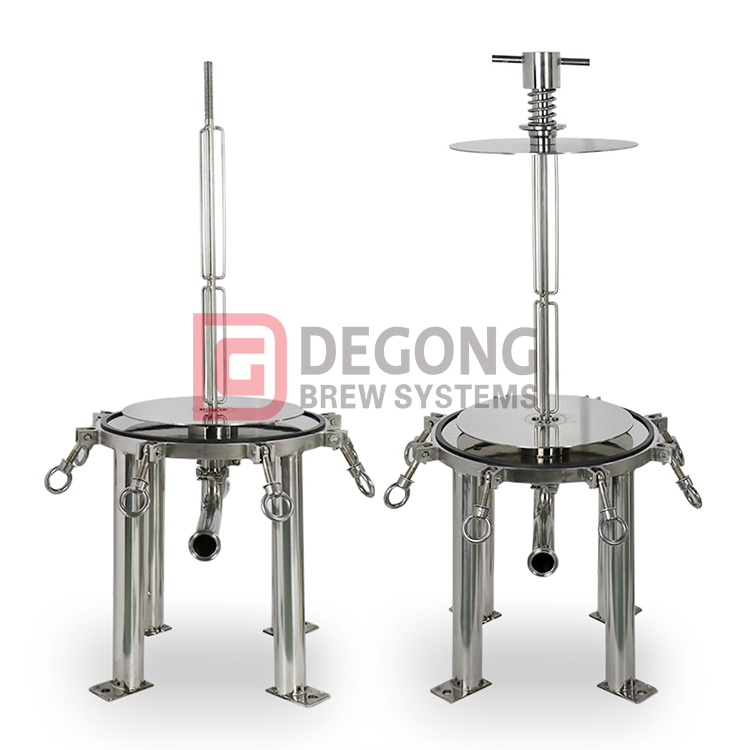

Includes (each shell)

Pressure gauge

2 butterfly valves for in/out and drain

Bottom deflection plate required for backwashing

All clips and washers

129

Contact us

We can customize product specifications according to your requirements. If you have any needs or questions, please contact us.
