10inch 20inch 30inch 40inch SUS 304/316L Sanitary Stainless Steel Water Cartridge Filter Housings

Innovative design of hygienic single-tube and multi-tube filter housings improves cleanliness and microbiological safety due to the seamless, polished and hygienic design. The electro-polished elbow and mirror-polished bowl ensure the best cleanliness of critical areas while maintaining cost-effectiveness.
Availability:
Quantity:
  • SUS 304/316L Filter Housings
  • DEGONG
Product Description

SUS 304/316L Filter Housings


Complete Stainless Steel Construction

Reduces bacterial/particle adhesion and no dead

space

Excellent corrosion resistance

Easy To Install/Easy to Clean

Easy To Install Design With Sanitary Connections,

Easy to Clean

Requires minimum floor space and quickly

dismantles for easy cleaning

Housings Accommodate

Suitable for small to large batch sizes and flow

rates

High pressure & high temperature designs are

available

Clean-in-Place (CIP) /Steam-in-Place (SIP) Design

Typical Applications

Ideal filtration equipment for food&beverage,

pharmaceutical, biotechnology,

chemical and other industries

Technical Specification

Designed Pressure:      7.2bar(104psi)with in

30mins.

Max.operating pressure: 6.0bar(87psi)

6.0bar(87psi):          Electro polished, Ra≤0.2um

Designed flow rate:     0.2-100 t/h

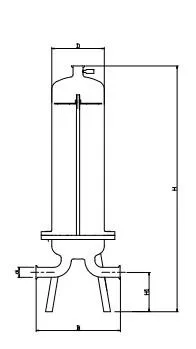

Cartridges Body Closure
Dimensions(mm)
Nos. Length d
(outlet/inlet)
D B H1 H
1 5" Ferrule clamp 1inch 102 180 120 570
10" 690
20" 940
30" 1190
3 10" Stud bolts 1 1/4 inch 184 240 180 720
20" 980
30" 1210
5 10" Stud bolts 1.5 inch 219 280 200 130
20" 990
30" 1220
40" 1460
7 20" Stud bolts 1 3/4 inch 273 420 210 1060
30" 1290
40" 1530
9 20" Stud bolts 2 inch 325 460 210 1080
30" 1310
40" 1550
12 20" Stud bolts 2 1/4 inch 350 480 240 1150
30" 1380
40" 1620
18 20" Stud bolts 3 inch 400 500 260 1160
30" 1390
40" 1630
21 20" Stud bolts 3.5 inch 450 600 280 1190
30" 1420
40" 1660


Features

  • Provide single-cylinder or multi-cylinder sanitary filter housing-1, 3, 5, 7, 9, 12, etc. round

  • Provide 5'', 10'', 20'', 30'' and 40'' ink cartridge models

  • 0.25RA electro-polished head elbow and mirror polished bowl ensure the best cleanliness of critical areas while maintaining cost-effectiveness

  • The inlet and outlet are connected from 1” to 3.5”.

  • Available in 304 or 316l stainless steel structure material

  • Sealing system can be used for 226 or 222 O-ring cylinder

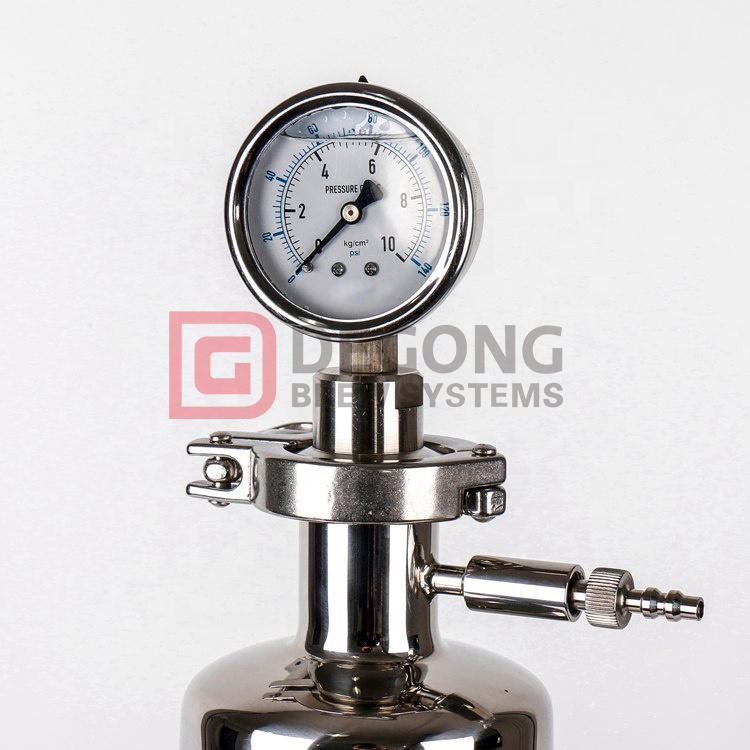

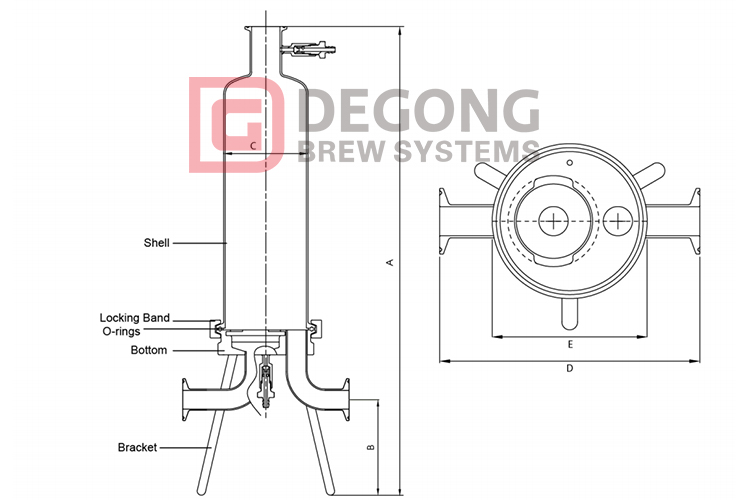

Products Show

255252257254256258


We can customize product specifications according to your requirements. If you have any needs or questions, please contact us.
