High Precision 10HP 7HP Beer And Wine Cooling Air-cooled Chiller for Glycol Tank

A typical brewery uses a brewery glycol cooler system to cool the hot wort to a lower temperature before transferring it to a fermentation tank containing yeast. This is done by passing the hot wort through a wort cooler with a plate heat exchanger, where the heat of the wort is transferred to the cold brewing water.
Availability:
Quantity:
  • High Precision Beer Water Chillers
  • DEGONG
Product Description

High Precision Beer Water Chillers

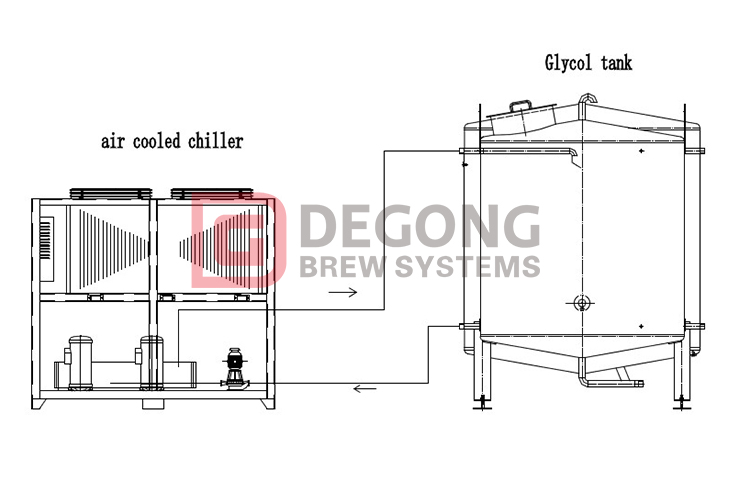

A typical brewery will use the Mgreenbelt brewery glycol cooler system to cool the hot wort to a lower temperature before transferring it to a fermenter containing yeast. This is done by passing the hot wort through a wort cooler with a plate heat exchanger, where the heat of the wort is transferred to the cold brewing water. In addition, the jacketed fermentation vessel uses a beer glycol system for cooling. We can provide a full tank temperature control package with a control device installed in the glycol cooler control panel to simplify the monitoring and control of the entire cooling process.

94

Design

  • Waterproof design, suitable for outdoor and indoor use

  • The ambient temperature of the design working condition ranges from -20C degrees to +50C degrees

  • Working conditions: A place with good air circulation can dissipate heat

  • Provide remote and local control

  • Shutdown-Support automatic startup function

  • Stainless steel inlet and outlet pipes

95

Technical data
Model
M-7CL
Cooling capacity
12.5kw( -5 deg C)
Cooling capacity
10750Klca/hr
Outlet chilled glycol temp
-5deg C ~+25 de C
Electric power supply
3phase-208v/380v/415v-50Hz/60Hz
Compressor type
Scroll type brand Copeland or Panasonic
Refrigerant type
R22 or R407c or R404a
Evaporator type
Shell and tube or Plate heat exchanger
Size
1400x800x1400mm

Features

  • Brand durable scroll compressors: Copeland, Danfoss and Panasonic.

  • Three types of evaporators support different working circuits.

   A. Tank with coiled tube, easy clearance

   B. Shell and tube type, high efficiency

   C. Brazed plate heat exchanger type (BPHE)

  • High-efficiency V-shaped condenser: spiral copper tube clad aluminum fin

  • Expansion valve: Emerson

  • Different choices of iron and stainless steel pumps

  • Optional buffer tank installed in the chiller

  • Built-in iron or stainless steel circulating water pump

  • Multiple protection devices:-Compressor internal protection, overcurrent protection, high and low pressure protection.Over temperature protection, flow switch, phase sequence/phase loss protection, low coolant level protection, antifreeze protection, exhaust gas overheating protection


Specification

Cooling capacity: 5.7kw~83.6kw

Horsepower: 5hp~50hp

Outlet temperature: -5C ~ +30C, can be adjusted on the chiller control panel

Available power supply: 3PH-208V/220V/380V/415V/460V-50Hz/60Hz


Application industry

Food and beverages-micro breweries, sweets, bakeries, breweries, breweries, bottling, saccharification, vegetable, meat and fish processing, etc. Pharmaceutical and chemical industry-jacketed container cooling, condenser cooling, PUF mixer, laboratory application, X-ray spectrometer, paint cooling, packaging machine, anodizing, electroplating, liquid nitrogen equipment, etc.

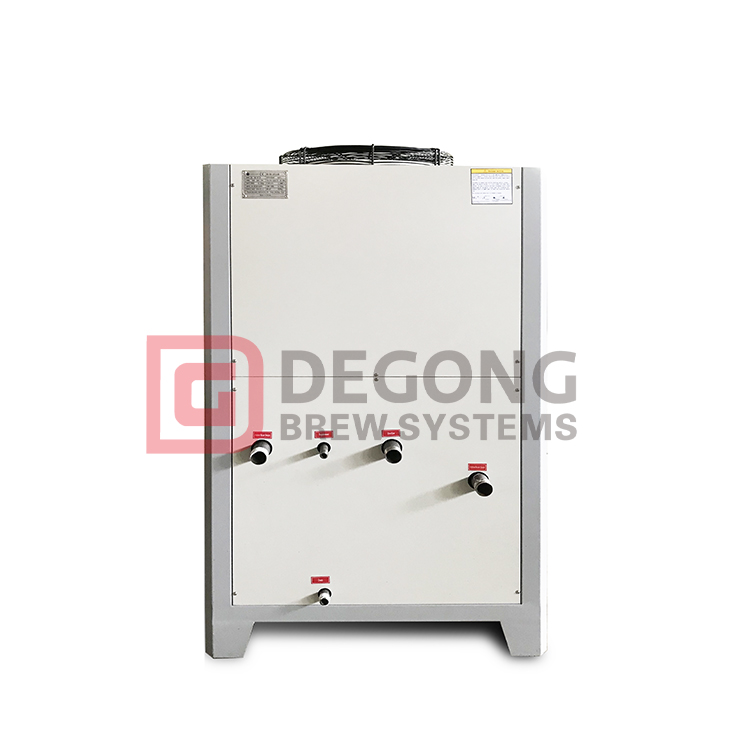

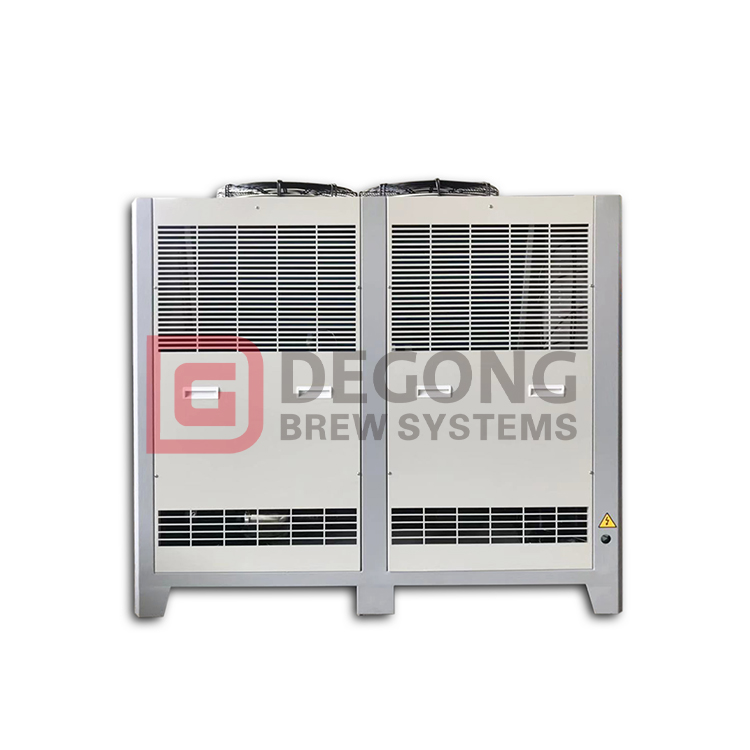

Products Show

90919392


The best quality and ex-factory price Our company has always insisted: integrity management, quality first, reasonable price, and service first are the cornerstones.

You are welcome to send us inquiries and orders.
