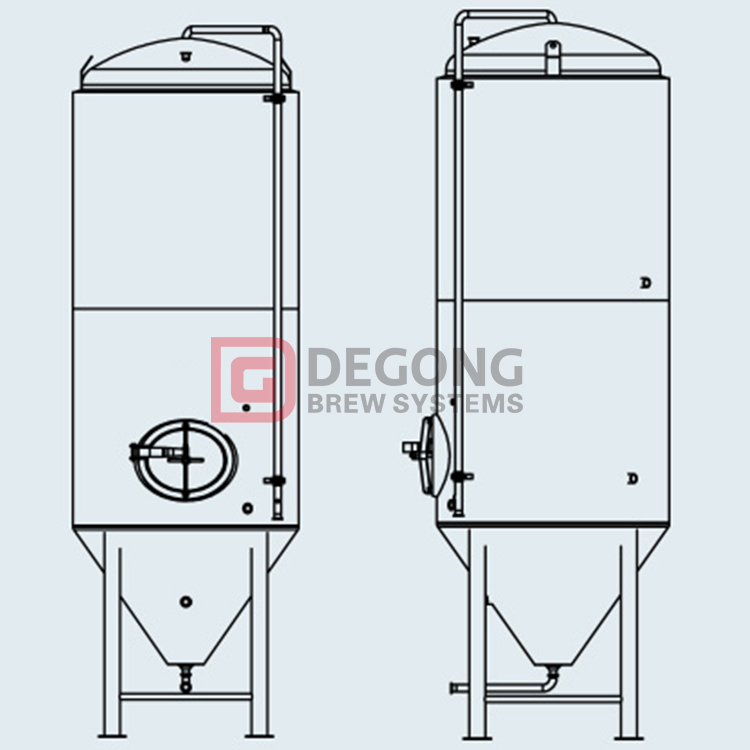

10BBL Conical Fermentation Tanks
Dual zone pit cooling jackets (three or more on large tanks)
Inner case: 304 stainless steel, thickness 3mm / 11 gauge
Cooling jacket: 304 stainless steel, thickness 2mm / 14 gauge
Housing: 304 stainless steel, thickness 2mm / 14 gauge
2” polyurethane insulation
Internal surface finish pickling and passivation
Brushed exterior, #4 finish
580x480mm side manhole, shadowless
Dry hop entry at the top;
Sampling valve x1;
Pressure relief/vacuum valve x1;
temperature. sensor/thermometer x1;
Swivel rocker arm with butterfly valve x1;
Bottom outlet with butterfly valve x1;
Spray ball with down tube x1;
Stainless steel tube legs x4 with adjustable foot pads;
|7BBL||1000 x 1250mm||2530mm||3mm|
|10BBL||1150 x 1250mm||2670mm||3mm|
|15BBL||1250 x 1680mm||3250mm||3mm|
|20BBL||1400 x 1700mm||3400mm||3mm|
|30BBL||1650 x 1850mm||3740mm||3mm|
|40BBL||1750 x 2050mm||4040mm||3mm|
|50BBL||1750 x 2750mm||4770mm||3mm|
|60BBL||1150 x 1250mm||2670mm||3mm|
|80BBL||2100 x 2900mm||5300mm||3mm|
|100BBL||2200 x 3350mm||5850mm||3mm|
DEGONG 100BBL fermentation tank
The fermentation tank is equipped with lifting ears, which is convenient for the equipment to be hoisted in place.
All tanks are equipped with adjustment bolts to ensure tank alignment and level.
The beer conveying is equipped with a rotating elbow and a pressure rod, which is convenient and flexible for conveying beer.
The clip is installed at the connection between the material opening and the bottom of the tank, and can be rotated at will, which is convenient for customers to operate.
The top of the cone and the bottom of the cylinder are designed with cooling jackets, and the cooling area is large enough.
The use of shadowless manholes is easy to clean. The top manhole can be designed according to the customer's fermentation process and brewing beer.
Equipped with safety device, positive and negative pressure opening function.
60-degree cone angle, convenient for yeast excretion.
The headspace is large, and the total volume does not include the head volume.
The fermentation tank is equipped with a special ladder, which is easy to operate.
The working platform adopts a water-leakage and anti-skid design.
Brewery manholes always use full glass manholes.
The bright bottom of the tank is outsourced to the finished product to ensure that the tank has a beautiful appearance and is sturdy and durable.
An elliptical guard plate is added at the connection between the outrigger and the refrigerant inlet pipe of the lower cone and the outer casing of the lower cone to ensure more precise machining accuracy.
DEGONG complete micro brewery equipment
The special attention we give in the final quality inspection of each work is also a guarantee of unparalleled reliability and robustness. If you have any needs or questions, please contact us.
