100L Space-saving High-quality Liquid Washing Homogenizer

The mixing container body can be heated by water cooling or steam, electricity or oil, and is dedicated to the production process. The design and manufacture of each of our mixing tanks can perfectly meet your needs.
Availability:
Quantity:
  • DEGONG-100L
  • DEGONG
Product Description

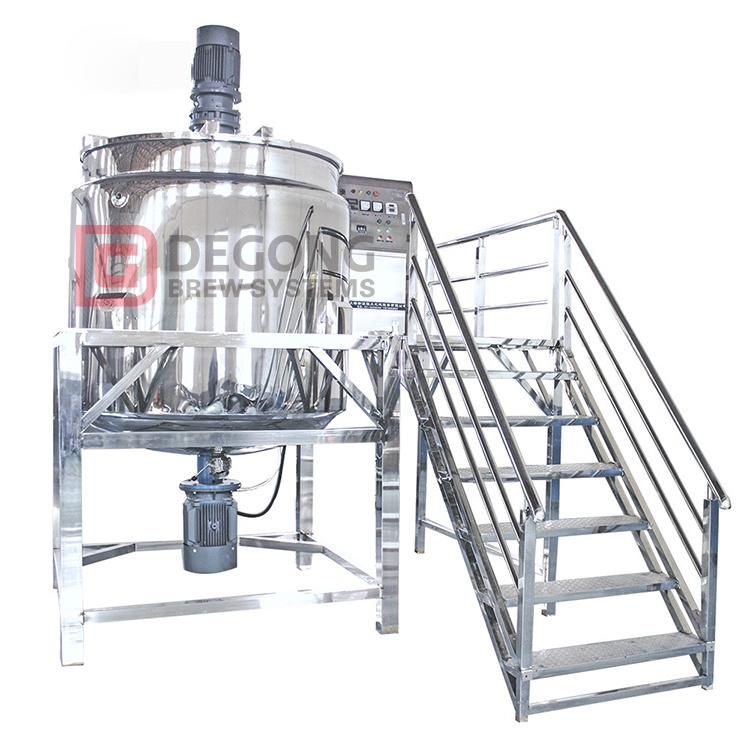

100L Liquid Washing Homogenizer


Product overview

Our mixing tank-mixing container is suitable for applications that need to dissolve or agitate liquids and solids. We always aim for the highest quality mixing performance that matches your process. The design and manufacture of each of our mixing tanks can perfectly meet your needs.


Features

  • The mixing system adopts one-way or two-way wall scraping mixing to meet different process requirements.

  • Frequency conversion speed regulation.

  • The material can be heated or cooled according to your formula (process requirements).

  • Electric heating or steam heating.

  • Various forms of mixing blades are suitable for the production of different types of products.

  • Imported sus304 or sus316L material is used, and the tank body and tube body are mirror polished.

  • Optional bottom-mounted dispersing head and fluko pipeline type emulsifying head can speed up the dissolution and emulsification of materials.

  • The stainless steel electric control cabinet can comprehensively monitor the operation of the equipment and display data such as temperature and stirring speed.


Product parameter

Item
Working Capacity
Mixing power(KW)
Mixing speed(rpm)
Homogenizer power(KW)
Homogenizing speed(rpm)
Heating method
DG-50L
50L
0.75
0-63
1.5
0-3600
Electric or steam heating
DG-100L
100L
1.1
0-63
2.2
0-3600
DG-200L
200L
2.2
0-63
3
0-3600
DG-300L
300L
2.2
0-63
3
0-3600
DG-500L
500L
3
0-63
7.5
0-3600
DG-1000L
1000L
4
0-63
11
0-3600
DG-2000L
2000L
5.5
0-63
18.5
0-3600
DG-3000L
3000L
7.5
0-63
22
0-3600
DG-5000L
5000L
15
0-63
30
0-3600


Products Show

9793961021019910098

Product details

  • Half-open hinged cover

Made in SUS304 (customizable), the lid can be opened at any time during the production process for easy cleaning

  • Internal stirring paddle

Wall scraping paddle stirring is conventionally used, and customers can customize a variety of stirring methods. The main mixing adopts a continuously variable speed device, which can reduce the formation of bubbles when the temperature is low and the viscosity is high.

  • Bottom homogenizer

Homogenizer part: The rotor and stator adopt wire-cutting precision machining high-shear homogenizer, and the emulsification is even to 2μm. The diversified high-speed homogenizer can strongly mix solid and liquid raw materials during the detergent production process to dissolve insoluble substances, save labor and shorten production time.

  • Top stirring motor

Imported Siemens motors are used, with fast speed, guaranteed quality, and a variety of power supply options. The high-speed mixer can strongly mix and disperse viscous solid and liquid materials, and quickly dissolve many insoluble materials.

  • High shear bottom homogenizer motor

Siemens homogenizer motor, high-speed shearing to obtain high-quality products

  • Electric control cabinet

SS304 stainless steel material, button control and PLC control, for customers to choose. Delixi and Chint are selected as the electrical appliances in the electric cabinet. Imported electrical appliances such as Mitsubishi and Schneider have button control, convenient operation, energy saving and shortening production cycle.

  • Export of finished products

1. Material: SUS316L

2. The newly designed bottom discharge lobe lobe pump.

There is no residue, and the discharge angle is suitable for the product to be discharged easily.

Quick connection with pipes and pumps.


Application

The liquid soap mixing tank is to mix, mix and homogenize materials to produce various liquid products. The soap dispenser mixer can be standardized and humanized according to the requirements of the production process, and is widely used in the manufacture of soap, dishwashing powder, hand sanitizer, laundry detergent, laundry powder, etc.


If you want to know more detailed information about our equipment, please contact us.
