100L CIP System for Washing Beer Brewing Equipment Brewery Cleaning System

Clean-in-place (CIP) refers to a method used to clean the inner surfaces of pipes, containers and tanks without disassembly, often without manual labor. The quality of beer produced through it. The concept of CIP in the modern brewing world is more than a convenience; in many cases, it is a necessity.
Availability:
Quantity:
  • DG-100L
  • DEGONG
Product Description

100L CIP System


Specification

Sterilization Tank

100L

1


Stainless steel

Alkali Liquor Tank

100L

1


Stainless steel

CIP Pump

Flow Rate: 5m3/h

Pump Lift: 24m

1


Stainless steel, 380V,0.75kw, inlet38 outlet 32SMS

Portable pump

Flow Rate: 3m3/h

Pump Lift: 18m

1


Stainless steel, 380V,0.75kw, inlet38 outlet 32SMS

Pipes & Valves

38/32

1



Stainless steel, sanitary grade

Control Box

200×75×120

1


Spurted plastic

Wired Hose

32, L=1.5m

1


Sanitary grade tube


358

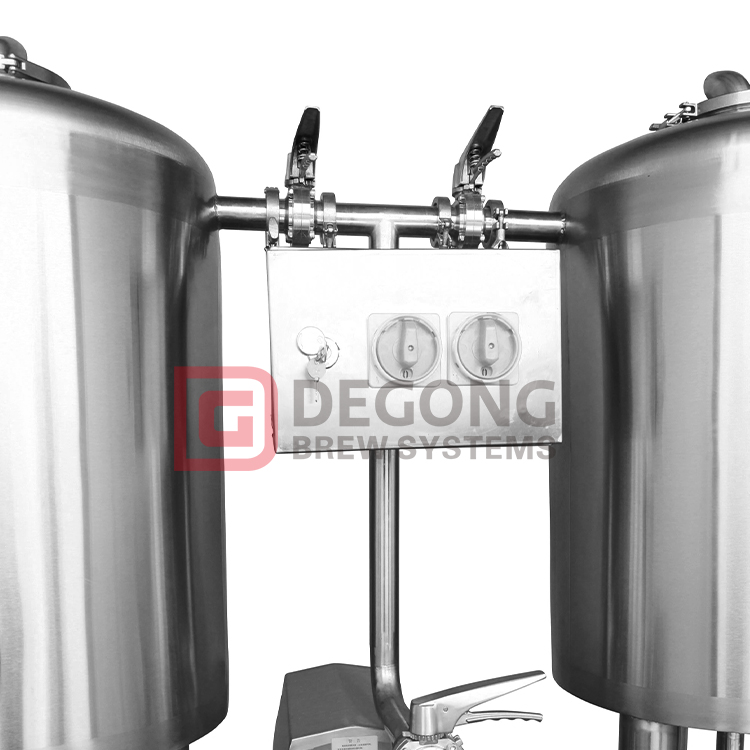

352


Alkali Liquor Tank Function:Caustic liquid heating and mixing
Shell: SUS304 full welded; TH=2mm
Exterior Finish: Oil brushed finish
Interior full polished to 0.2~0.4 μm without dead corner
Single wall without insulation
Heating: Electric (Or Steam as special request)
Cone top and bottom
Top glass porthole
Thermole meter on side wall
Sterilization Tank Function: Sterilization liquid mixing
Shell: SUS304 full welded; TH=2mm
Exterior Finish: Oil brushed finish
Interior full polished to 0.2~0.4 μm without dead corner
Single wall without insulation
Cone top and bottom
Top glass porthole

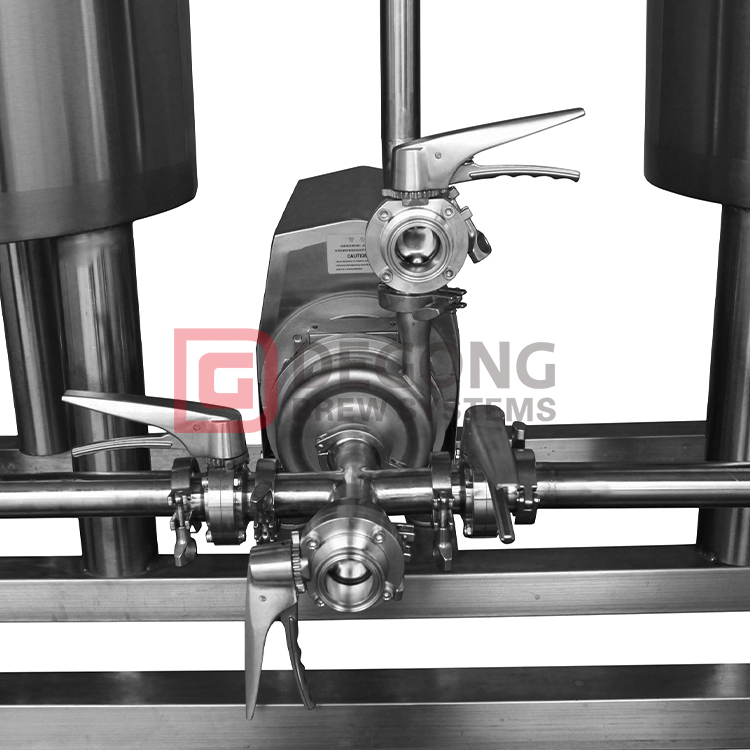

351

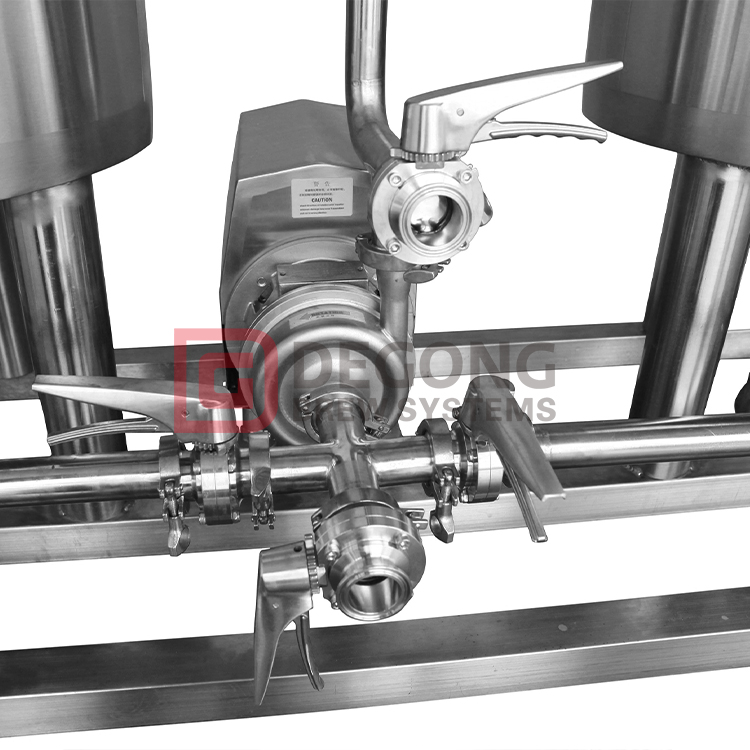

350
